94

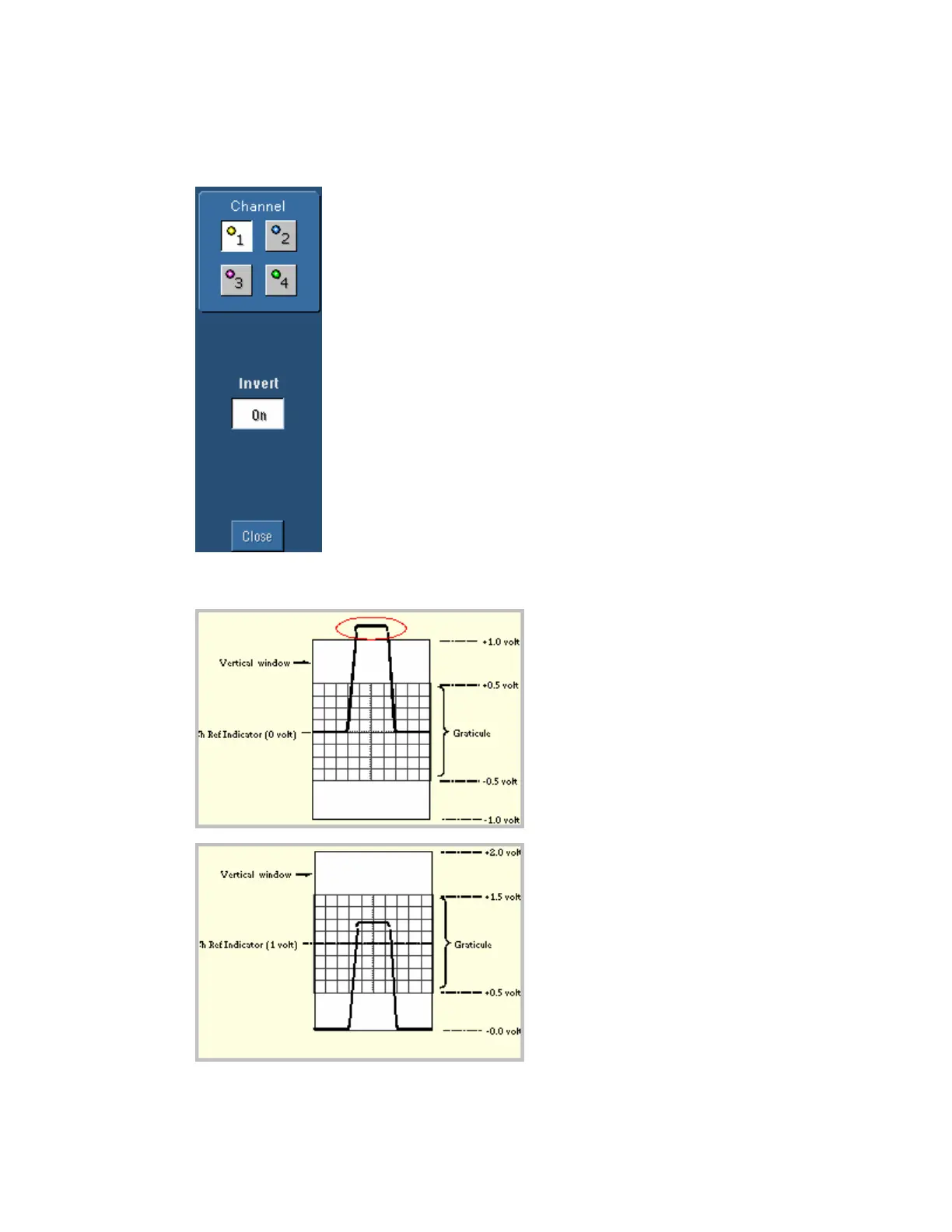

Channel Invert Control Window
Access this control window from the Vertical menu Invert command.
Overview
Use the Channel Invert control window to invert a live channel
waveform.
To Use
Click one of the channel buttons to select a valid channel. Click Invert
to toggle inversion of the selected waveform.
Behavior
When Invert is On, the selected waveform appears mathematically
inverted (flipped) on the zero volt axis. No trace of the normal
waveform is left on the screen.
Using Offset to Avoid Clipping Signals
Clipping
The circled portion of the
incoming waveform is clipped,
and therefore, is not acquired.
The clipped portion cannot be
processed or displayed.
Offset can move the acquisition
window vertically relative to
the incoming waveform.
Offset removes clipping
By setting an offset to vertically
shift the acquisition positive
relative to the waveform, the
clipped portion can be acquired.
Position, which up to now has
been unchanged, can be used to
position the graticule anywhere
in the acquisition window.
To Next Page
