Here are some tips for working with screen text:
Position the text on the screen by clicking and dragging the text to the desired location on the
graticule.

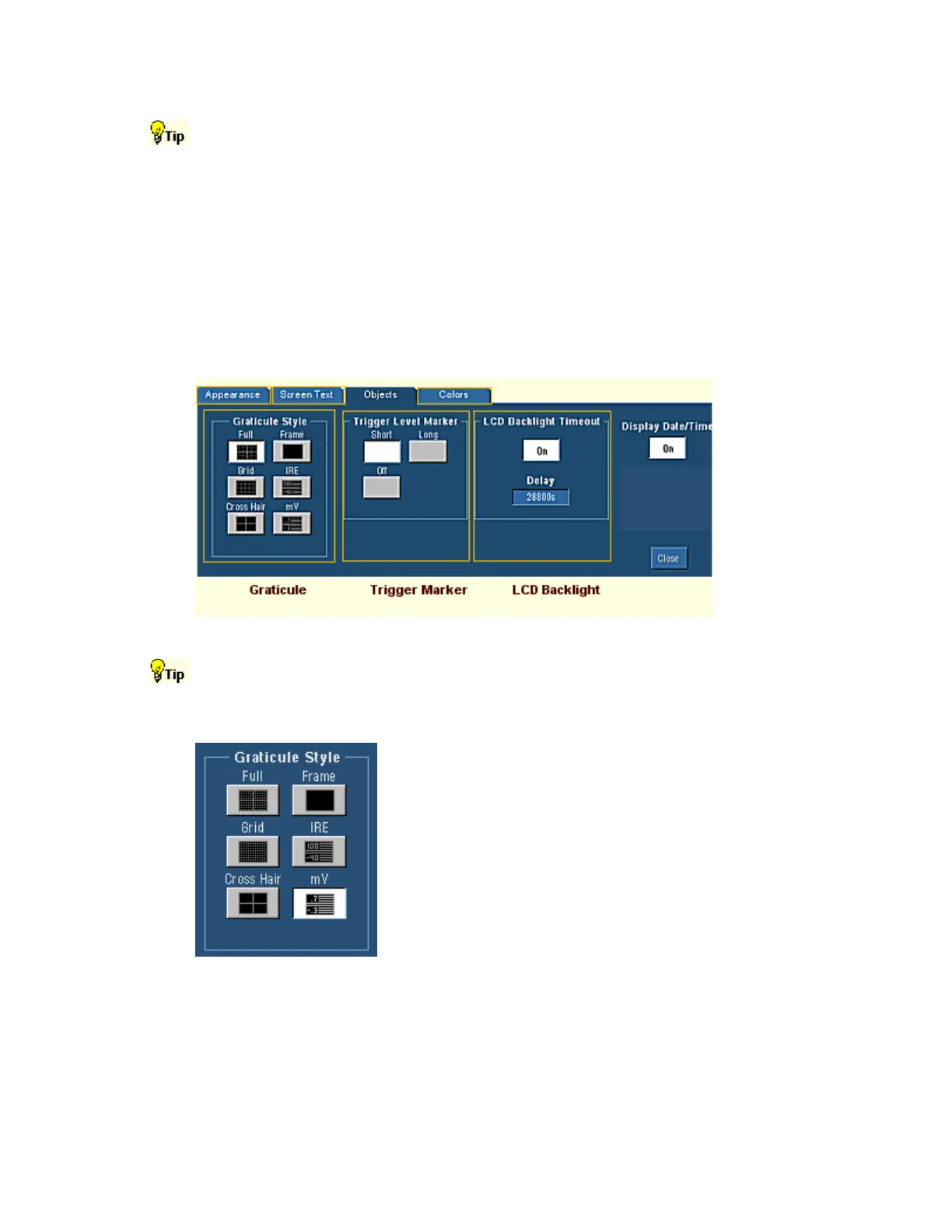

Display Setup Control Window (Objects Tab)
Access this control window from the Display menu Objects command, or from the Display Setup
control window.
Overview
Use the controls on the Objects tab to change the appearance of objects on the display.
Click Display Date/Time to show the current date and time on the graticule.
Use the Display menu Display Date & Time command to directly toggle the date/time display.
Graticule Style
To Use
Click one of the buttons to select the graticule (display grid)
style.
Behavior
Full provides a grid, cross hairs, and frame on the instrument
display. Use Full to make quick estimates of waveform
parameters. Grid shows a frame and a grid on the instrument
display. This style is useful for making quick, full-screen
measurements with cursors and automatic readouts when
cross hairs are not needed.
Cross Hair shows cross hairs and a frame on the instrument display. This style is useful for
making quick estimates of waveforms while leaving more room on the display for automatic
readouts and other data.
Frame shows only a frame on the instrument display. This style is useful with automatic readouts
and other screen text when other display features are not needed.
