279

Hanning, Kaiser-Bessel, and Blackman-Harris

Windows

These windows have various resolution bandwidths and scallop losses (see the figures below).

Choose the one that best allows you to view the signal characteristics you are interested in. The

Blackman-Harris has a low amount of energy leakage compared to the other windows. The

Hanning has the narrowest resolution bandwidth, but higher side lobes.

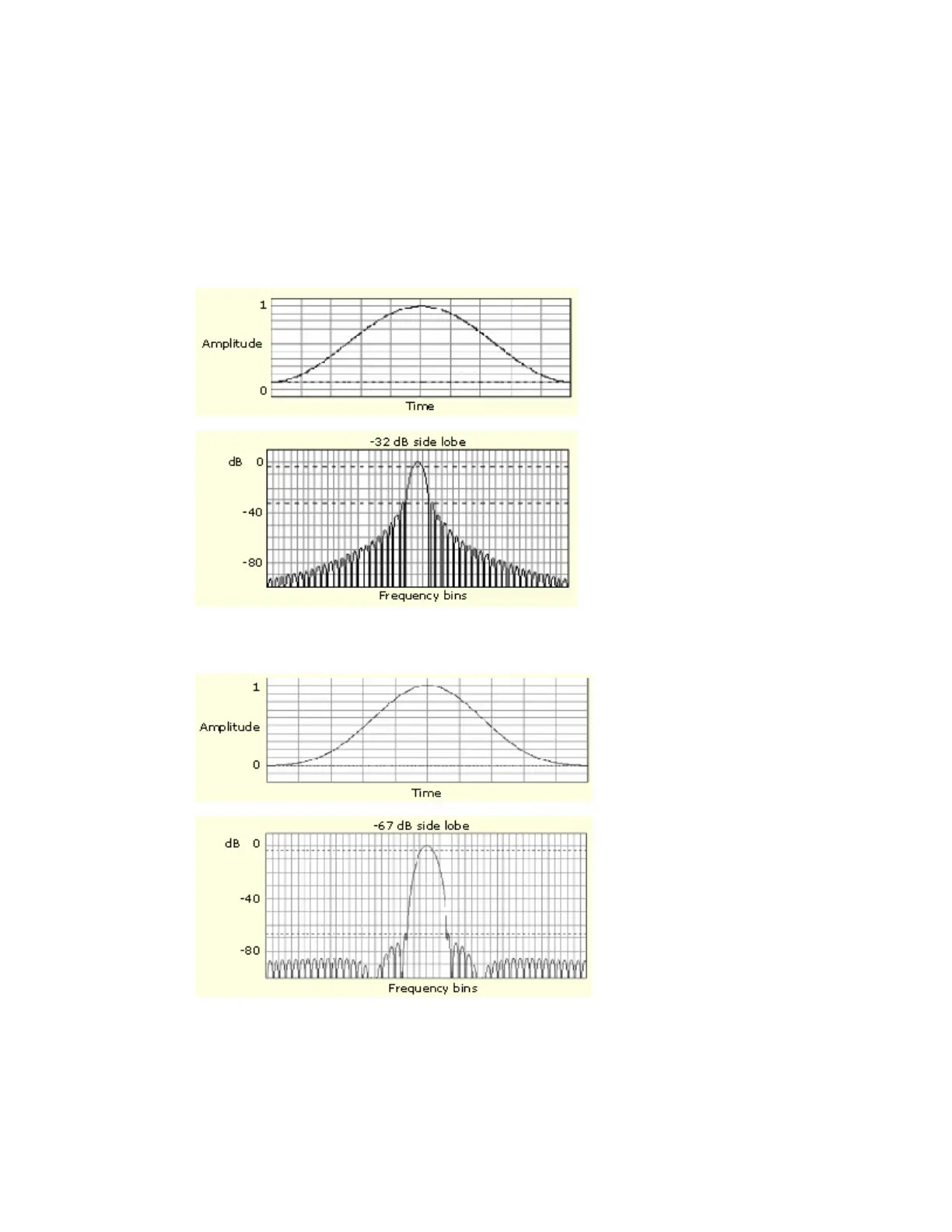

Hanning window

Kaiser-Bessel window
