160

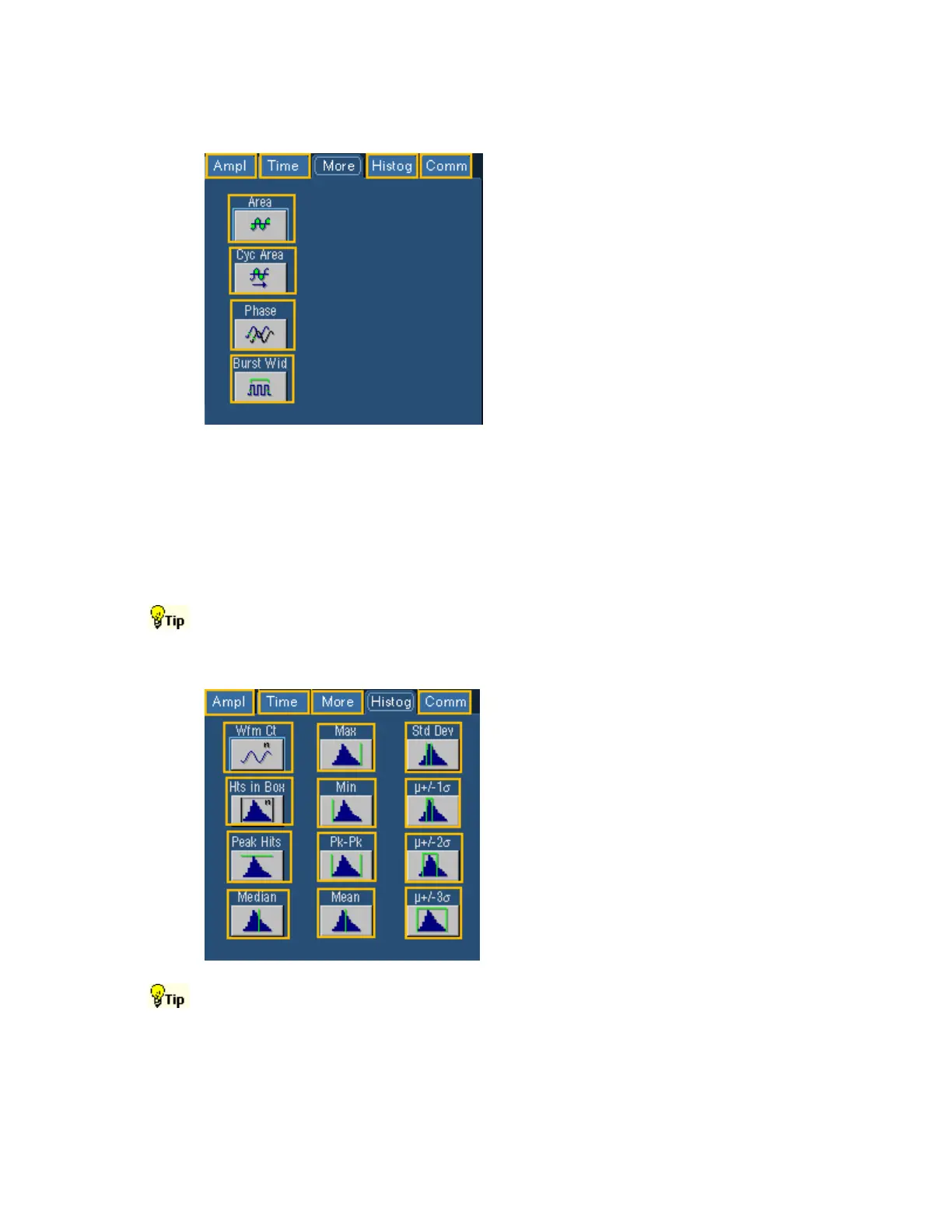

Measurement Tabs: More
To Use
Use the More tab to select measurements
not found under any of the other
measurement tabs. Select a source channel
from the Channel Selector tabs, and click a
measurement button to add the
measurement to the Measurement list. Click
Display in the upper-right corner of the
control window to turn the measurement
display on and off.
Behavior
Measurements are updated approximately three times a second, or less for long record lengths.
Measurements are calculated after each acquisition. You can display up to eight automatic
measurements.
A new control window opens when you click Phase. Enter the parameters for the phase
measurement and click Ok to return to the Measurement Setup control window. The phase
measurement is added to the list.
Select the individual measurements directly from the Measure menu More submenu.
Measurement Tabs: Histogram
To Use
Use the Histog tab to select automatic
histogram measurements. Click a
measurement button to add the measurement
to the Measurement list. Click Display in the
upper-right corner of the control window to
turn measurement display on and off.
Behavior
Measurements are updated approximately
three times a second, or less for long record
lengths. Measurements are calculated after
each acquisition. You can display up to eight
automatic measurements.
You can also select the individual measurements directly from the Measure menu Histogram
Measurements submenu.
