77
Vertical Menu
Use the Vertical menu options to set vertical parameters for waveforms. This menu also provides
access to the Zoom controls and the probe calibration, deskew, and attenuation functions.

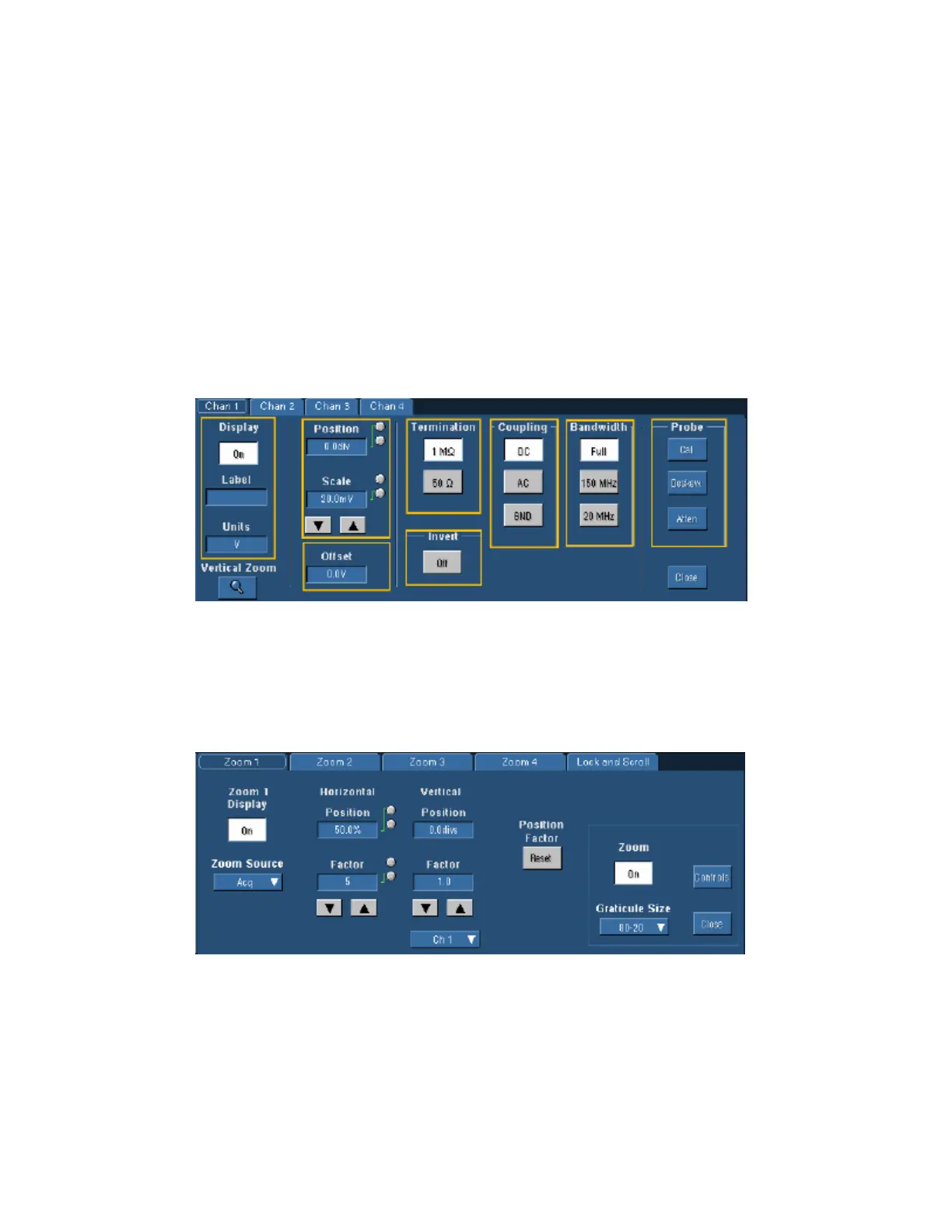

Vertical Setup Control Window
Access this control window from the Vertical menu Vertical Setup command, or the Vert toolbar button.
Overview
Use the Vertical Setup control window to set the vertical parameters for live (channel) waveforms.
The controls for each channel are independent. Use the tabs at the top of the control window to
select the channel you want to change.
Zoom Setup Control Window
Access this control window from the Vertical or Horiz/Acq menu Zoom Setup command.
Overview
Use the Zoom Setup control window to define the overall settings of the Zoom controls.
To Use
Click the Zoom 1 – 4 tabs to set up each zoom area. The controls under each tab apply only to that
zoom area. Click the Zoom (1-4) Display On to turn on the display of that area. (MultiView Zoom
must also be turned on to display any of the zoom areas.) Use the Zoom Source drop-down list to
select a source for the zoomed area. Click the Zoom button On to turn on Zoom. You can also
toggle Zoom on and off with the MultiView Zoom button on the front panel.
To Next Page
