Overview
This document provides operating information and specifications for the Tektronix THDP0100/0200 and TMDP0200 high voltage differential
probes. The probes share similar functions, properties, and operating procedures, and are discussed first, followed by the specifications,
which differ by probe model. Service procedures include performance verification and adjustments.
WARNING: Only use the accessories that are designed for your probe and that are rated at or above the voltages you are
measuring.
Name Bandwidth Peak voltage range Oscilloscope interface
THDP0100 100 MHz 600 V/6000 V TekVPI
THDP0200 200 MHz 150 V/1500 V TekVPI
TMDP0200 200 MHz 75 V/750 V TekVPI

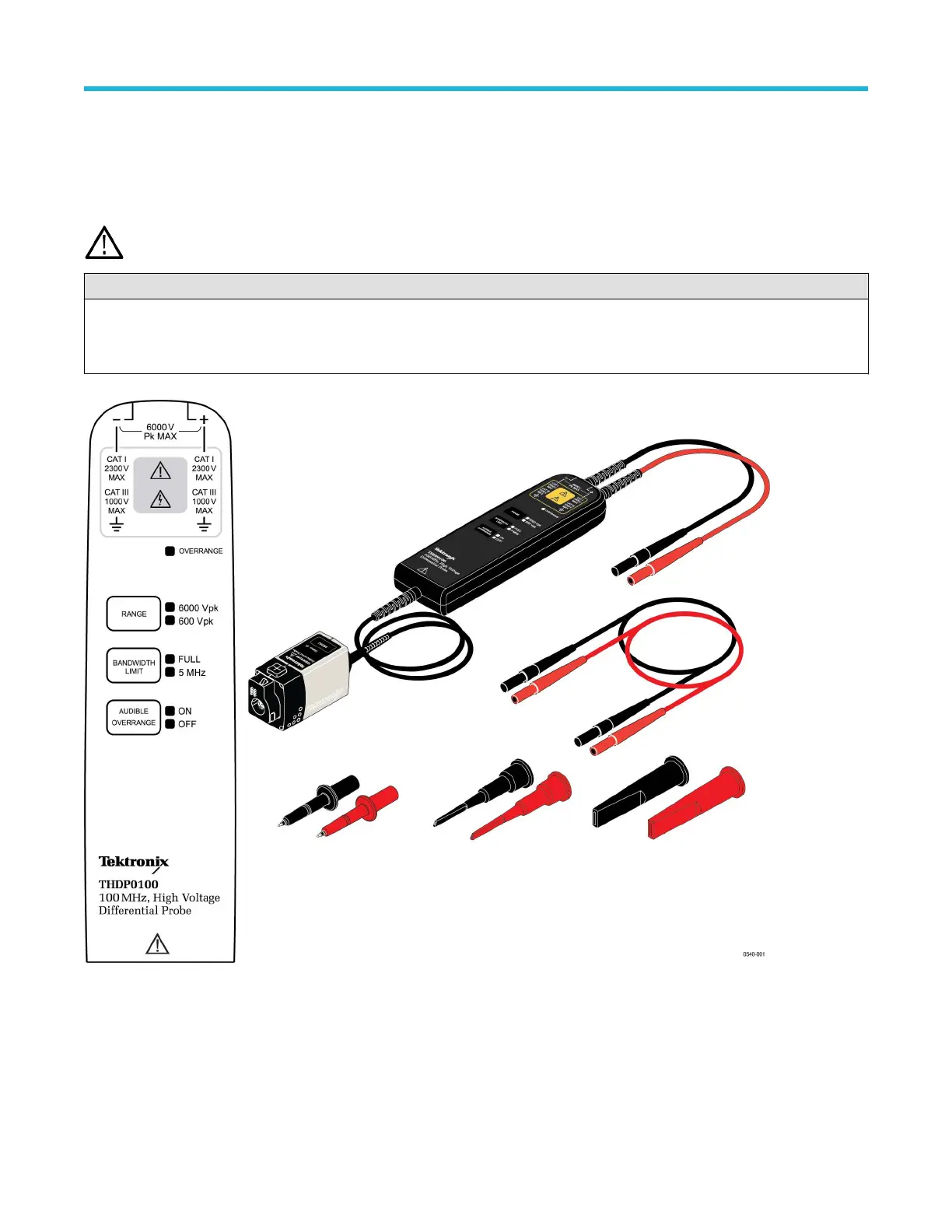

Figure 1: THDP0100 probe with accessories
Overview
High Voltage Differential Probes THDP0100/0200 and TMDP0200 User Manual 11
