Probe Generator output
Model Range Voltage (p-p) Frequency
THDP0200 150 V 50 V 10 kHz
TMDP0200 75 V 50 V 10 kHz
7. Enable the generator output. Set the oscilloscope vertical to display the signal.

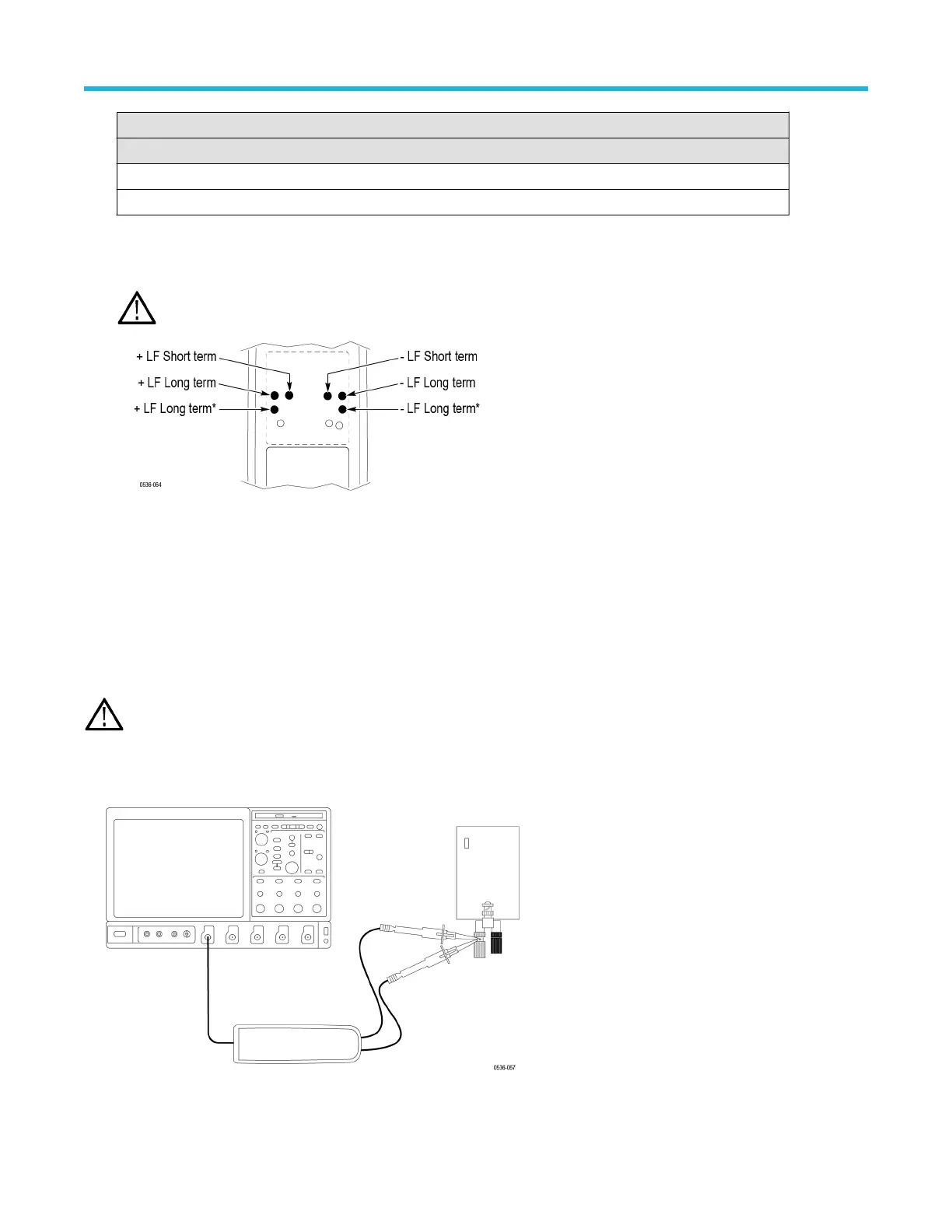

8. Make the adjustments in the following order: long-term +LF
, long-term +LF*, short-term +LF. (The long-term +LF* adjustment is not
used in the TMDP0200 probe.) Repeat this sequence as necessary to optimize the square-wave response.
WARNING: Use only an insulated tool to make the adjustment. Failure to do so presents a potential shock hazard.
9. Disable the generator output.
10. Reverse the probe input leads to the generator
.
11. Invert the signal and trigger slope on the oscilloscope to display the rising edge of the signal. Adjust the trigger level if necessary.
12. Enable the generator output and make the adjustments in the following order: long-term –LF, long-term –LF*, short-term –LF. (The
long-term –LF* adjustment is not used in the TMDP0200 probe.) Repeat this sequence as necessary to optimize the square-wave
response.
AC CMRR
WARNING: Dangerous voltages will be present on the calibration generator output terminals and connection cables. Always verify
that the generator is in the standby mode before you make any connections to the generator
.
1. V
erify that the generator output is off.
2. Connect both of the probe inputs to the red (+) banana connector on the front output of the generator. Use a BNC-banana adapter if
necessary.
3. Set the output of the generator to 297 V
p-p
(105 V
rms) @100 kHz.
Adjustments
High Voltage Differential Probes THDP0100/0200 and TMDP0200 User Manual 59
