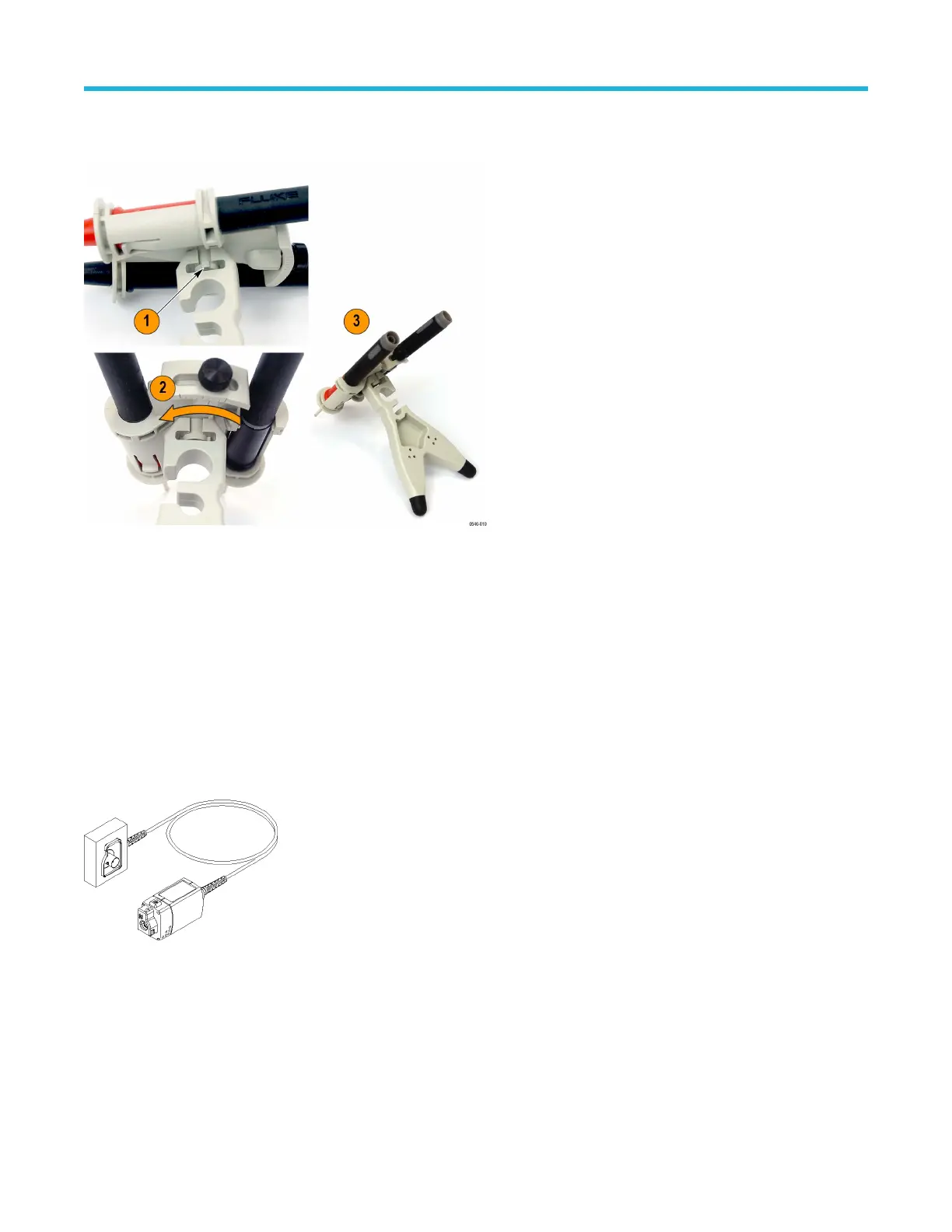

2. Rotate the browser 90°.
3. Position the probe tips on your test points so that you can set the holder on a stable surface.
One THV-Browser is included with the probes.
Reorder T
ektronix part number: THV-Browser
THDP and TMDP Series probes optional accessories
TekVPI Calibration Fixture
This calibration fixture is required to complete a performance verification and adjustment procedures on the probe. It provides power to the
probe and routes the probe output signal through an SMA connector on the back of the fixture.
The signal can then be measured with another instrument, (for example, a precision DMM), to check and adjust probe qualities such as
gain accuracy.
Order Tektronix part number: 067-1701-xx
Accessories and options
High Voltage Differential Probes THDP0100/0200 and TMDP0200 User Manual 33
