Accessories and options
Descriptions and instructions on how to use the standard accessories and options with your probe. See tek.com for the latest ordering
information.
THDP0100 probe standard accessories
WARNING: T
o avoid risk of electric shock or fire, do not use the THDP0100 test probe or hook tip accessories on CAT III or
CAT IV circuits. Refer to the ratings tables in the Accessories section of the manual. See Voltage derating for THDP0100 probe
standard accessories .
To avoid risk of electric shock or fire, when using the THDP0100 test probe or hook tip accessories with the THDP0200 and
TMDP0200 probes, do not use on circuits above 1000 V.
Use only accessories that are rated for the application. Substitution of other accessories may create a shock or burn hazard. Keep
the probe body and accessories clean to reduce the risk of shock due to surface conduction.

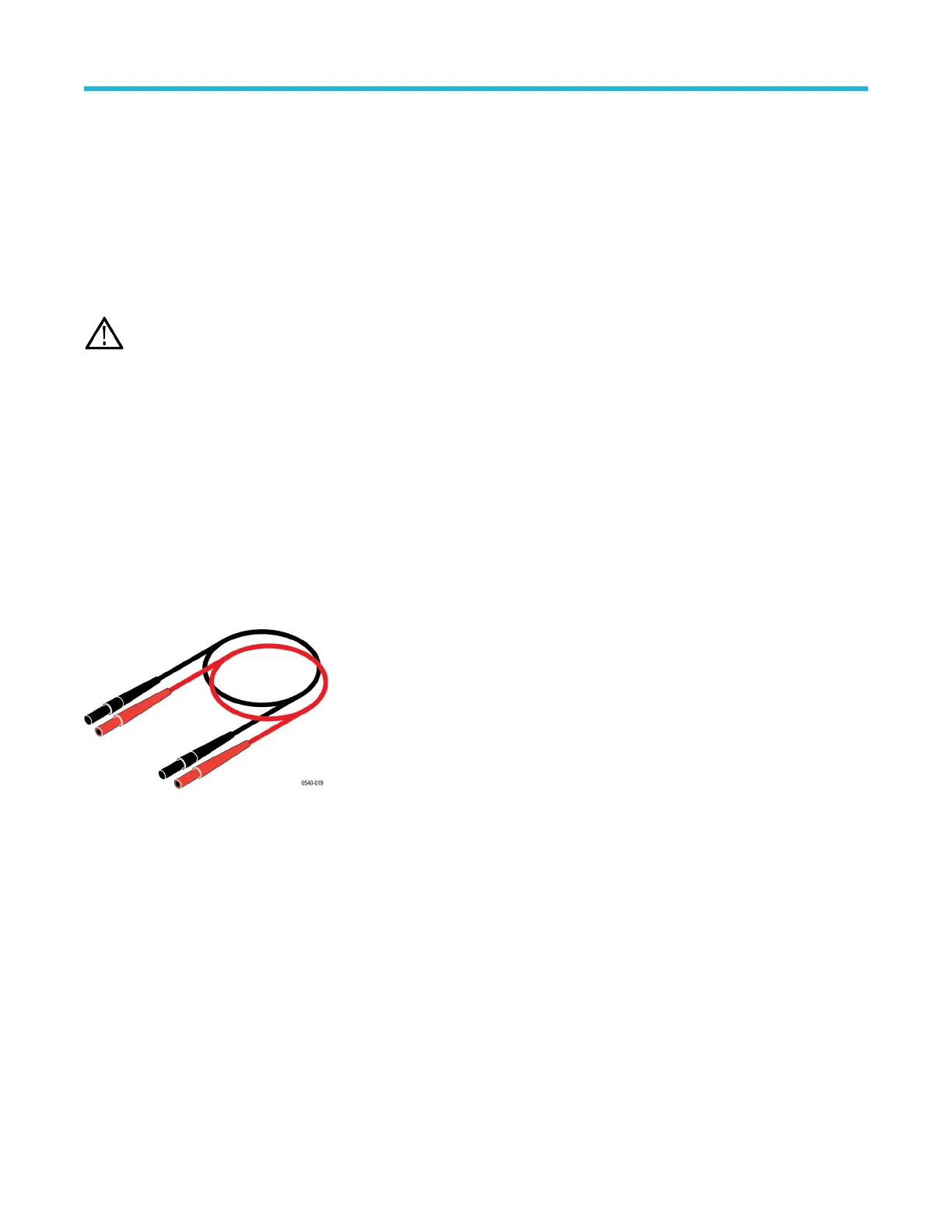

Extender Leads
These leads extend the reach of the probes by 1.0 m, which allow you to reach connections as far as 3.5 m apart. Be sure to use both
extension leads so that the input leads are the same length.
However
, with longer lead length, differential noise induced into the input leads is greater. Also, because of the added inductance of the
leads, voltage measurements at frequencies above approximately 10 MHz may not be as precise. For best performance, use the 20 MHz
or lower-bandwidth filter on your oscilloscope.
The male banana-plug ends connect to the test probes that are included with the probes.
One pair of extender leads are included with the probes.
Maximum ratings: 1000 V CAT III
600 V CA
T IV
Reorder Tektronix part number: 196-3523-xx
Accessories and options
22
