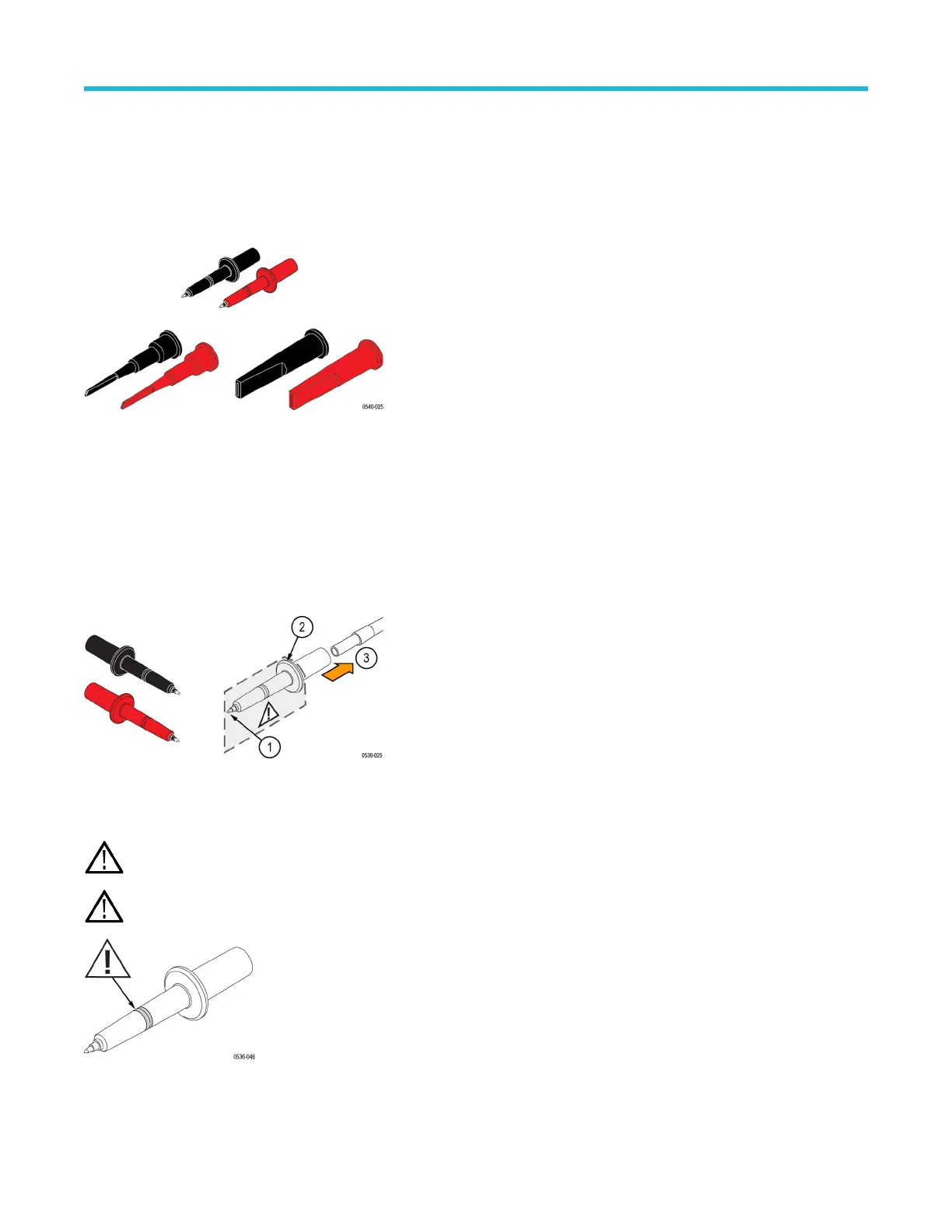

THDP0100 Probe Accessory Kit
Kit includes one pair of each of the accessories shown on the following pages:
•
Test Probes (TATP)
• Small Hook Tips TASH)
• Large Hook Tips (TALH)
Reorder Tektronix part number: 020-3070-xx
T
est Probes (TATP)
Use the test probes to browse multiple test points or to connect the test leads to the hook tips.
1. The test probe tip is a 6-32 threaded post that accepts the large and small hook tips provided with the probe.
2. The finger guard provides protection when the hook tips are not being used. Keep your fingers behind the finger guard whenever
possible to reduce the risk of a shock from the circuit under test.
3. Connect the back end of the test probe to the input test leads of the probe.
Maximum ratings: 2300 V CAT I. See the Specifications for the Over-V
oltage Transient (OVT) rating for the probe that you are
using. Typical characteristics on page 40.
1000 V CAT II
WARNING: T
o prevent arc flash, use caution when probing circuits with raised components. Avoid getting the metal shell between
components of different potentials. Use the small hook tip (TASH) for probing in hard to reach areas.
WARNING: To prevent arc flash, do not use the test probe or hook tips on CAT III circuits. To probe CAT III circuits, use the
AC280-FL, AC283-FL, or AC285-FL accessories.
Accessories and options
High Voltage Differential Probes THDP0100/0200 and TMDP0200 User Manual 23
