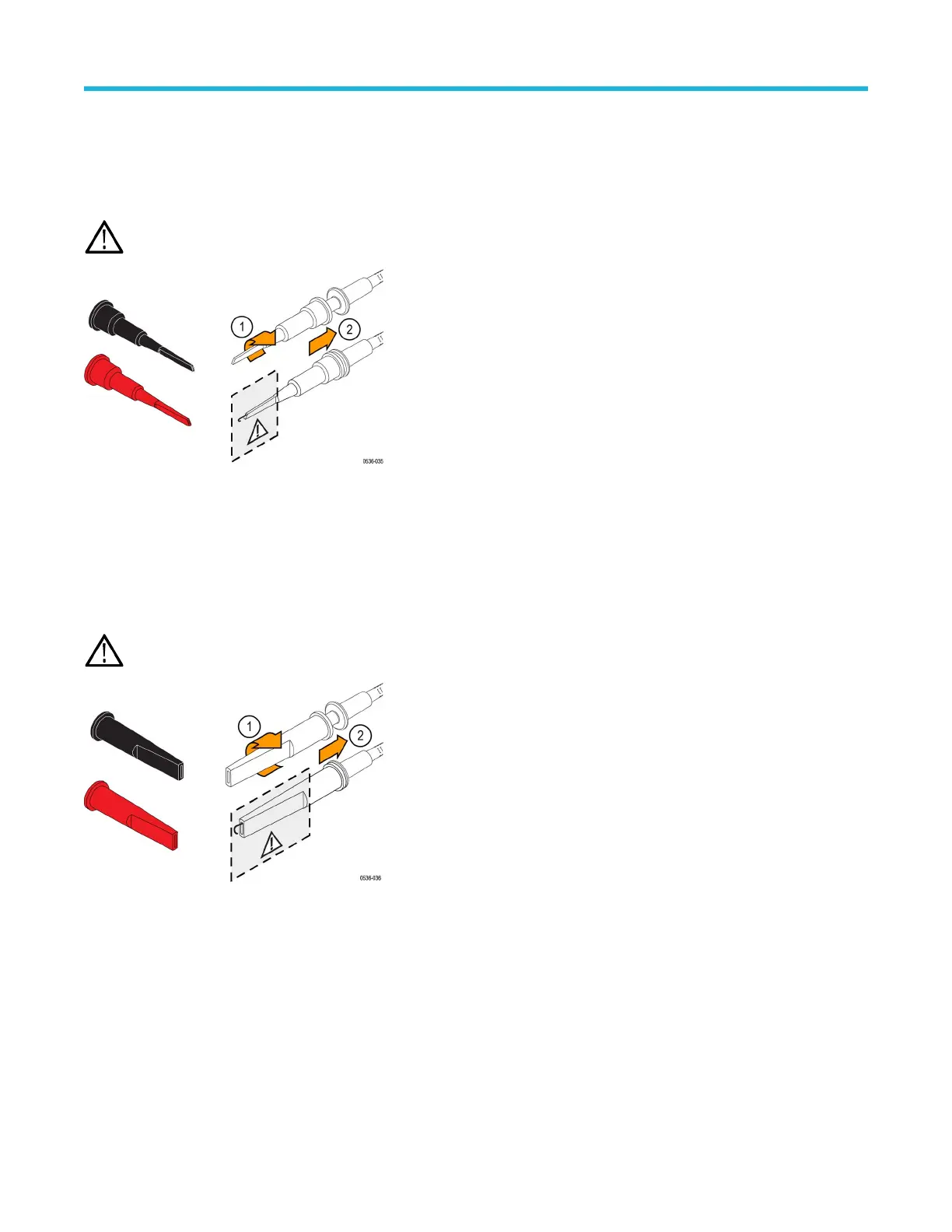

Tektronix THDP0100 User Manual

Small Hook Tip (TASH)
Use the small hook tip for making connections to small conductors such as component leads.
Screw the small hook tip onto the T
ATP test probe. To use the hook tip, hold the probe body and pull the tip shield back. Hook the tip onto
the circuit and release the shield.
WARNING: T
o reduce the risk of shock when measuring voltages above 1000 V, always keep your fingers behind the tactile
indicator.
Maximum ratings: 2300 V CAT I. See the Specifications for the Over-Voltage Transient (OVT) rating for the probe that you are
using. Typical characteristics on page 40.
1000 V CAT II
Large Hook Tip (TALH)
Use the large hook tip when working with larger components such as bolt terminals and bus bars typically found in power distribution
equipment. Screw the large hook tip onto the T
ATP test probe and then clamp the hook tip onto the circuit.
WARNING: T
o reduce the risk of shock when measuring voltages above 1000 V, always keep your fingers behind the tactile
indicator.
Maximum ratings: 2300 V CAT I. See the Specifications for the Over-V
oltage Transient (OVT) rating for the probe that you are
using. Typical characteristics on page 40
1000 V CAT II.
Accessories and options
24
