Accessing the internal adjustments
Note: Only probes with serial numbers C020000 and above have internal adjustments. Probes with serial numbers C019999 and
below that require adjustments (other than of
fset zero) must be returned to Tektronix for service.
WARNING: The remaining adjustments for the probe require you to remove a reusable label from the back of the probe. Y
ou must
replace the label after you complete the probe adjustments. Failure to do so may subject the user to high voltages present in the
probe during measurements. If you need a replacement label, refer to the Equipment Required table for the Tektronix part number.
See Table 14 on page 52.
Remove the reusable back-panel label shown below to gain access to the adjustments. Store the label in a safe place to preserve the
adhesive backing for reuse.

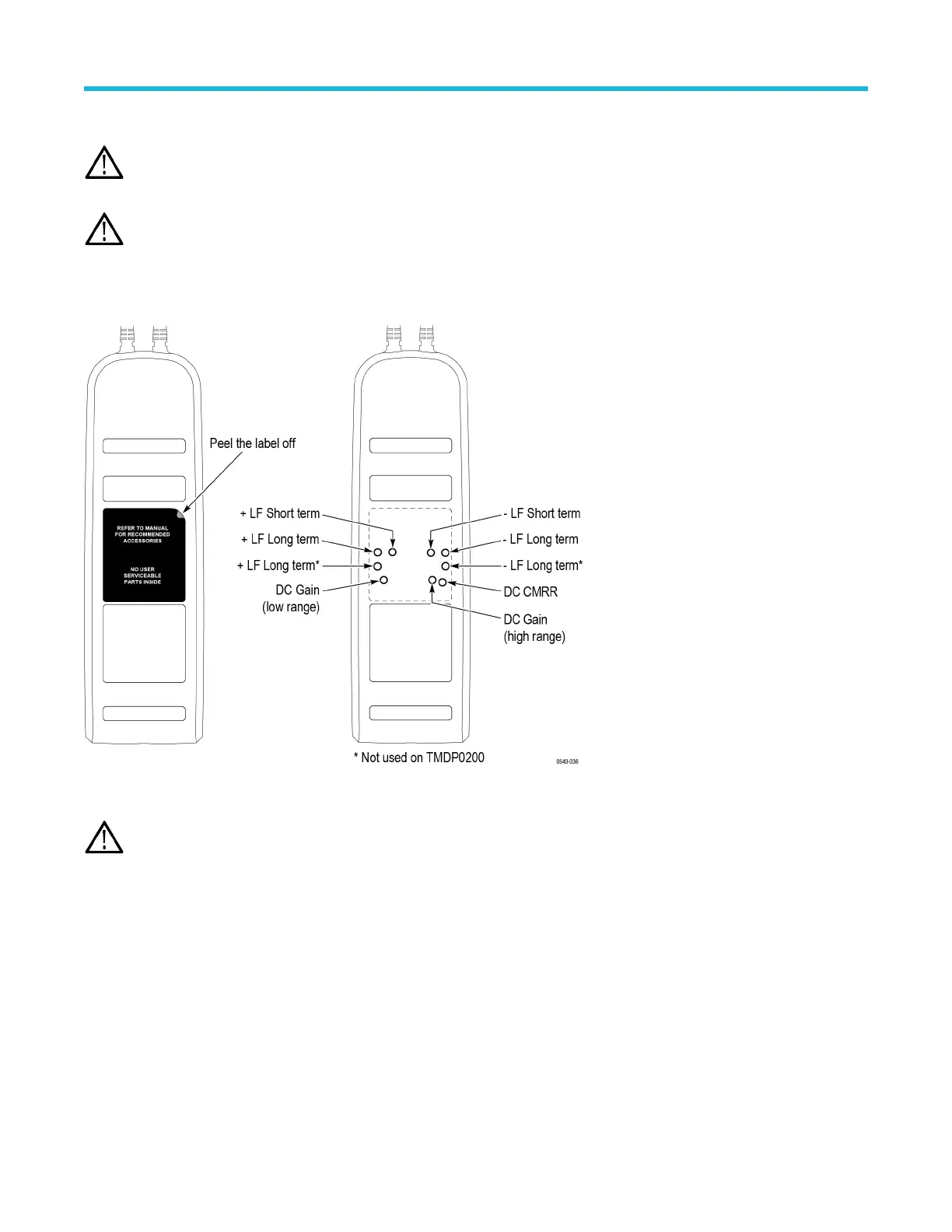

Figure 17: Internal adjustment locations (S/N C020000 and above only)
CAUTION: Y
ou must replace the reusable label after you complete the adjustment procedures. Failure to do so may subject
the user to high voltages present in the probe during measurements. If you need a replacement label, refer to the Equipment
Required table for the Tektronix replacement part number.
Adjustments
High Voltage Differential Probes THDP0100/0200 and TMDP0200 User Manual 55
