Tempest900 2-Channel Operating Manual
Transceiver Controls

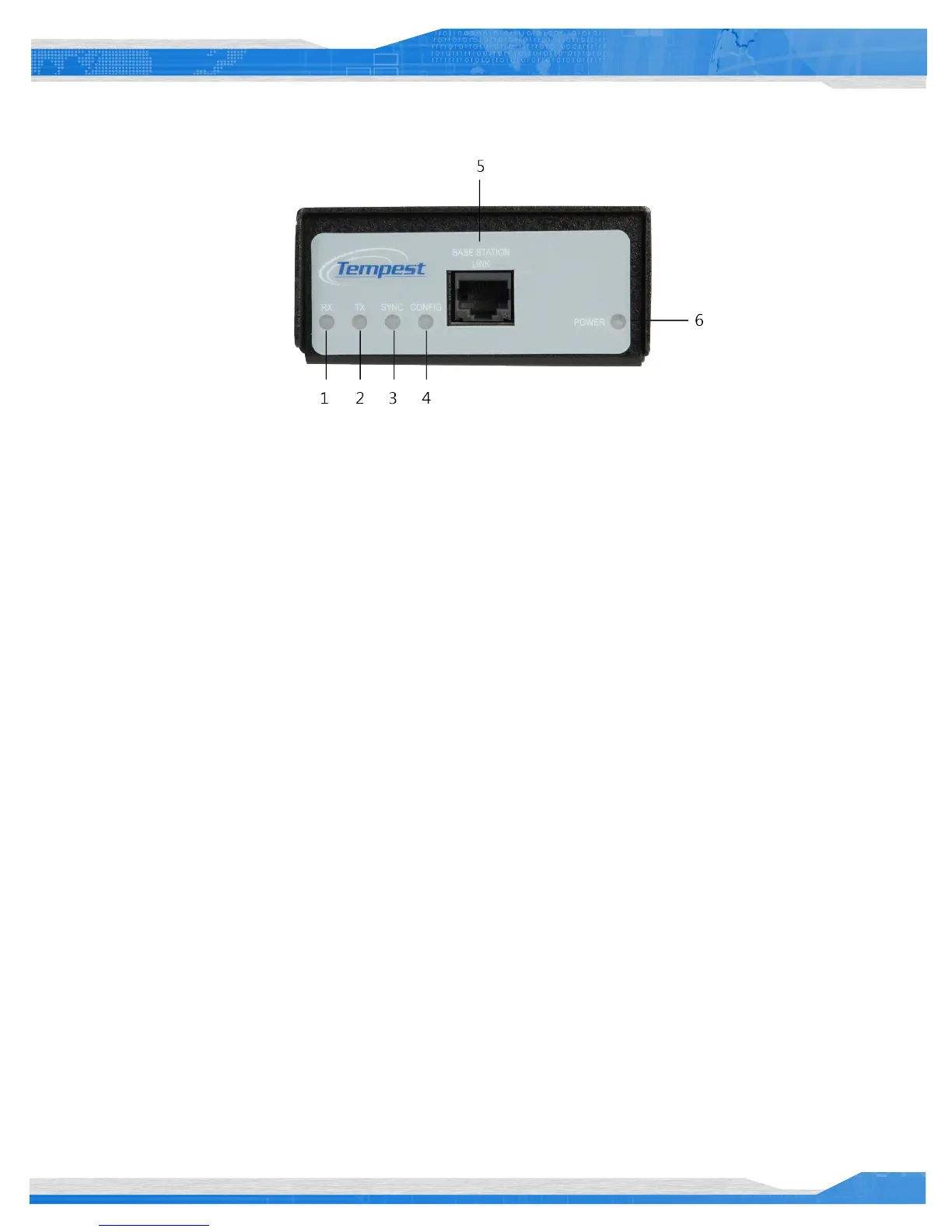

Bottom view of the transceiver
1- RX LED
The RX LED illuminates when data is being received by the Remote Transceiver. This LED will remain illuminated during normal system operation.
2- TX LED
The TX LED illuminates when data is being sent from the Remote Transceiver. This LED will remain illuminated during normal system operation.
3- SYNC LED
The Sync LED illuminates when the Transceiver Sync signal is present. This LED will remain illuminated during normal system operation.
4- CONFIG LED
The Cong LED illuminates only when the BaseStation puts the Remote Transceiver into conguration mode to change settings. This LED should
be ON for only a few seconds when rst powered ON, and OFF during normal operation.
5- BASESTATION LINK RJ-45 Connector
The BaseStation Link RJ-45 connector is used to connect the Transceiver to the Tempest BaseStation via standard CAT-5 cable with RJ-45
connectors.
6- Power LED
The Power LED illuminates whenever the BaseStation is providing adequate power to the Transceiver over the CAT-5 cable. If the Power LED
does not light, the CAT-5 cable may be damaged or too long to deliver adequate power for the Transceiver to operate reliably.
Threaded Mounting Holes
Two Threaded Mounting Holes are provided on the back of the Remote Transceiver for use with the mounting bracket to mount the Transceiver
in a convenient location. The mounting holes are #8-32 thread and accept a #8-32 x 3/8” pan head screw.
