Tempest 900 - Wired Intercom Interface to the Basestation

47
Tempest900 2-Channel Operating Manual
Wired Intercom Interface to the BaseStation
Each of Tempest’s twohard wired intercom channels can interface with a 4-Wire matrix intercom or a 2-Wire party-line intercom. Tempest
supports a 4-Wire intercom interface to most major digital matrix intercom systems and other intercom 4-Wire devices. Tempest also interfaces
with 2-Wire intercom systems including Clear-Com, RTS, and AudioCom (BAL) systems, as well as compatible brands. Each Tempest intercom
channel can interface with one intercom system at any given time.
While it is possible that both 2-Wire and 4-Wire systems may be connected to the same intercom channel simultaneously, they cannot function
at the same time, and this arrangement has the potential to cause undesirable operational complications, so is not recommended.

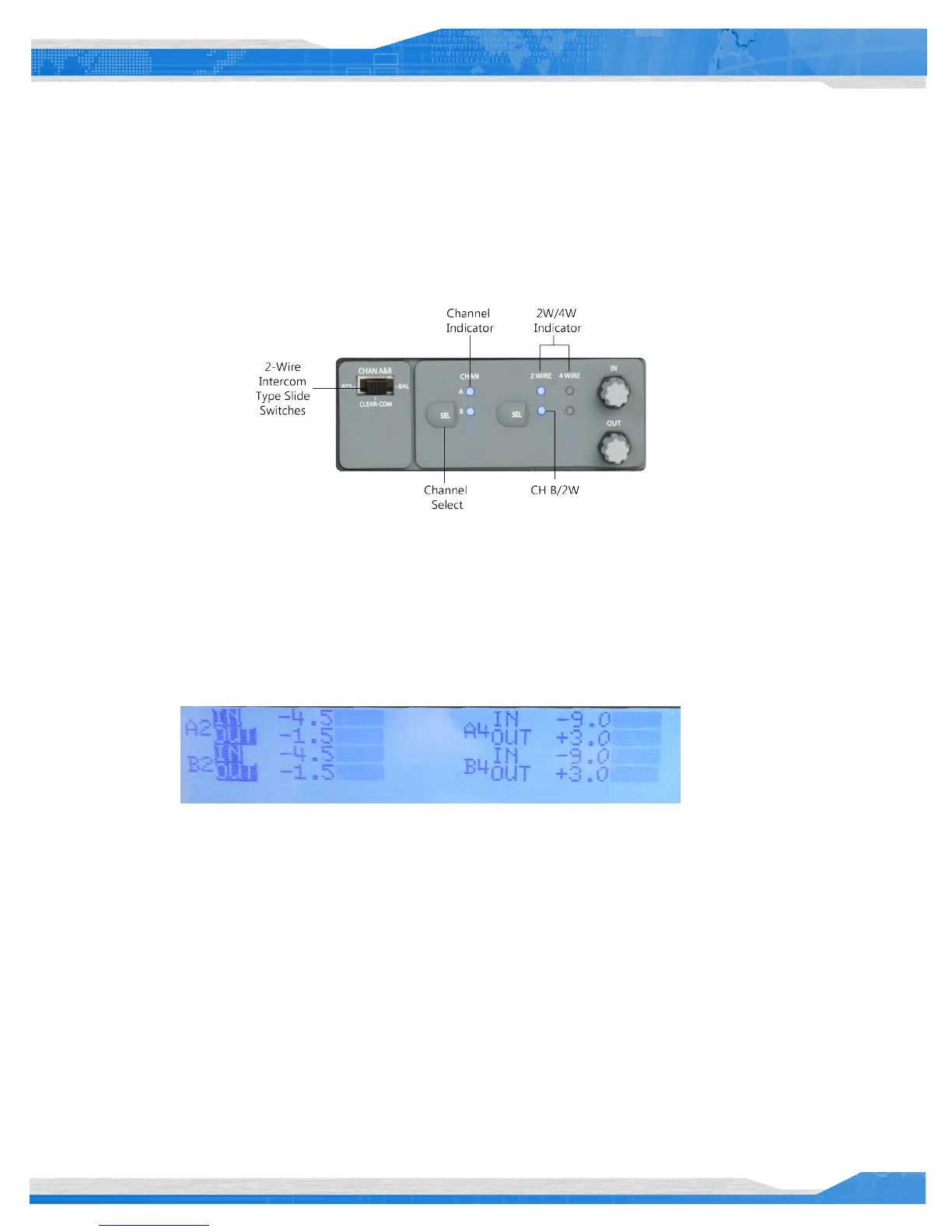

Tempest BaseStation Wired Conguration Controls for Connection to Wired Intercom Systems
These controls will normally be used together to congure the Tempest BaseStation for 2-Wire or 4-Wire operation.
• CHAN A has been set for no wired intercom connection – the LEDs are OFF.
• CHAN B is set for 2-Wire intercom connection. The upper slide switch is in the middle position and the 2-Wire LED aligned with CHAN
B is illuminated.
Tempest BaseStation LCD display for IN and OUT adjustment
Use the IN and OUT controls to adjust the levels on the selected channel.
In this diagram, Channel A, 2-Wire levels are selected for adjustment.
