2
Reset Button
It is visible after the front cover of the AP is removed. After the AP is powered on, you can use a paper clip to
hold down this button for about 8 seconds to restore the factory settings.
LED Indicator
The AP is not powered on.
The rear (LAN0) port is connected.
Data is being transmitted over the rear (LAN0) port.
The rear (LAN0) port is not connected.
LAN1 Port
This port is located on the front panel of the AP and transmits data in 10/100 Mbps auto-negotiation mode. It
is used to connect to a computer, a switch and so on.
LAN0 Port
It is located on the rear of the AP for supplying PoE power to the AP and exchanging data in 10/100 Mbps
auto-negotiation mode. Connect this port using an Ethernet cable to an IEEE 802.3af PoE device to supply
power to the AP.
1.2.2 Label

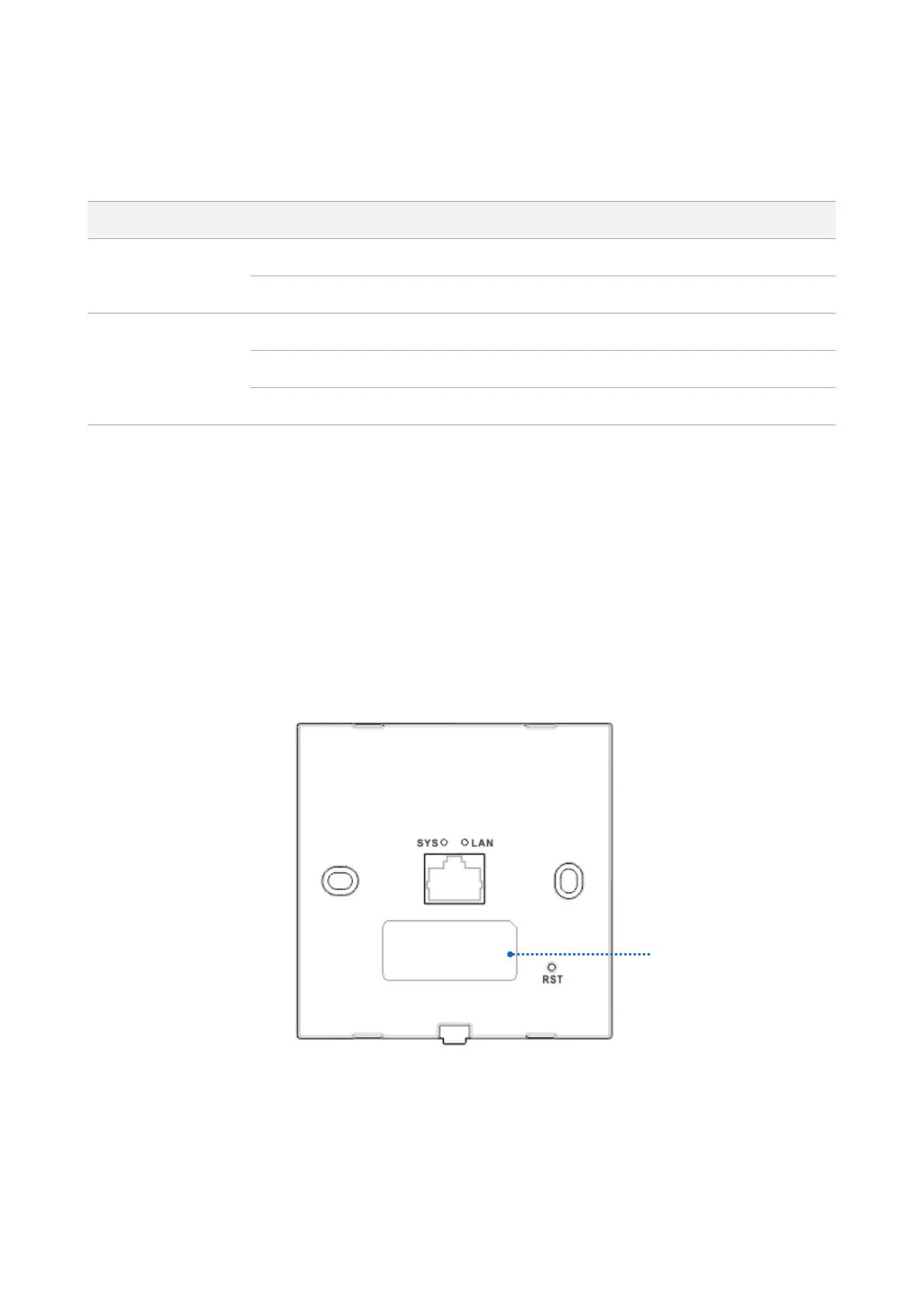

It is visible after the front cover of the AP is removed. The following figure shows its position.
