Tenda AP4 User Manual

123
7.6.9 Hardware watch dog
This function uses an embedded watchdog timer to detect the operation condition of the device’s
main program at scheduled time. During normal operation, the device regularly resets the
watchdog timer to prevent it from elapsing, or "timing out". If, due to a hardware fault or program
error, the device fails to reset the watchdog timer, the timer will elapse and generate a timeout
signal. The timeout signal is used to reboot the device to make it recover from malfunctions.

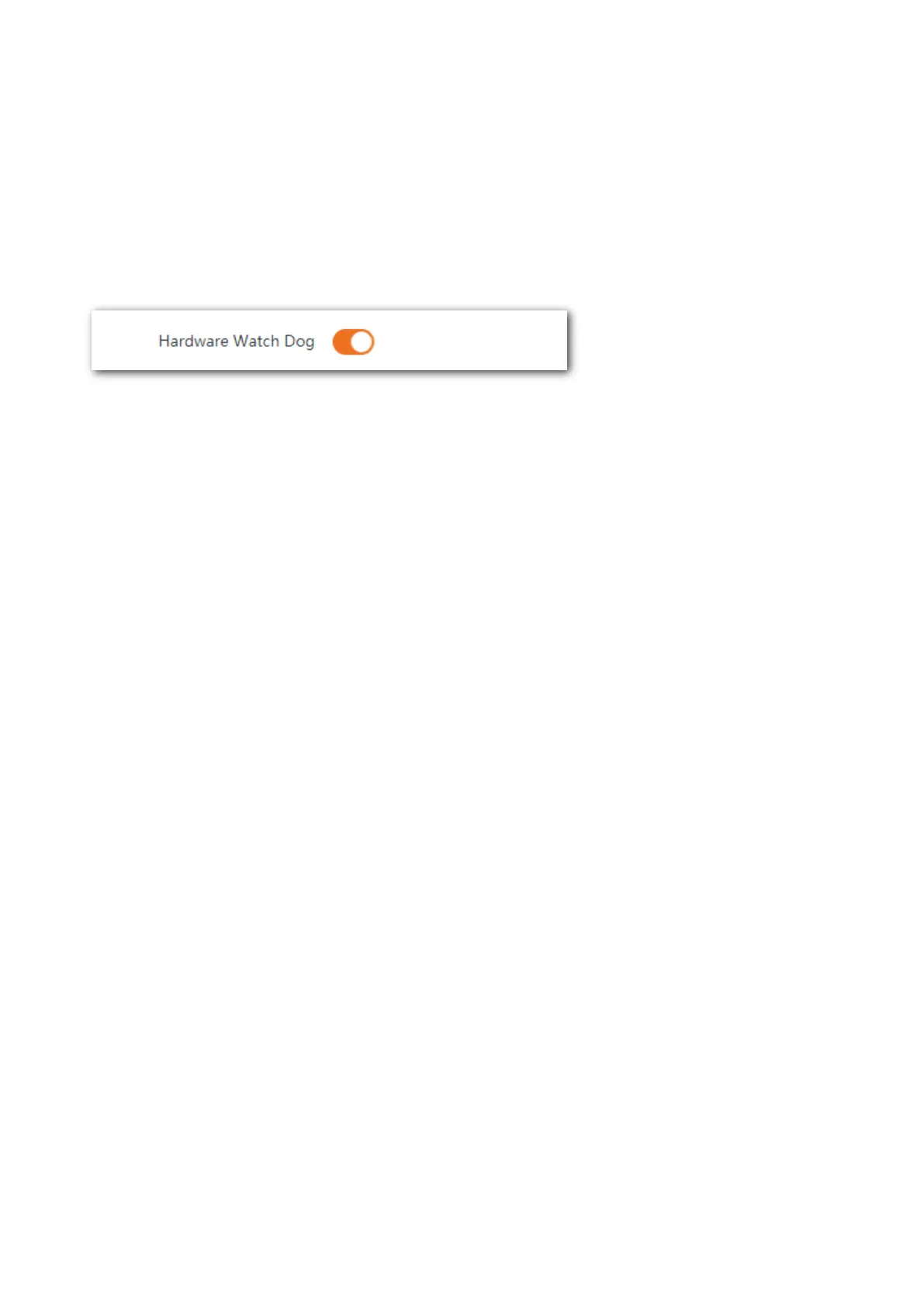

To access the page, choose Advanced > Network Service. By default, the function is enabled.

Tenda AP4 Specifications

General

5 GHz	No
2.4 GHz	Yes
Frequency band	2.4 - 2.483 GHz
Number of users	5 user(s)
Operating modes	Access Point (AP), Repeater, WISP
Transmitting power	20 dBmW
Maximum indoor range	40 m
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Output current	0.6 A
Output voltage	9 V
Power consumption (typical)	4 W
Placement	Table, Wall
Certification	FCC, CE, VoC, Rohs
Product color	Black
LED indicators	LAN, System, WLAN, WPS
Antenna gain level (max)	5 dBi
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA2, WPA2-PSK
Number of SSID supported	8
Service Set Identifier (SSID) features	SSID broadcast on/off
Supported network protocols	http/https
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	-10 - 45 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	31.5 mm
Width	148 mm
Height	146.2 mm
