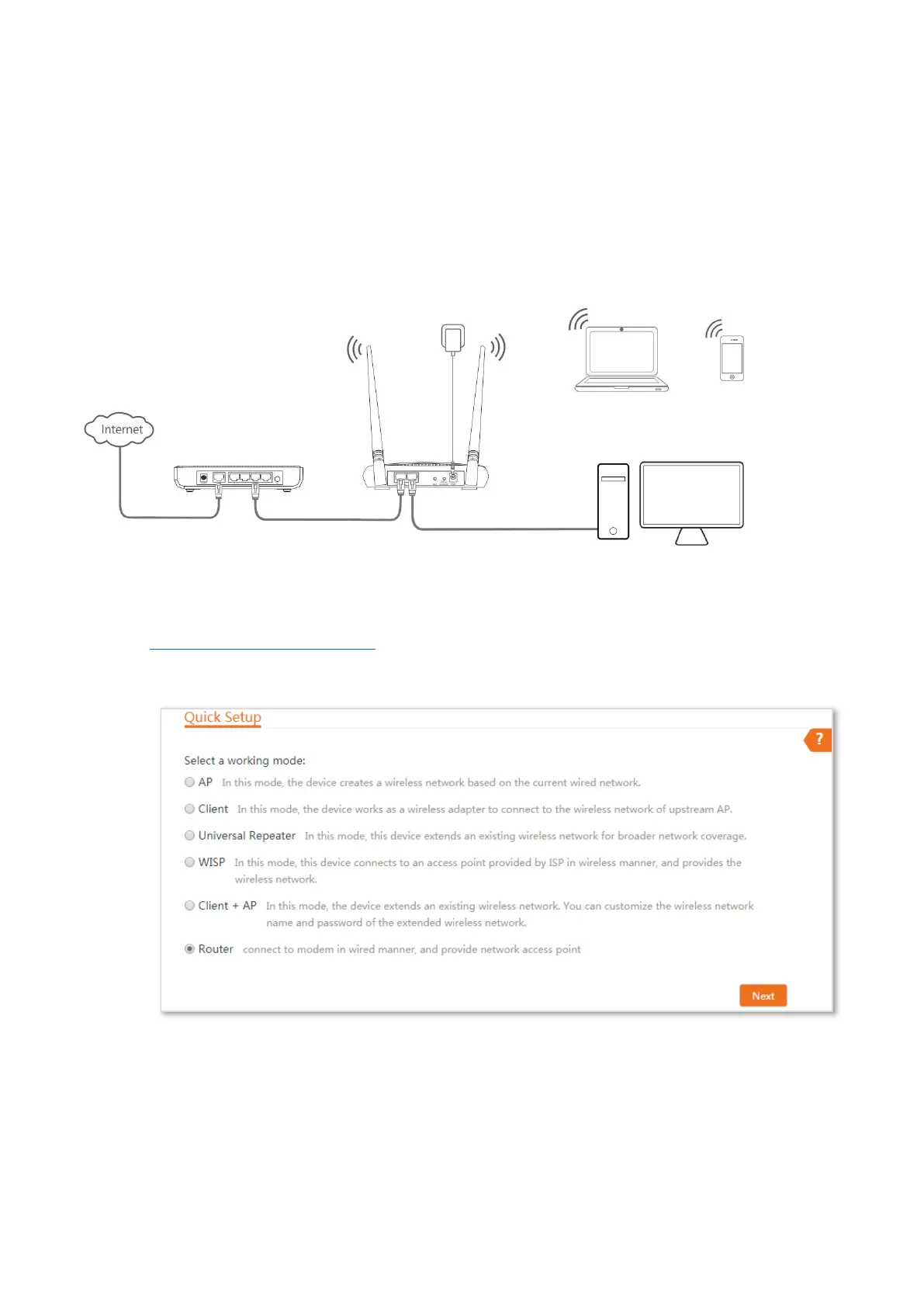

Tenda AP4 User Manual

53
4.6 Router mode
4.6.1 Overview
In Router mode, this device serves as a router to provide internet access for wired and wireless
clients. The PoE/WAN/LAN2 port functions as a WAN port used to connect to the internet.
Network requirement: You want to use the AP to provide a WiFi network to provide internet access
for wired and wireless clients.
Configuration procedure of setting Router mode
Step 1 Connect a computer to the LAN1 port of the AP.
Step 2 Log in to the web UI of the AP, and choose Quick Setup to enter the configuration page.
Step 3 Select Router mode, and click Next.
Step 4 Select your internet connection type, and set the related parameters. Take PPPoE as an
example here.
1. Select PPPoE.
2. Enter the PPPoE user name and password provided by your ISP, which are both admin in
this example.
Router mode
Modem

Tenda AP4 Specifications

General

5 GHz	No
2.4 GHz	Yes
Frequency band	2.4 - 2.483 GHz
Number of users	5 user(s)
Operating modes	Access Point (AP), Repeater, WISP
Transmitting power	20 dBmW
Maximum indoor range	40 m
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Output current	0.6 A
Output voltage	9 V
Power consumption (typical)	4 W
Placement	Table, Wall
Certification	FCC, CE, VoC, Rohs
Product color	Black
LED indicators	LAN, System, WLAN, WPS
Antenna gain level (max)	5 dBi
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA2, WPA2-PSK
Number of SSID supported	8
Service Set Identifier (SSID) features	SSID broadcast on/off
Supported network protocols	http/https
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	-10 - 45 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	31.5 mm
Width	148 mm
Height	146.2 mm
