Tenda AP4 User Manual

108
7.5 MAC filter
This function is available only when the device works in WISP or Router mode.
7.5.1 Overview
The MAC Filter function enables you to allow or disallow the devices, such as computers, laptops,
tablets, and smart phones, to access the internet via the device at what time and on what days
based on their MAC addresses.

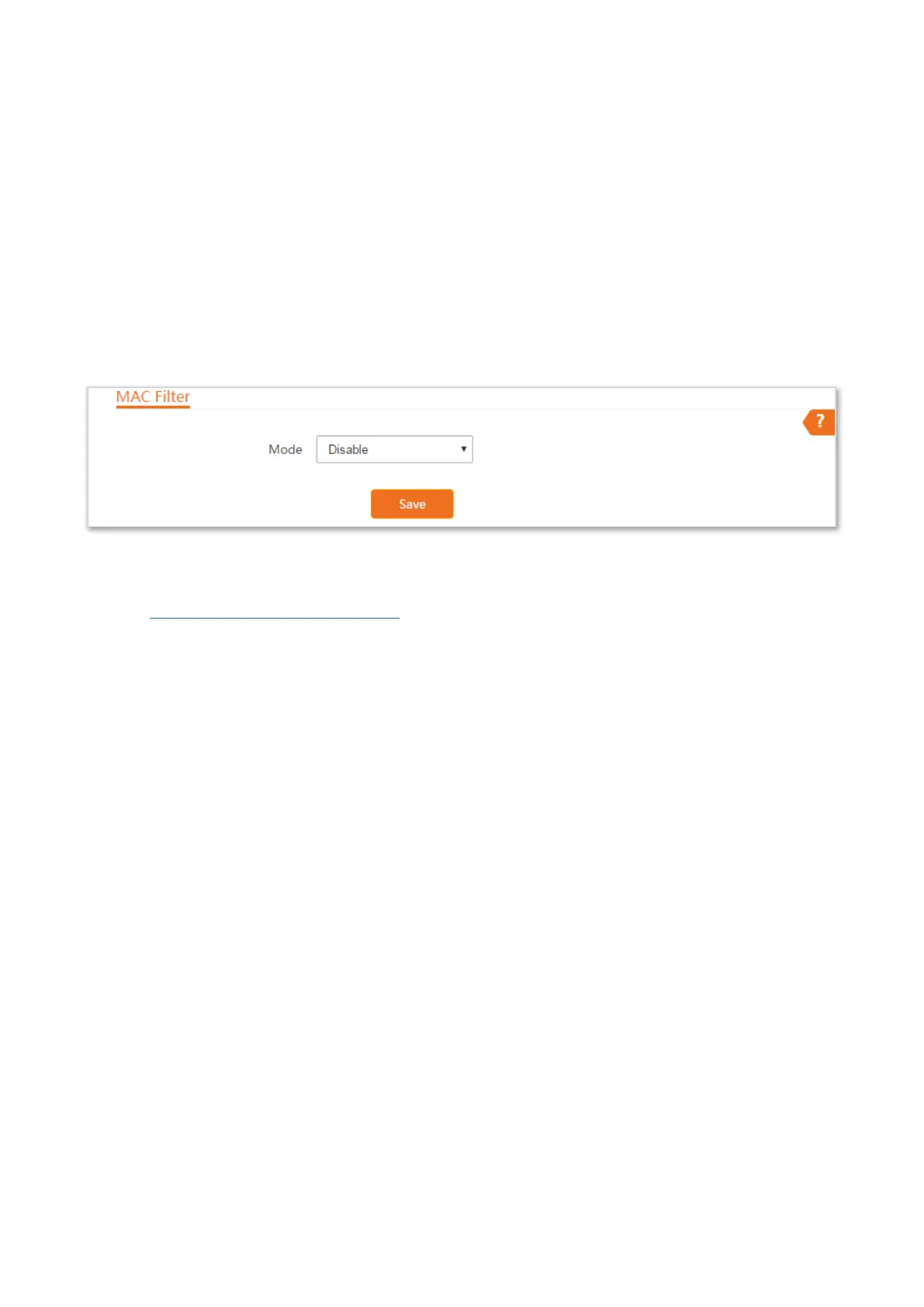

To access the page, choose Advanced > MAC Filter.
The function is disabled by default.
7.5.2 Configuring MAC filter
Step 1 Log into the web UI of the device, and choose Advanced > MAC Filter.
Step 2 Select a MAC filter mode, Disallow or Allow.
Step 3 Enter a remark for the rule, such as somebody’s device.
Step 4 Specify a period at which the rule takes effect.
Step 5 Tick the dates on which the rule takes effect.
Step 6 Click Add.

Tenda AP4 Specifications

General

5 GHz	No
2.4 GHz	Yes
Frequency band	2.4 - 2.483 GHz
Number of users	5 user(s)
Operating modes	Access Point (AP), Repeater, WISP
Transmitting power	20 dBmW
Maximum indoor range	40 m
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Output current	0.6 A
Output voltage	9 V
Power consumption (typical)	4 W
Placement	Table, Wall
Certification	FCC, CE, VoC, Rohs
Product color	Black
LED indicators	LAN, System, WLAN, WPS
Antenna gain level (max)	5 dBi
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA2, WPA2-PSK
Number of SSID supported	8
Service Set Identifier (SSID) features	SSID broadcast on/off
Supported network protocols	http/https
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	-10 - 45 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	31.5 mm
Width	148 mm
Height	146.2 mm
