Tenda AP4 User Manual

66
5.2 MAC clone
This function is available only when the device works in WISP or Router mode.
5.2.1 Overview
If the device cannot access the internet after configuring internet settings, your ISP may have bound
your internet service account with the MAC address of your computer that was used to verify the
internet connectivity after you subscribed to the internet service. Therefore, only this computer can
access the internet with the account.
In this case, you need to clone the MAC address of this computer to the WAN port of this device for
internet access.
5.2.2 Cloning a MAC address
Select one of the following methods to clone the MAC address according to your networking
scenario.
Using the computer with the MAC address bound to your internet service for setup
If you use the computer with the MAC address bound to your internet service to set up the function,
perform the following steps:
Step 1 Connect the computer to the device.

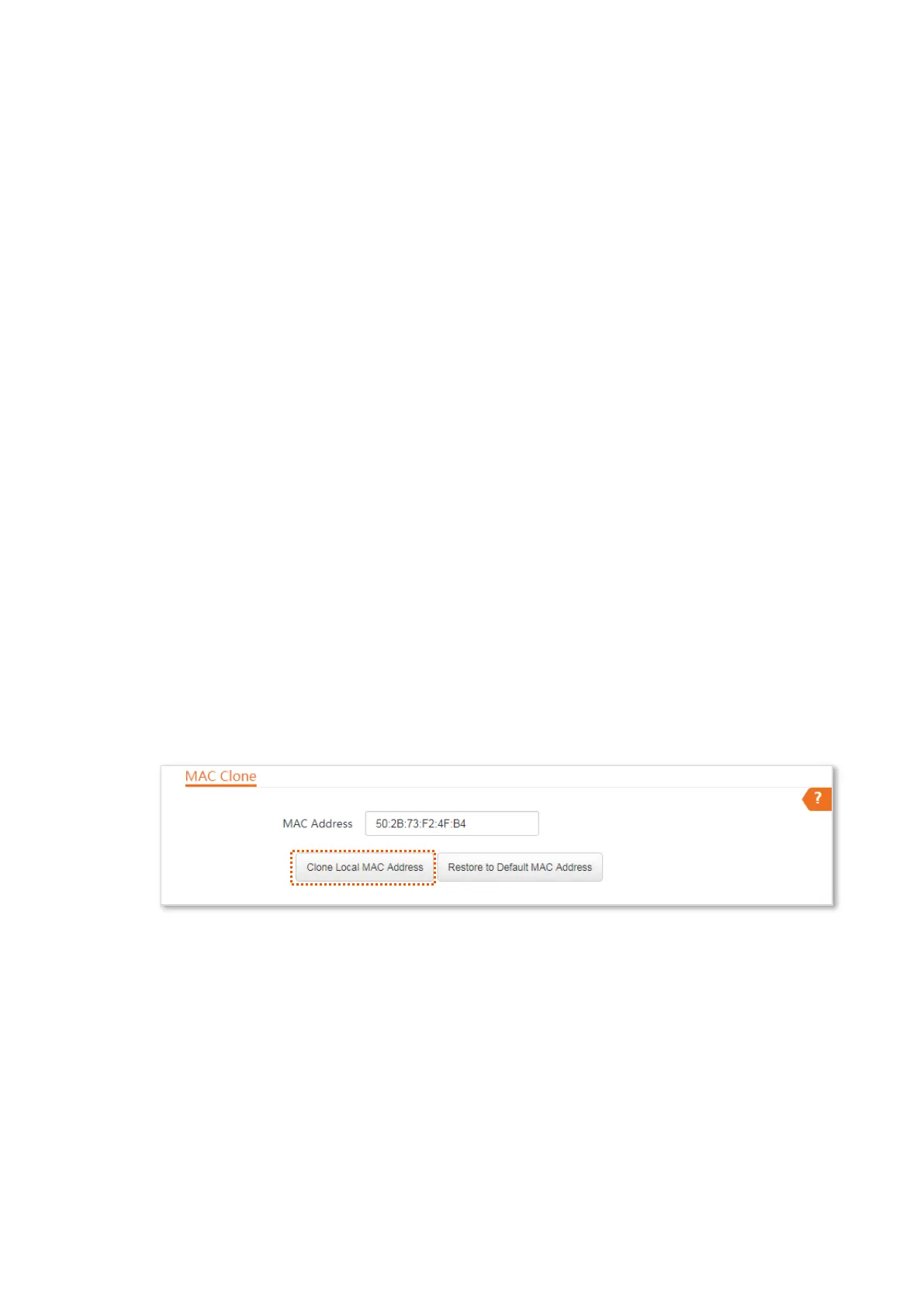

Step 2 Log in to the web UI, and choose Network > MAC Clone to enter the configuration page.
Step 3 Click Clone Local MAC Address.
Step 4 Click Save.
----End
Using a device without the MAC address bound your internet service for setup
If you use a device whose MAC address is not bound to your internet service to set up the function,
perform the following steps:
Step 1 Connect the device (such as a smart phone or tablet) to the device.
Step 2 Log in to the web UI, and choose Network > MAC Clone to enter the configuration page.
Step 3 Enter the MAC address of the computer that can access the internet in the MAC Address
input box.

Tenda AP4 Specifications

General

5 GHz	No
2.4 GHz	Yes
Frequency band	2.4 - 2.483 GHz
Number of users	5 user(s)
Operating modes	Access Point (AP), Repeater, WISP
Transmitting power	20 dBmW
Maximum indoor range	40 m
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Output current	0.6 A
Output voltage	9 V
Power consumption (typical)	4 W
Placement	Table, Wall
Certification	FCC, CE, VoC, Rohs
Product color	Black
LED indicators	LAN, System, WLAN, WPS
Antenna gain level (max)	5 dBi
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA2, WPA2-PSK
Number of SSID supported	8
Service Set Identifier (SSID) features	SSID broadcast on/off
Supported network protocols	http/https
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	-10 - 45 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	31.5 mm
Width	148 mm
Height	146.2 mm
