Tenda AP4 User Manual

29
4.3 Universal repeater mode
4.3.1 Overview
In Universal Repeater mode, this device expands your existing WiFi network for broader network
coverage. After bridging, the WiFi name and password of this device are the same as those of your
existing WiFi network.
Network requirement: You want to use the AP to extend your existing WiFi network. And after
bridging, the WiFi name and key need to be the same as those of your existing WiFi network.
Option 1: Using the Range Extender button
To use this option, your existing wireless router must have a WPS button.
Step 1 Place the AP near your existing wireless router, power it on and wait until its SYS LED
indicator blinks.
Step 2 Press the WPS button on your existing router.
Step 3 Within 2 minutes, press the Range Extender button on the AP for about 3 seconds, and
then release it when its WPS LED indicator blinks.

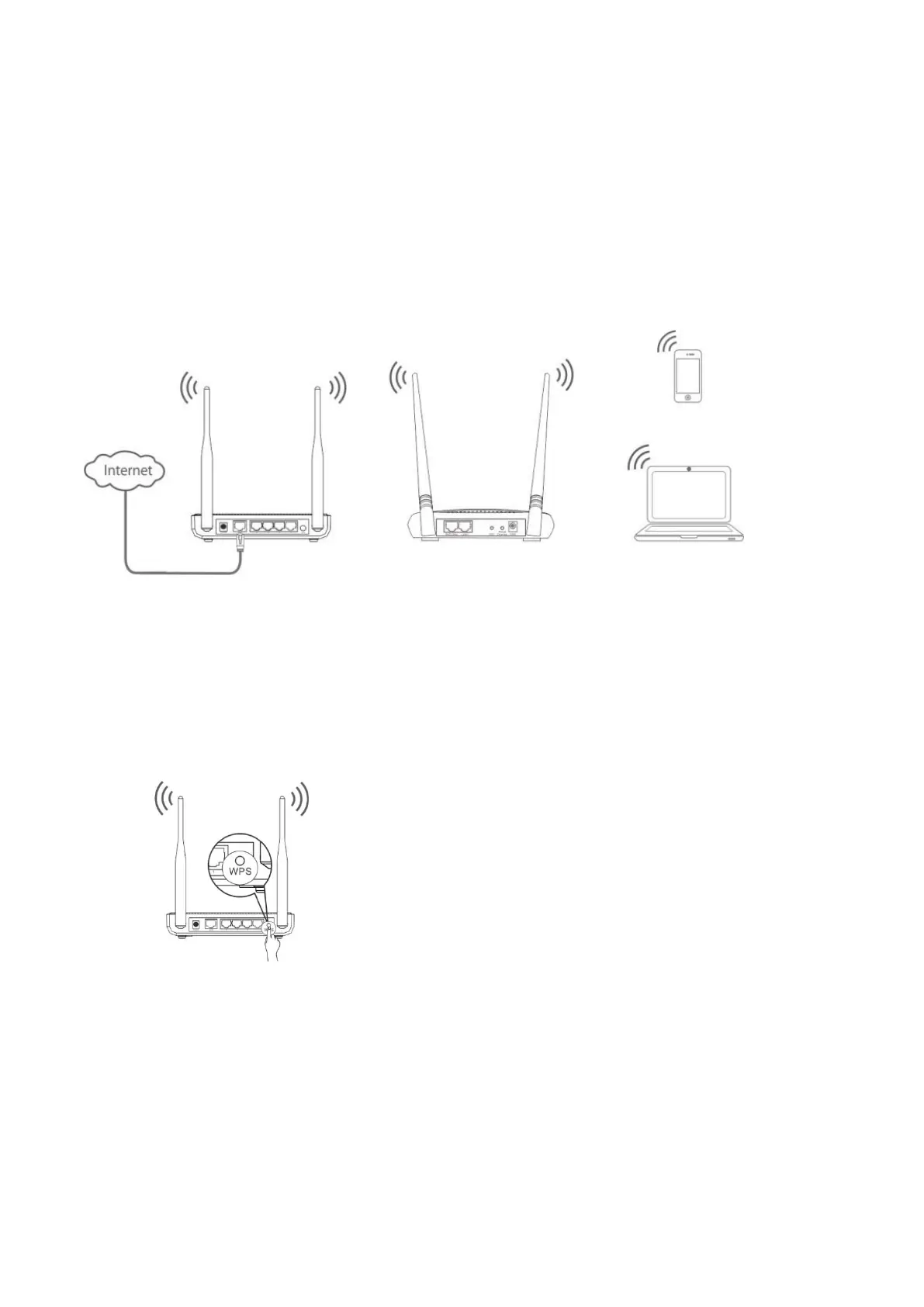

Universal repeater mode
Existing wireless router

Tenda AP4 Specifications

General

5 GHz	No
2.4 GHz	Yes
Frequency band	2.4 - 2.483 GHz
Number of users	5 user(s)
Operating modes	Access Point (AP), Repeater, WISP
Transmitting power	20 dBmW
Maximum indoor range	40 m
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Output current	0.6 A
Output voltage	9 V
Power consumption (typical)	4 W
Placement	Table, Wall
Certification	FCC, CE, VoC, Rohs
Product color	Black
LED indicators	LAN, System, WLAN, WPS
Antenna gain level (max)	5 dBi
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA2, WPA2-PSK
Number of SSID supported	8
Service Set Identifier (SSID) features	SSID broadcast on/off
Supported network protocols	http/https
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	-10 - 45 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	31.5 mm
Width	148 mm
Height	146.2 mm
