Tenda AP4 User Manual

103
7.4 Port forwarding
This function is available only when the device works in WISP or Router mode.
7.4.1 Overview
If computers are connected to the router to form a LAN and access the internet through the router,
internet users cannot access the hosts on the LAN. Therefore, the servers, such as web servers,
email servers, and FTP servers, on the LAN are inaccessible to internet users. To enable internet
users to access a LAN server, enable the port forwarding function of the router, and map one service
port to the IP address of the LAN server. This enables the router to forward the requests arriving at
the port from the internet to the LAN server, and avoid the attacks from the WAN.

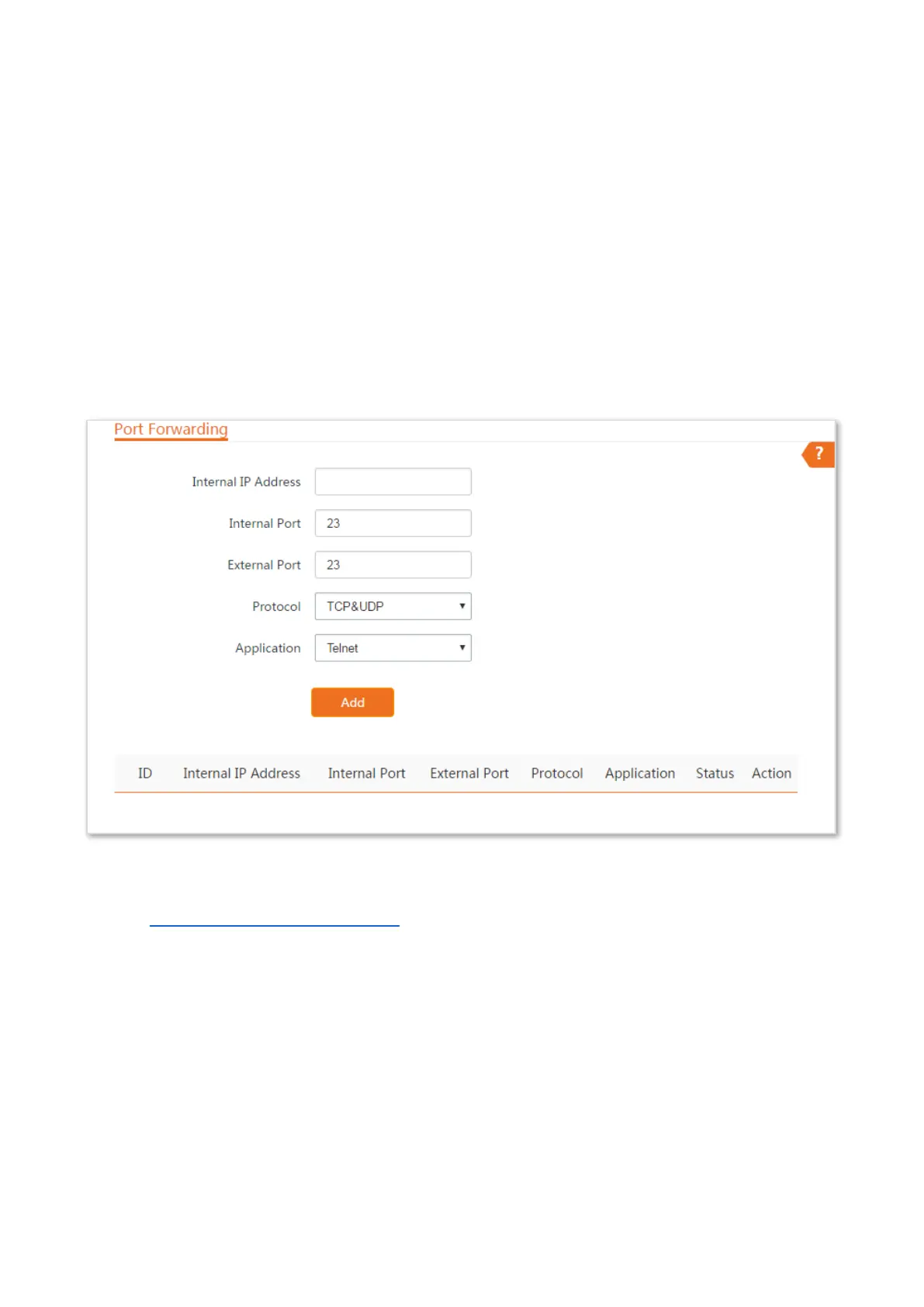

To access the page, choose Advanced > Port Forwarding.
7.4.2 Configuring port forwarding
Step 1 Log into the web UI of the device, and choose Advanced > Port Forwarding.
Step 2 Enter the IP address of a server established in LAN.
Step 3 Enter the internal and external ports you enable for the service.
If you are uncertain about them, select an Application and the internal and external ports
will be populated automatically.
Step 4 Select the protocol.
If you are uncertain about it, select TCP&UDP.
Step 5 Click Add.

Tenda AP4 Specifications

General

5 GHz	No
2.4 GHz	Yes
Frequency band	2.4 - 2.483 GHz
Number of users	5 user(s)
Operating modes	Access Point (AP), Repeater, WISP
Transmitting power	20 dBmW
Maximum indoor range	40 m
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Output current	0.6 A
Output voltage	9 V
Power consumption (typical)	4 W
Placement	Table, Wall
Certification	FCC, CE, VoC, Rohs
Product color	Black
LED indicators	LAN, System, WLAN, WPS
Antenna gain level (max)	5 dBi
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA2, WPA2-PSK
Number of SSID supported	8
Service Set Identifier (SSID) features	SSID broadcast on/off
Supported network protocols	http/https
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	-10 - 45 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	31.5 mm
Width	148 mm
Height	146.2 mm
