Tenda AP4 User Manual

112
7.6 Network service
7.6.1 DDNS
This function is available only when the device works in WISP or Router mode.
DDNS, Dynamic Domain Name Server, enables the dynamic DNS client on the device to deliver the
current WAN IP address to the DNS server. Then the server maps the WAN IP address to a domain
name for dynamic domain name resolution.
This function often works with the port forwarding, DMZ host, and remote web management
functions. Then users can visit an address with a domain name instead of a dynamic WAN IP
address which makes the visit easier.

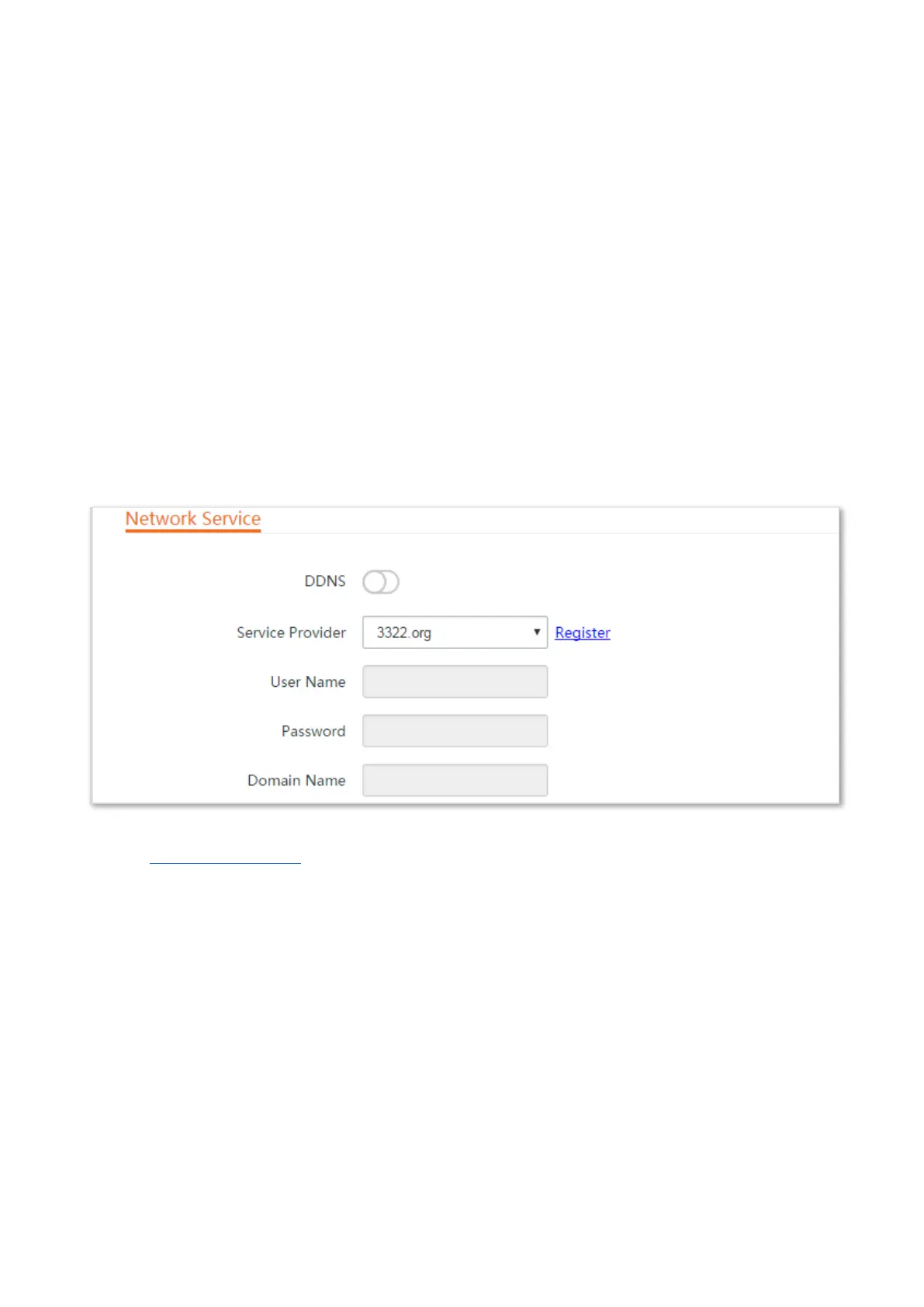

To access the page, choose Advanced > Network Service.
Configuring DDNS
Step 1 Log in to the web UI, and choose Advanced > Network Service.
Step 2 Enable the DDNS function.
Step 3 Select a DDNS provider from the drop-down list.
Step 4 Enter the user name and password used to log in to a DDNS provider, and domain name
you registered with DDNS service provider.
Step 5 Click Save on the bottom of this page.

Tenda AP4 Specifications

General

5 GHz	No
2.4 GHz	Yes
Frequency band	2.4 - 2.483 GHz
Number of users	5 user(s)
Operating modes	Access Point (AP), Repeater, WISP
Transmitting power	20 dBmW
Maximum indoor range	40 m
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Output current	0.6 A
Output voltage	9 V
Power consumption (typical)	4 W
Placement	Table, Wall
Certification	FCC, CE, VoC, Rohs
Product color	Black
LED indicators	LAN, System, WLAN, WPS
Antenna gain level (max)	5 dBi
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA2, WPA2-PSK
Number of SSID supported	8
Service Set Identifier (SSID) features	SSID broadcast on/off
Supported network protocols	http/https
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	-10 - 45 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	31.5 mm
Width	148 mm
Height	146.2 mm
