Tenda AP4 User Manual

104
----End

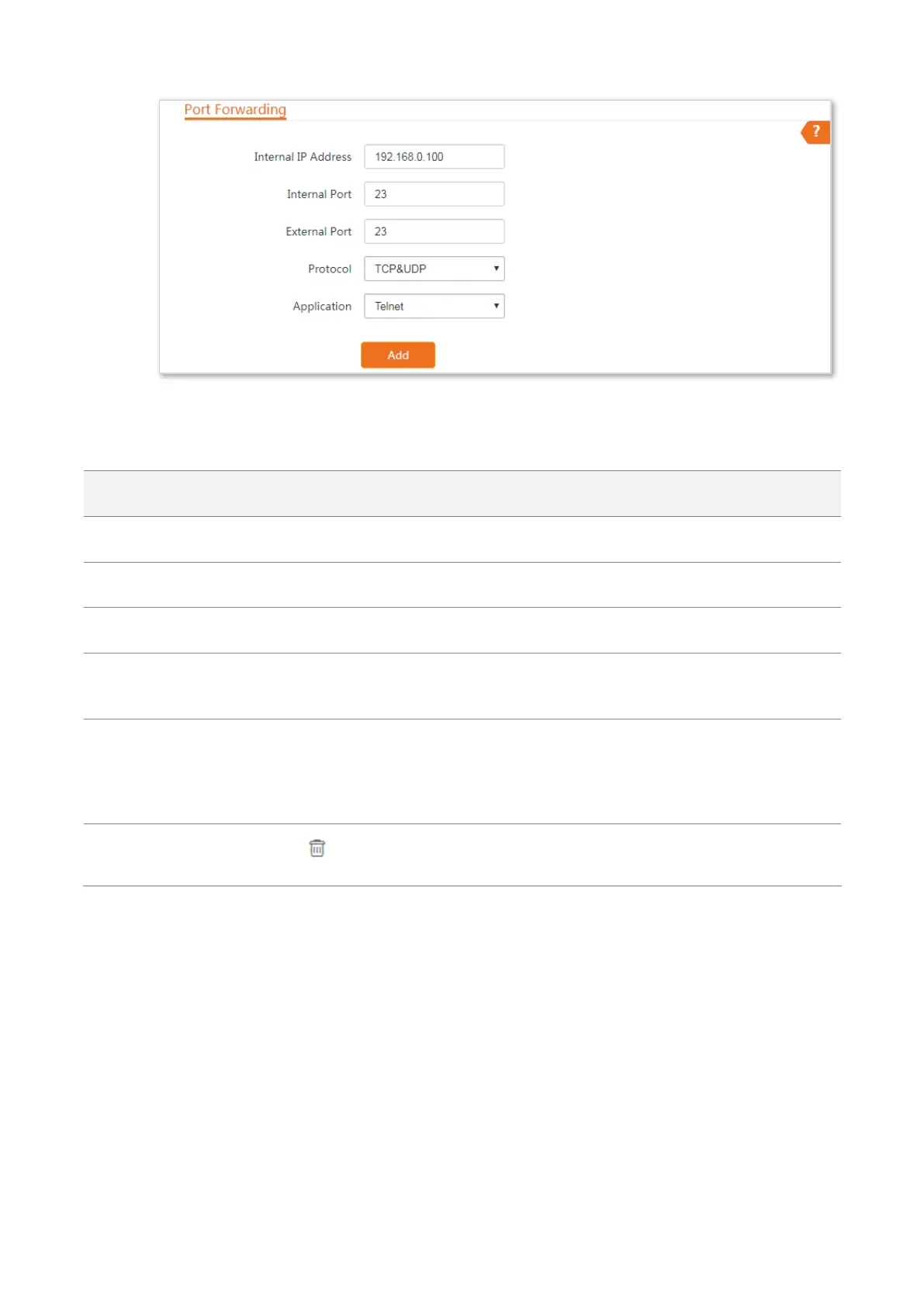

Parameters description
Name
Description
Internal IP Address
It specifies the IP address of the host that establishes a server in LAN.
Internal Port
It specifies the service port of the server in LAN.
External Port
It specifies the ports enabled for WAN users.
Protocol
It specifies the protocol type of the selected applications. Select TCP&UDP when you
are not sure.
Application
It specifies the application services established in LAN. The device provides some
common services. If you are uncertain about the internal and external port number,
you can select an application, the internal and external port number will be auto
populated.
Action
Click to delete the rule.
7.4.3 Example of configuring port forwarding
Networking requirement
The device is used to bridge to the ISP hotspot for internet access in a house in the countryside, and
the device is set to WISP mode.
Families who are not at home can visit the resources on the web server in LAN over the internet.
You are recommended to use port forwarding function to meet the requirement.
Assume that:
− IP Address of the web server: 192.168.0.100

Tenda AP4 Specifications

General

5 GHz	No
2.4 GHz	Yes
Frequency band	2.4 - 2.483 GHz
Number of users	5 user(s)
Operating modes	Access Point (AP), Repeater, WISP
Transmitting power	20 dBmW
Maximum indoor range	40 m
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Output current	0.6 A
Output voltage	9 V
Power consumption (typical)	4 W
Placement	Table, Wall
Certification	FCC, CE, VoC, Rohs
Product color	Black
LED indicators	LAN, System, WLAN, WPS
Antenna gain level (max)	5 dBi
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA2, WPA2-PSK
Number of SSID supported	8
Service Set Identifier (SSID) features	SSID broadcast on/off
Supported network protocols	http/https
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	-10 - 45 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	31.5 mm
Width	148 mm
Height	146.2 mm
