Tenda AP4 User Manual

48

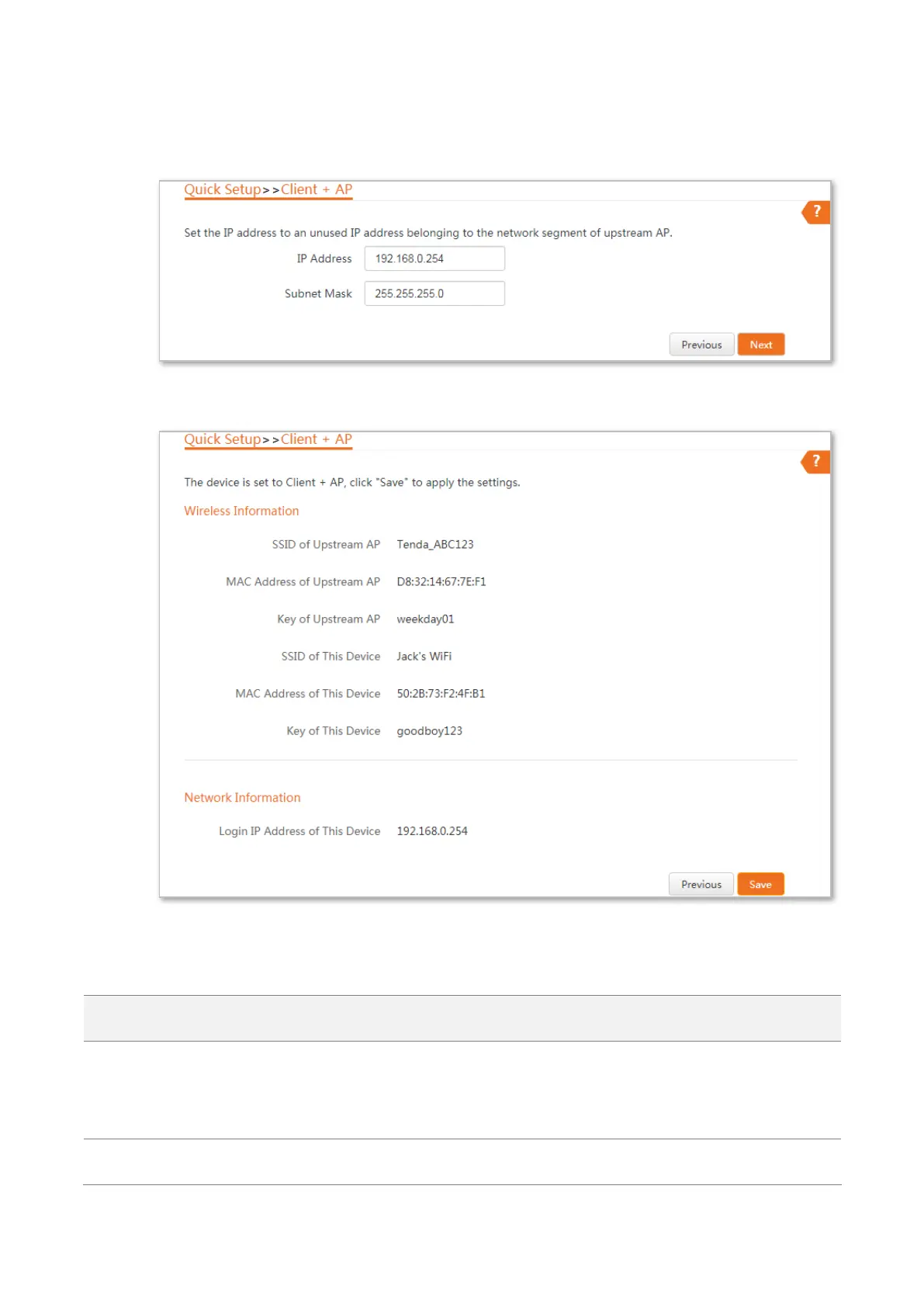

Step 6 Set the IP address to an unused IP address belonging to the same network segment of your
existing wireless router. For example, if the IP address of the router is 192.168.0.1, you can
set this device’s IP address to 192.168.0.X (X ranges from 2 to 254). Then click Next.
Step 7 Note down the SSID and Key of this device and keep them well. Then click Save.
----End
Parameters description
Parameter
Description
Working modes
It specifies the working mode of this device.
Client + AP mode: In this mode, this device expands your existing WiFi network for
broader network coverage, and allows you to create a separate WiFi network.
Upstream AP
It specifies the SSID (WiFi name) of the upstream AP.

Tenda AP4 Specifications

General

5 GHz	No
2.4 GHz	Yes
Frequency band	2.4 - 2.483 GHz
Number of users	5 user(s)
Operating modes	Access Point (AP), Repeater, WISP
Transmitting power	20 dBmW
Maximum indoor range	40 m
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Output current	0.6 A
Output voltage	9 V
Power consumption (typical)	4 W
Placement	Table, Wall
Certification	FCC, CE, VoC, Rohs
Product color	Black
LED indicators	LAN, System, WLAN, WPS
Antenna gain level (max)	5 dBi
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA2, WPA2-PSK
Number of SSID supported	8
Service Set Identifier (SSID) features	SSID broadcast on/off
Supported network protocols	http/https
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	-10 - 45 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	31.5 mm
Width	148 mm
Height	146.2 mm
