Tenda AP4 User Manual

58

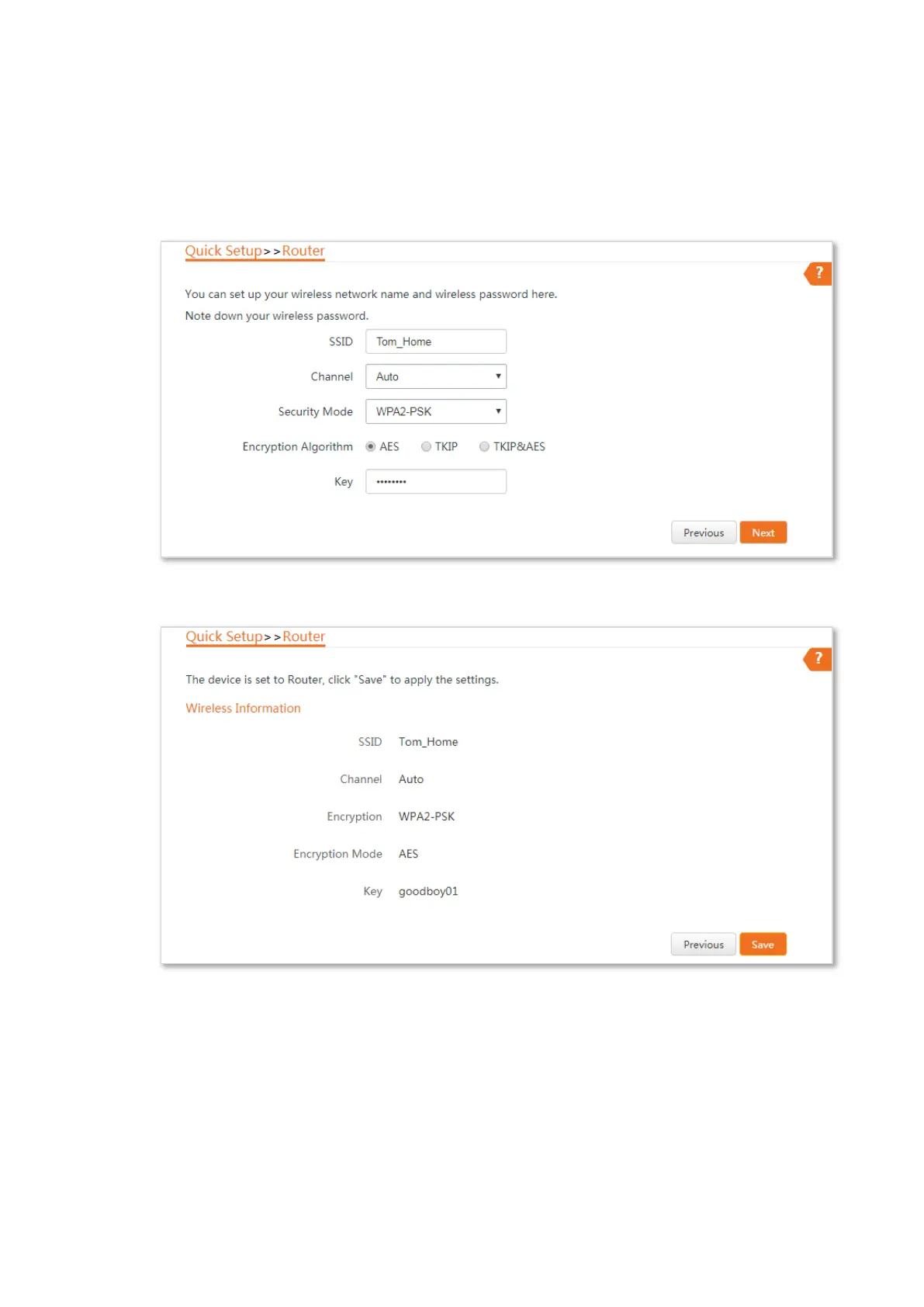

Step 4 Set wireless parameters of the device.
1. Customize a SSID, which is Tom_Home in this example.
2. Select a security mode, which is WPA2-PSK in this example.
3. Set a Key for the WiFi network, and click Next.
Step 5 Note down the SSID and Key of this device and keep them well. Then click Save.
----End
Verification
Wireless devices connected to the WiFi network (Tom_Home) of the device can access the internet.
The Wired device connected to the LAN1 port can access the internet.
*
*
*

Tenda AP4 Specifications

General

5 GHz	No
2.4 GHz	Yes
Frequency band	2.4 - 2.483 GHz
Number of users	5 user(s)
Operating modes	Access Point (AP), Repeater, WISP
Transmitting power	20 dBmW
Maximum indoor range	40 m
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Output current	0.6 A
Output voltage	9 V
Power consumption (typical)	4 W
Placement	Table, Wall
Certification	FCC, CE, VoC, Rohs
Product color	Black
LED indicators	LAN, System, WLAN, WPS
Antenna gain level (max)	5 dBi
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA2, WPA2-PSK
Number of SSID supported	8
Service Set Identifier (SSID) features	SSID broadcast on/off
Supported network protocols	http/https
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	-10 - 45 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	31.5 mm
Width	148 mm
Height	146.2 mm
