Setting up a WiFi network encrypted using WPA2-PSK
Networking requirement
An office’s WiFi network with a certain level of security must be set up through a simply procedure.
In this case, WPA2-PSK mode is recommended. See the following figure.

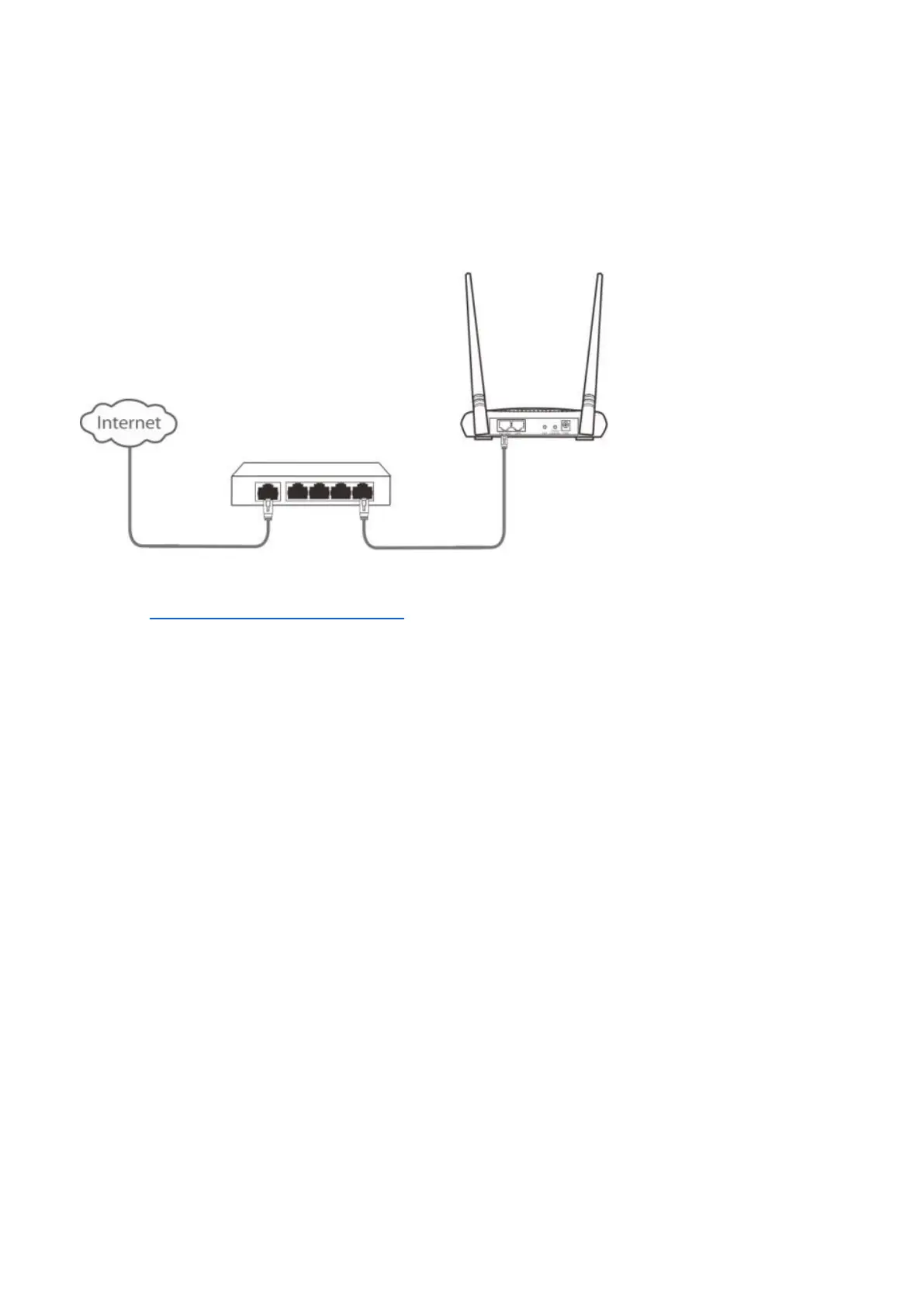

Network topology
Configuration procedure
Step 1 Log in to the web UI of the device, and choose Wireless > Basic.
Step 2 Set the Enable wireless function.
Step 3 Change the value of the SSID text box to Office.
Step 4 Set Security Mode to WPA2-PSK and Encryption Algorithm to AES.
Step 5 Set Key to 87654321.
Step 6 Click Save.
SSID: Office
Key: 87654321
Router

Tenda AP4 Specifications

General

5 GHz	No
2.4 GHz	Yes
Frequency band	2.4 - 2.483 GHz
Number of users	5 user(s)
Operating modes	Access Point (AP), Repeater, WISP
Transmitting power	20 dBmW
Maximum indoor range	40 m
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Output current	0.6 A
Output voltage	9 V
Power consumption (typical)	4 W
Placement	Table, Wall
Certification	FCC, CE, VoC, Rohs
Product color	Black
LED indicators	LAN, System, WLAN, WPS
Antenna gain level (max)	5 dBi
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA2, WPA2-PSK
Number of SSID supported	8
Service Set Identifier (SSID) features	SSID broadcast on/off
Supported network protocols	http/https
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	-10 - 45 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	31.5 mm
Width	148 mm
Height	146.2 mm
