Tenda PW201A User Manual

PW201A Wireless N Powerline AP User Guide
Chapter 2 Hardware Installation
2.1 Installation Method
Method 1
Establish a Powerline network for LAN communication. Simply plug the
Tenda PW201A and Tenda P200 (Powerline adapter) into different wall
outlets within the same power circuitry and set IP addresses of PCs on LAN
to the same net segment as the Powerline devices. And the PCs will be able
to intercommunicate.

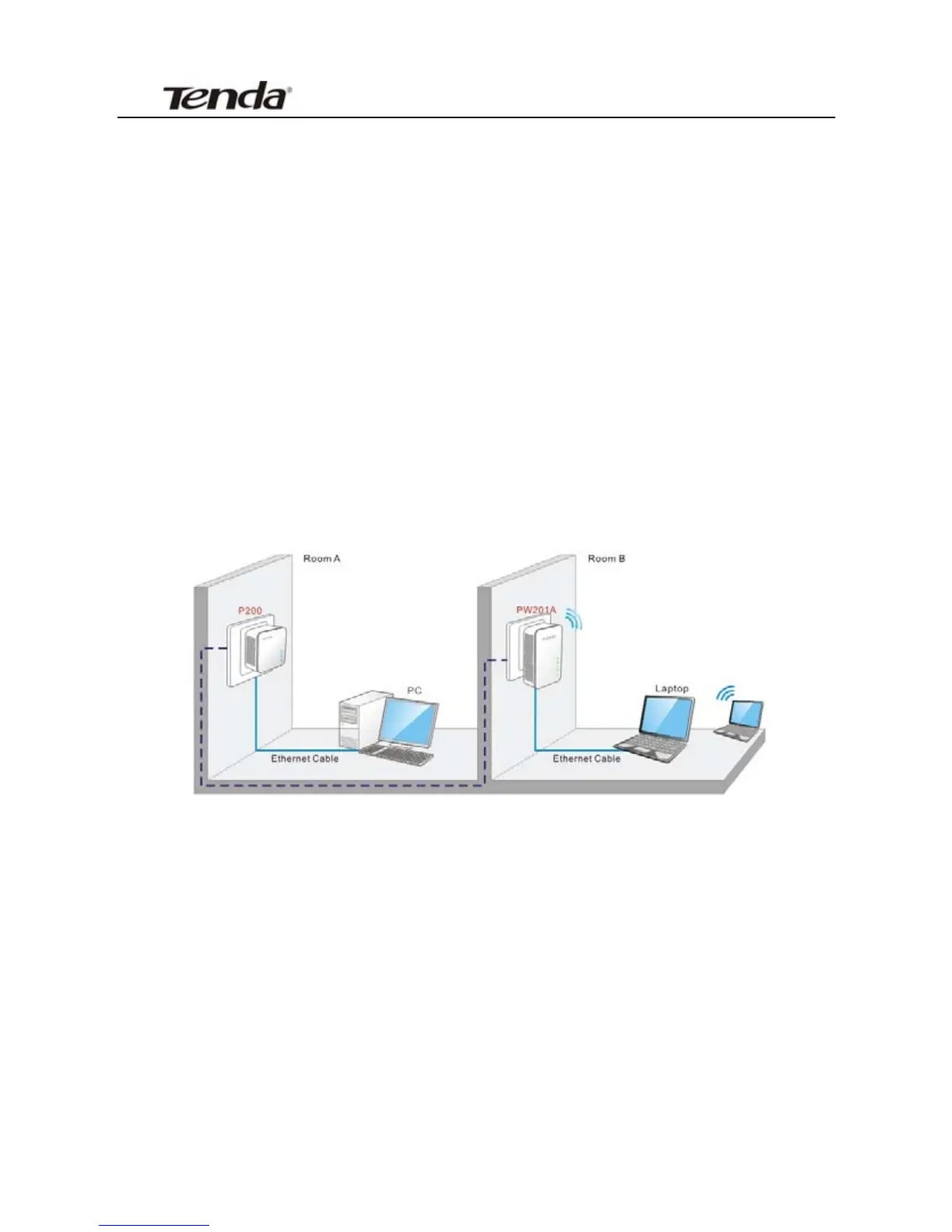

Figure 1-3 Establish a Powerline Network
Method 2
Connect Powerline Network to Internet. Connect a Powerline adapter,
say, Tenda P200, to an Internet-enabled ADSL Modem Router using an
Ethernet cable; plug the PW201A into another wall outlet within the same
13

Tenda PW201A Specifications

General

Power plug	-
Ethernet LAN	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
PowerLine standard	HomePlug AV
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Security algorithms	128-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Built-in power socket	No
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN (RJ-45) ports	1
Ethernet LAN interface type	Fast Ethernet
WLAN data transfer rates supported	300 Mbit/s
Certification	FCC
Product color	White
LED indicators	LAN, Power
Sustainability certificates	RoHS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85171800

Weight and Dimensions

Depth	94 mm
Width	60 mm
Height	48 mm
