Tenda PW201A User Manual

PW201A Wireless N Powerline AP User Guide

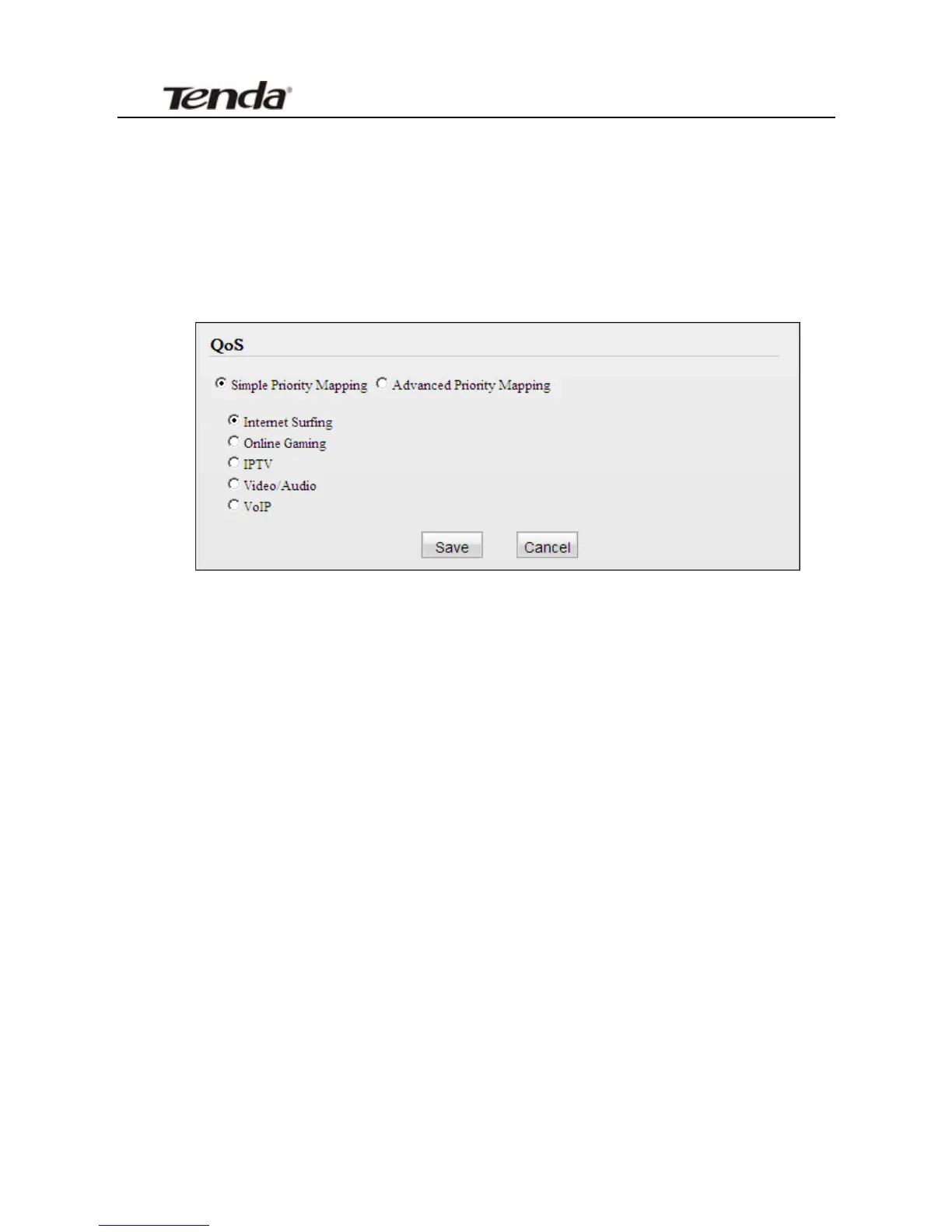

7.3.1 Simple Priority Mapping
This section allows you to quickly set any option among Surfing, IPTV,
Video/Audio, VOIP and Games to the highest priority. By default, Surfing is
prioritized.
¾ Surfing: Select it to prioritize HTTP data and improve Internet surfing
experience. Note: Applications/services such as web video and web
gaming, etc, which use HTTP protocol, will also be prioritized.
¾ Games: Select it to prioritize and smooth gaming traffic. As there are
too many games to be all included in the device QoS engine. So
please note that not all gaming traffic can be processed with
precedence.
¾ 7IPTV ： Select it to prioritize IPTV data. The device supports
RTSP-compliant IPTV data prioritization. However, some IPTV devices
from other manufacturers may not adopt the RTSP protocol. So if the
device does not prioritize IPTV data from your IPTV device, consult
your manufacturer for the protocol and port info and send it to our
53

Tenda PW201A Specifications

General

Power plug	-
Ethernet LAN	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
PowerLine standard	HomePlug AV
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Security algorithms	128-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Built-in power socket	No
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN (RJ-45) ports	1
Ethernet LAN interface type	Fast Ethernet
WLAN data transfer rates supported	300 Mbit/s
Certification	FCC
Product color	White
LED indicators	LAN, Power
Sustainability certificates	RoHS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85171800

Weight and Dimensions

Depth	94 mm
Width	60 mm
Height	48 mm
