Tenda PW201A User Manual

PW201A Wireless N Powerline AP User Guide
Note:
Selecting Open WEP, Shared WEP or WPA-PSK will automatically
disable the WPS encryption while selecting None, WPA2-PSK or Mixed
WPA/WPA2-PSK will automatically enable the WPS encryption.

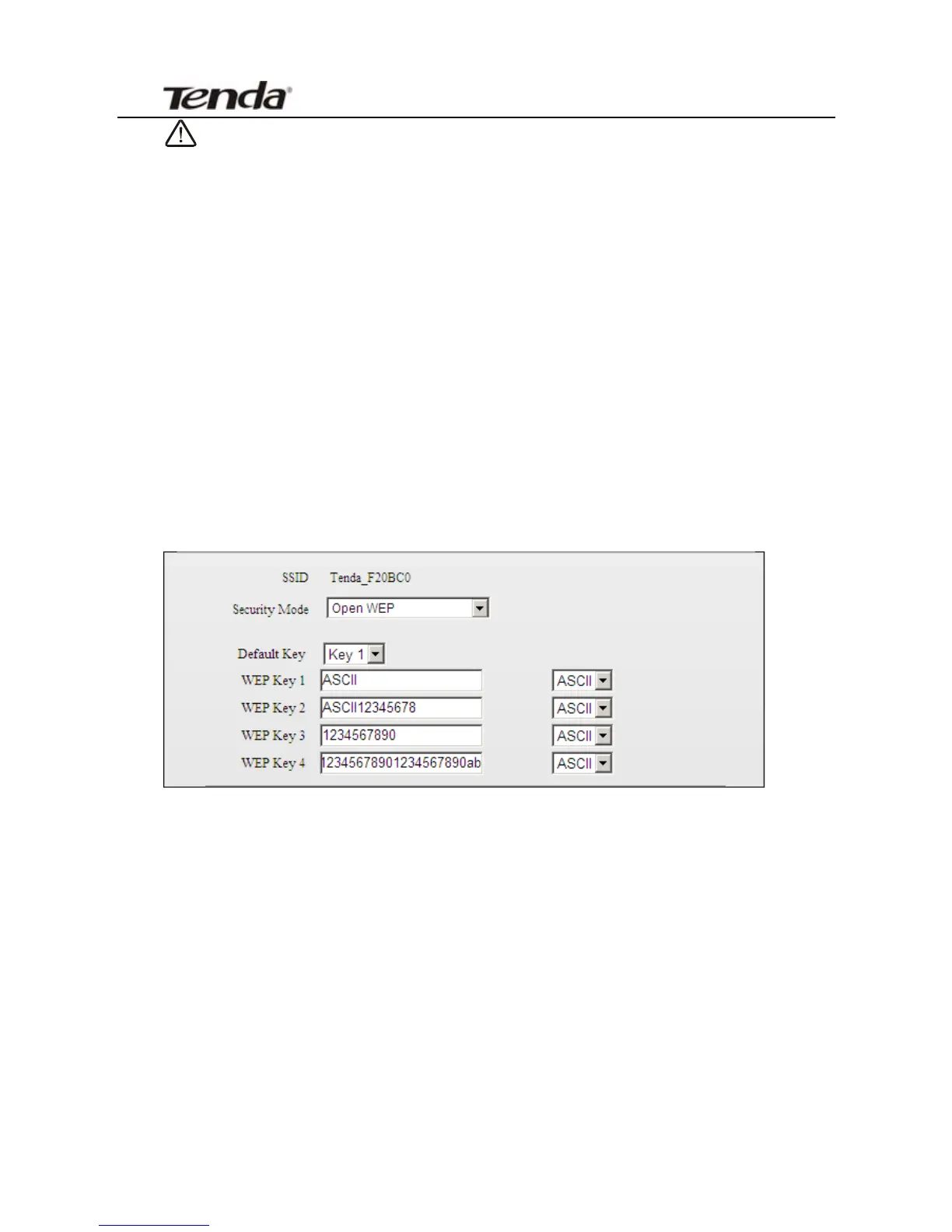

6.2.1 WEP
WEP is intended to provide data confidentiality comparable to that of a
traditional wired network.
Two methods of authentication can be used with WEP: Open System
authentication and Shared Key authentication.
¾ Security Mode: Select a proper security mode from the drop-down list.
¾ Default Key: Select a key from the preset keys 1-4 for current use.
¾ Default Key: Select a key from the preset keys 1-4 for current use.
¾ WEP Key: Select ASCII or Hex. ASCII: When selected, define a WEP
key of 5 or 13 ASCII characters;
Hex: When selected, define a WEP key of 10 or 26 hex characters.
37

Tenda PW201A Specifications

General

Power plug	-
Ethernet LAN	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
PowerLine standard	HomePlug AV
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Security algorithms	128-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Built-in power socket	No
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN (RJ-45) ports	1
Ethernet LAN interface type	Fast Ethernet
WLAN data transfer rates supported	300 Mbit/s
Certification	FCC
Product color	White
LED indicators	LAN, Power
Sustainability certificates	RoHS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85171800

Weight and Dimensions

Depth	94 mm
Width	60 mm
Height	48 mm
