Tenda PW201A User Manual

PW201A Wireless N Powerline AP User Guide

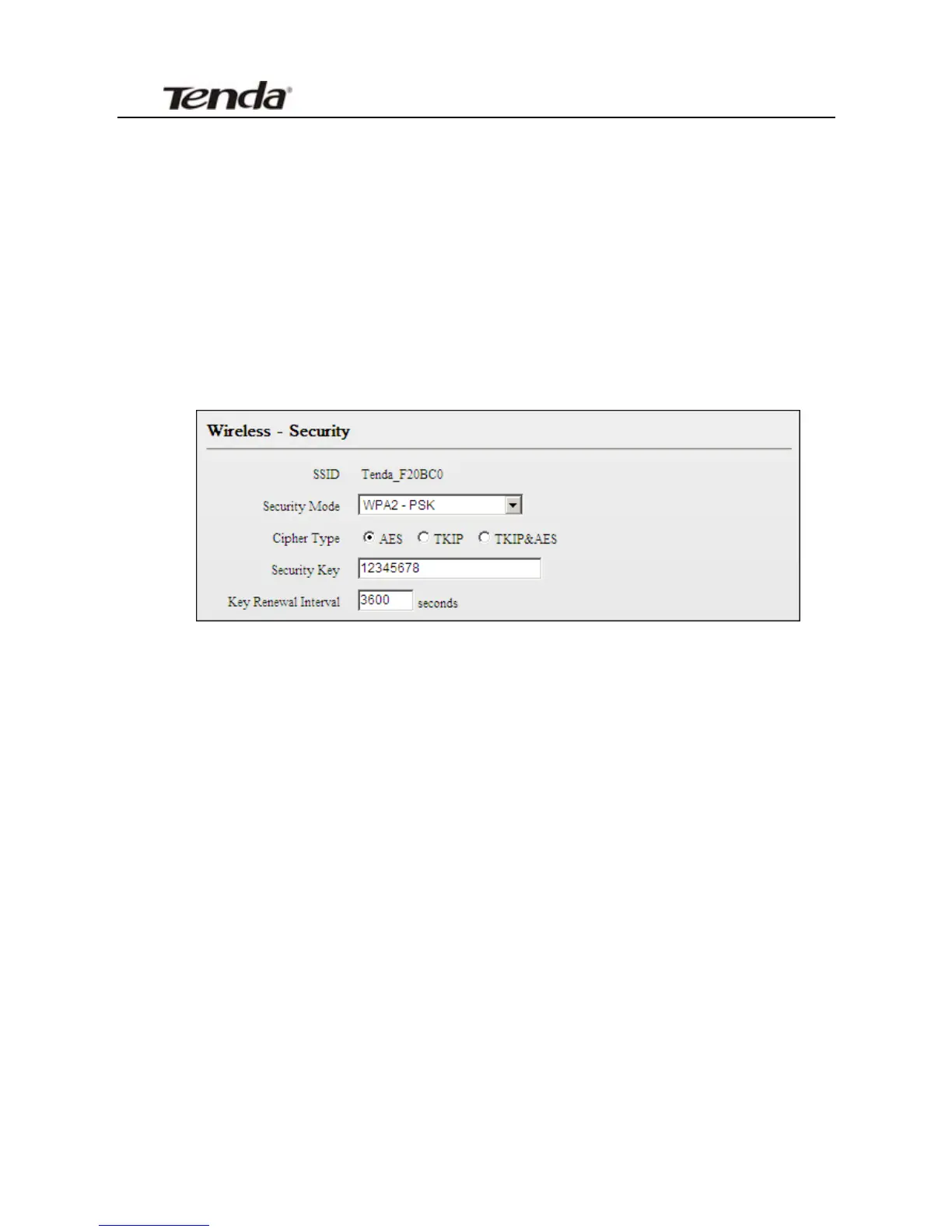

6.2.3 WPA2-PSK
The later WPA2 protocol features compliance with the full IEEE 802.11i
standard and uses Advanced Encryption Standard (AES) in addition to
TKIP encryption protocol to guarantee better security than that provided by
WEP or WPA.
¾ Cipher Type: Select AES (advanced encryption standard), TKIP
(temporary key integrity protocol) or TKIP &AES.
¾ Security Key: Enter a security key, which must be between 8-63 ASCII
characters long or 64 HEX characters long.
¾ Key Renewal Interval: Specify a valid time interval for the key to be
updated. Do not change the default value unless necessary.
6.3 Wireless Access Control
The MAC-based Wireless Access Control feature can be used to allow
or disallow clients to connect to your wireless network.
39

Tenda PW201A Specifications

General

Power plug	-
Ethernet LAN	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
PowerLine standard	HomePlug AV
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Security algorithms	128-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Built-in power socket	No
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN (RJ-45) ports	1
Ethernet LAN interface type	Fast Ethernet
WLAN data transfer rates supported	300 Mbit/s
Certification	FCC
Product color	White
LED indicators	LAN, Power
Sustainability certificates	RoHS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85171800

Weight and Dimensions

Depth	94 mm
Width	60 mm
Height	48 mm
