Tenda PW201A User Manual

PW201A Wireless N Powerline AP User Guide
1. For security purpose, it is highly recommended that you change
Device's default login password.
2. If you unfortunately forget the new password/user name, press
the hardware WPS/RST button for 6-10 seconds to reset Device.

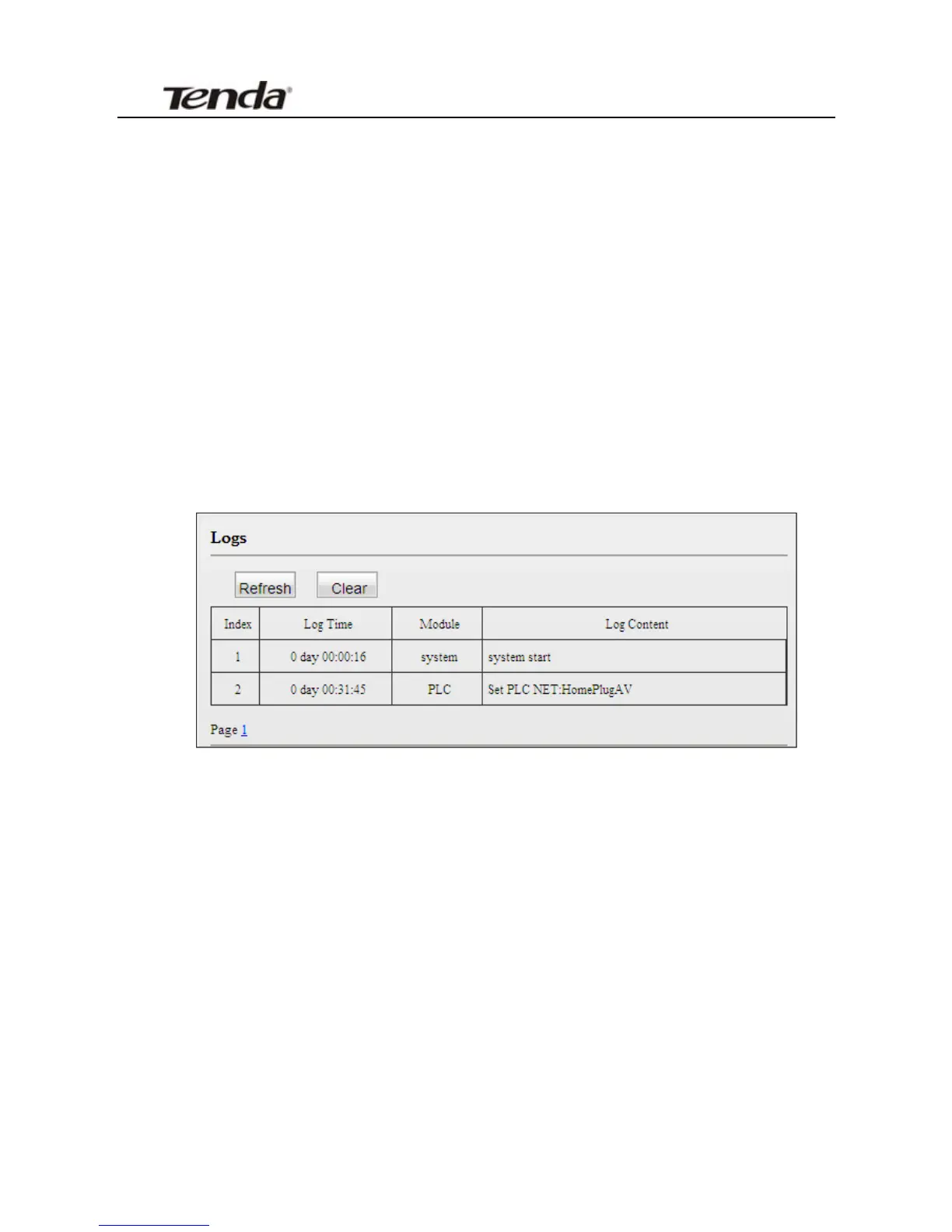

8.5 Syslog
The Syslog option allows you to view all events that occur upon system
startup.
¾ Index: Displays log ID.
¾ Log Time: Displays system uptime when log is made. As seen in the
screenshot above, at system uptime of "0 day 00:31:45，Device's
network name is changed to "HomePlugAV".
¾ Module: Displays the functional module of a current log entry. As seen
in the screenshot above, Device's network name change is
implemented in the PLC functional module.
¾ Log Content: Briefly describes an event occurred on the Device.
65

Tenda PW201A Specifications

General

Power plug	-
Ethernet LAN	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
PowerLine standard	HomePlug AV
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Security algorithms	128-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Built-in power socket	No
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN (RJ-45) ports	1
Ethernet LAN interface type	Fast Ethernet
WLAN data transfer rates supported	300 Mbit/s
Certification	FCC
Product color	White
LED indicators	LAN, Power
Sustainability certificates	RoHS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85171800

Weight and Dimensions

Depth	94 mm
Width	60 mm
Height	48 mm
