Tenda PW201A User Manual

PW201A Wireless N Powerline AP User Guide

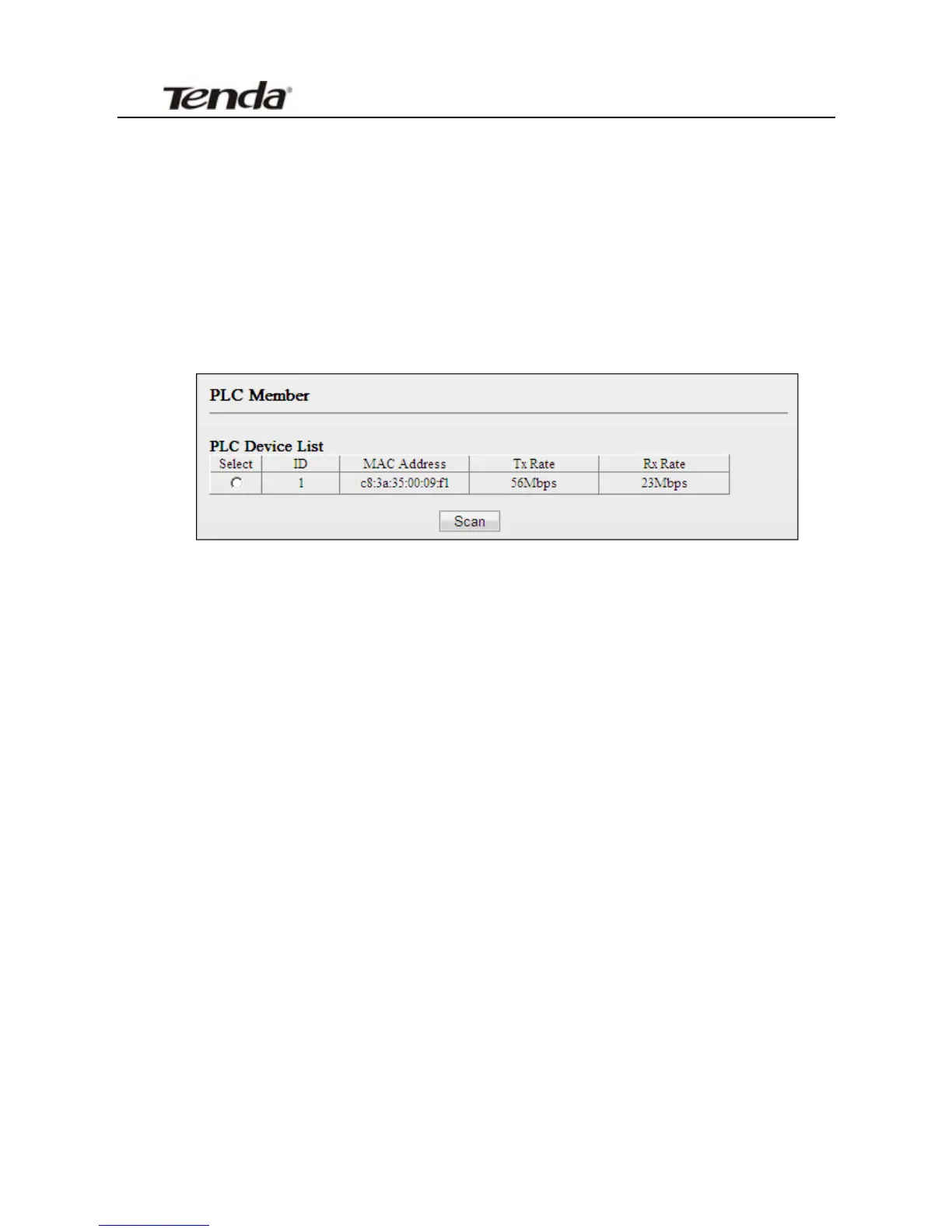

7.2.1 PLC Device List
This section displays the MAC addresses and connection rates of other
PLC devices that are connected to the Device. The PLC devices could be
Powerline adapters, Powerline APs or Powerline routers.
¾ PLC Device List: Displays only Tenda Powerline devices that are on
the same Powerline network. The PLC devices use MAC address to identify
each other.
¾ MAC Address: Displays MAC addresses of PLC devices on the
Powerline network. Each PLC device has a unique MAC address
that works as the unique identifier on the Powerline network.
¾ Tx Rate: Displays PLC Tx (transmit) rate.
¾ Rx Rate: Displays PLC Rx (receive) rate.
¾ Select: Click the "Select" radio button to automatically add
corresponding PLC device's MAC address to the MAC address field
of "Add PLC Device".
¾ Scan: Click to update current PLC device list manually. To
automatically update the list, simply reload the web page.
49

Tenda PW201A Specifications

General

Power plug	-
Ethernet LAN	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
PowerLine standard	HomePlug AV
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Security algorithms	128-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Built-in power socket	No
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN (RJ-45) ports	1
Ethernet LAN interface type	Fast Ethernet
WLAN data transfer rates supported	300 Mbit/s
Certification	FCC
Product color	White
LED indicators	LAN, Power
Sustainability certificates	RoHS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85171800

Weight and Dimensions

Depth	94 mm
Width	60 mm
Height	48 mm
