Tenda PW201A User Manual

PW201A Wireless N Powerline AP User Guide
Chapter 9 Pair Button
The Device provides 128-bit AES encryption method. This section
presents how to use the Pair hardware button to quickly create a secure
Powerline network.
2 or more Tenda Powerline devices under a single electricity meter will
interconnect to create an unencrypted public network automatically using
the same network name of HomePlugAV.

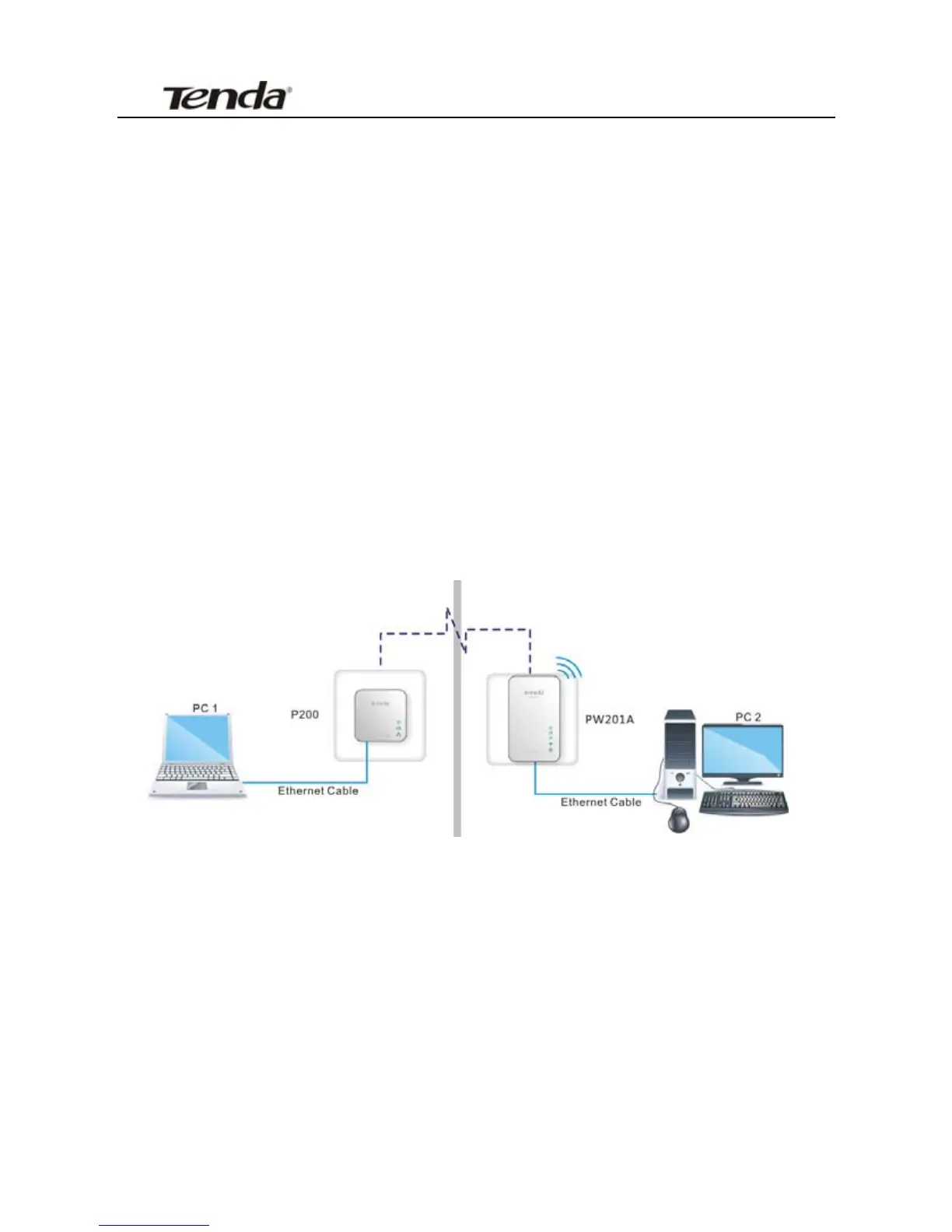

To create an encrypted private connection between 2 Tenda Powerline
devices, do as follows (Here we use a Tenda P200 and a Tenda PW201A
for demonstration):
1. Press the Pair button on P200 for 2-3 seconds and then release it.
The Power LED on P200 starts blinking, which indicates the P200 is ready
for pair auto-negotiation.
2. Within 2 minutes upon releasing the P200’s Pair button, press the
Pair button on PW201A for 1-3 seconds and then release it. The PLC LED
67

Tenda PW201A Specifications

General

Power plug	-
Ethernet LAN	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
PowerLine standard	HomePlug AV
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Security algorithms	128-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Built-in power socket	No
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN (RJ-45) ports	1
Ethernet LAN interface type	Fast Ethernet
WLAN data transfer rates supported	300 Mbit/s
Certification	FCC
Product color	White
LED indicators	LAN, Power
Sustainability certificates	RoHS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85171800

Weight and Dimensions

Depth	94 mm
Width	60 mm
Height	48 mm
