PW201A Wireless N Powerline AP User Guide
¾ Network Name: Displays Device's network name.
¾ Device Password: Displays Device's password.
¾ PLC MAC Address: Displays Device's PLC MAC address.

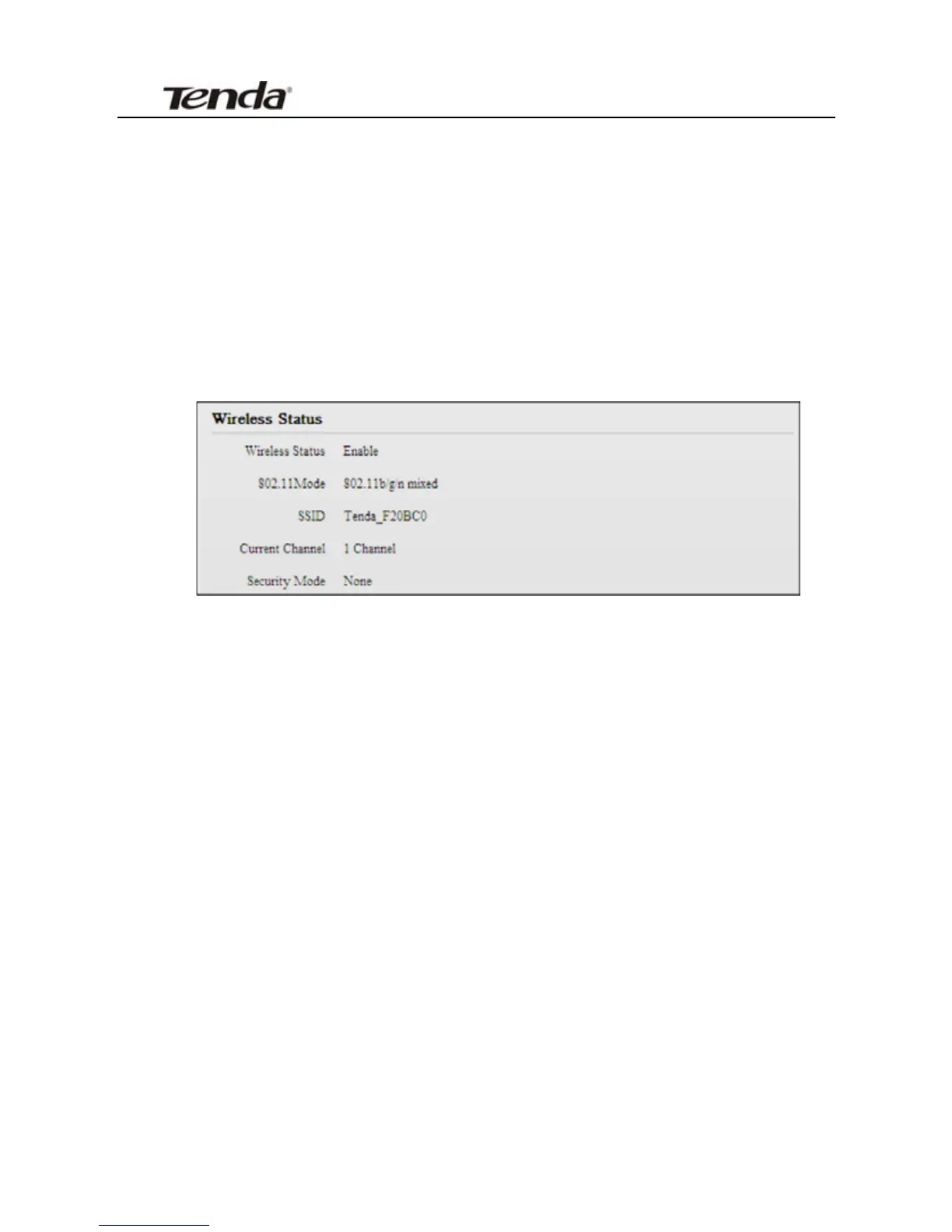

4.3 Wireless Status
¾ Wireless Status: Displays whether wireless is enabled on the
Device.
¾ 802.11 Mode: Displays current network mode.
¾ SSID: Displays Device's wireless network name.
¾ Current Channel: Displays the channel on which Device is
currently operating.
¾ Security Mode: Displays the security mode enabled on the
Device.
30

Tenda PW201A Specifications

General

Power plug	-
Ethernet LAN	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
PowerLine standard	HomePlug AV
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Security algorithms	128-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Built-in power socket	No
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN (RJ-45) ports	1
Ethernet LAN interface type	Fast Ethernet
WLAN data transfer rates supported	300 Mbit/s
Certification	FCC
Product color	White
LED indicators	LAN, Power
Sustainability certificates	RoHS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85171800

Weight and Dimensions

Depth	94 mm
Width	60 mm
Height	48 mm
