Tenda PW201A User Manual

PW201A Wireless N Powerline AP User Guide
on the PW201A starts blinking, which indicates the PW201A is ready for
pair auto-negotiation..
3. Observe the two PLC device’s LED status. When the Power LED
displays a solid light and the PLC LED blinks rapidly, it indicates an
encrypted private Powerline network is successfully created.

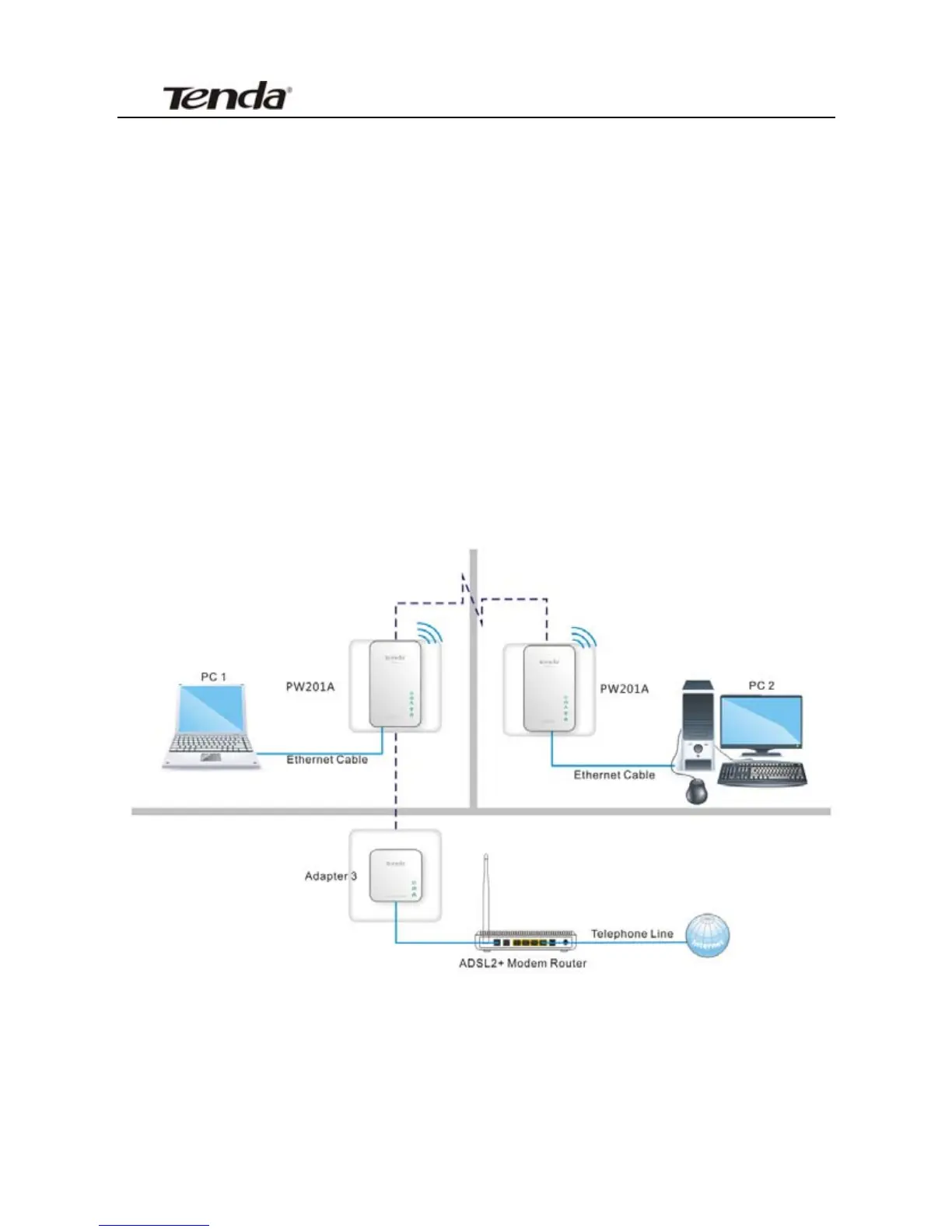

How to add more Powerline devices to the existing private network
Now that the PW201A (say PW201A-1) and P200 has created a network,
say Network1, and you’re trying to add a second PW201A (say PW201A-2)
to this network, do as follows:
68

Tenda PW201A Specifications

General

Power plug	-
Ethernet LAN	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
PowerLine standard	HomePlug AV
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Security algorithms	128-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Built-in power socket	No
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN (RJ-45) ports	1
Ethernet LAN interface type	Fast Ethernet
WLAN data transfer rates supported	300 Mbit/s
Certification	FCC
Product color	White
LED indicators	LAN, Power
Sustainability certificates	RoHS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85171800

Weight and Dimensions

Depth	94 mm
Width	60 mm
Height	48 mm
