Tenda PW201A User Manual

PW201A Wireless N Powerline AP User Guide

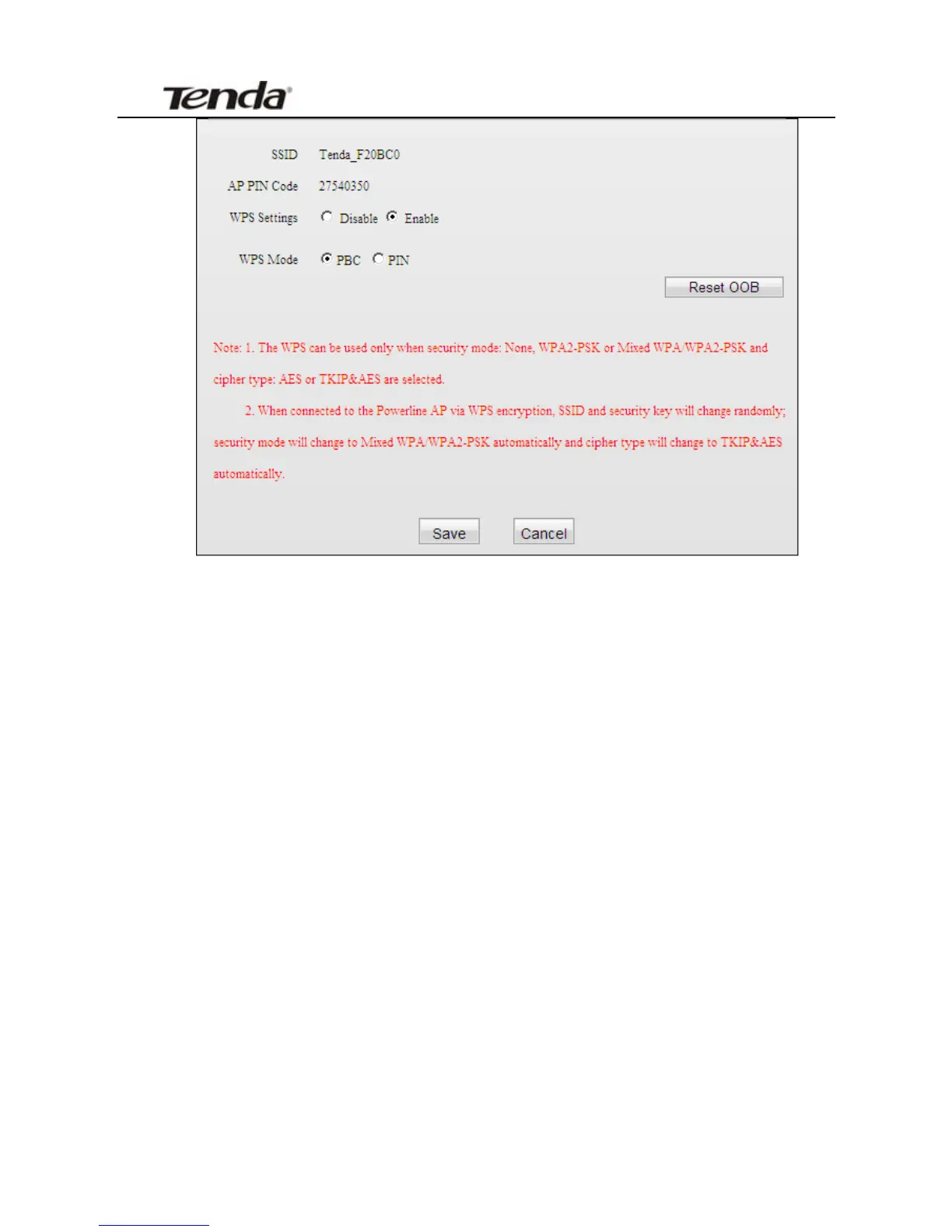

¾ SSID: Displays Device's current SSID.
¾ AP PIN Code: Displays Device's PIN code; this option is not
configurable.
¾ WPS: Select to enable/disable the WPS feature. This option is disabled
by default.
¾ WPS Mode: Select PBC (Push-Button Configuration) or PIN.
¾ PBC: To use the PBC option, select it and click "Save"; or press the
WPS hardware button on Device's back panel for about one second
while enabling WPS >PBC on the intended client simultaneously.
Operation Instructions:
Press the WPS button for one second and the WPS LED starts blinking.
Within 2 minutes thereafter, enable WPS >PBC on the intended wireless
43

Tenda PW201A Specifications

General

Power plug	-
Ethernet LAN	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
PowerLine standard	HomePlug AV
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Security algorithms	128-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Built-in power socket	No
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN (RJ-45) ports	1
Ethernet LAN interface type	Fast Ethernet
WLAN data transfer rates supported	300 Mbit/s
Certification	FCC
Product color	White
LED indicators	LAN, Power
Sustainability certificates	RoHS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85171800

Weight and Dimensions

Depth	94 mm
Width	60 mm
Height	48 mm
