Tenda PW201A User Manual

PW201A Wireless N Powerline AP User Guide

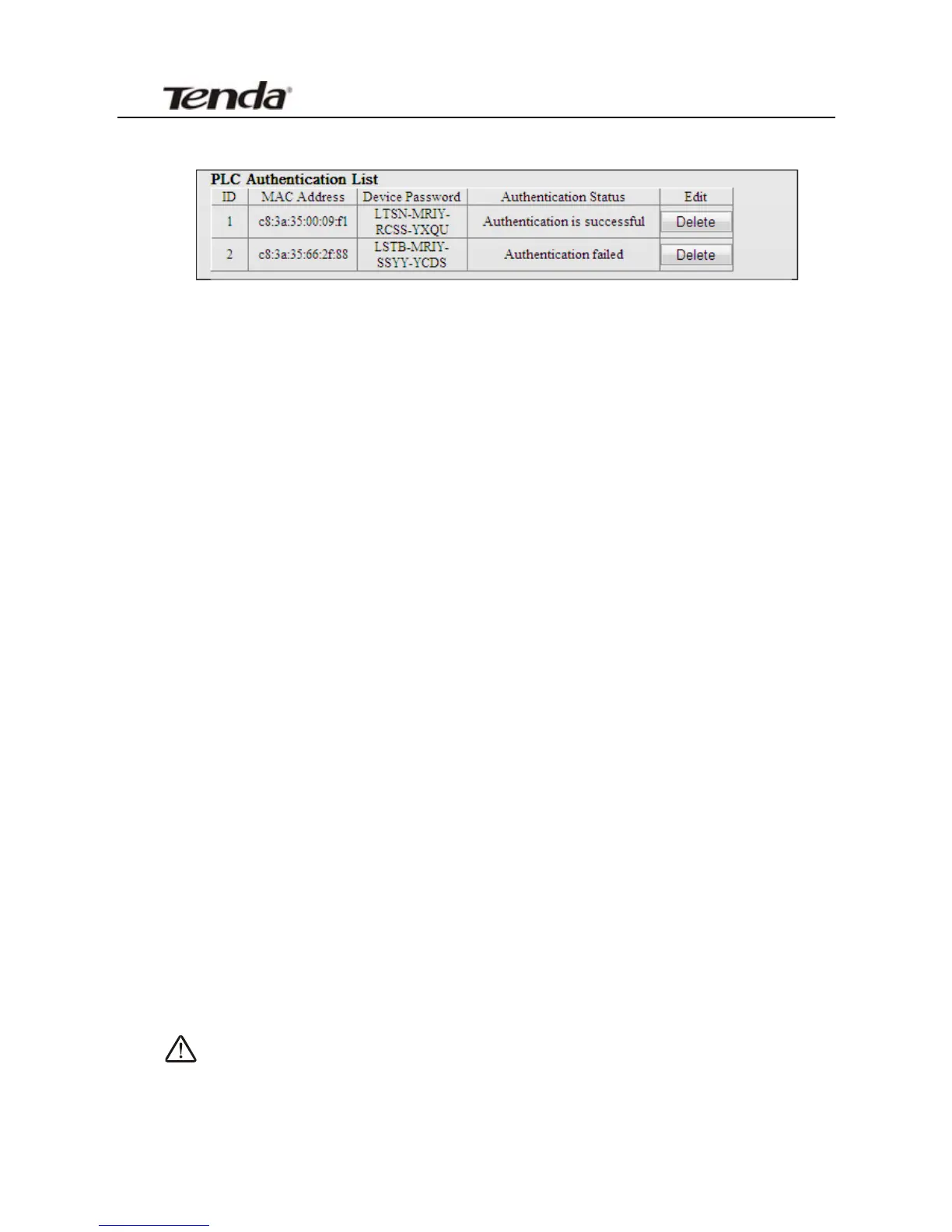

¾ MAC Address: Displays the MAC address entered when you add the
PLC device.
¾ Device Password: Displays the Device Password entered when you
add the PLC device.
¾ Authentication Status: Displays whether authentication has passed. To
pass authentication, below requirements must be met: a). You must
provide a correct MAC address and a correct Device Password for the
intended PLC device; b). The intended PLC device must be currently
connected with the Device. Otherwise, authentication fails. As seen in
above screenshot, the first PLC device passed authentication because
both its MAC address and Device Password entered are correct, and it
is currently on the Powerline network. While the second PLC device
failed because its Device Password entered is wrong. However, the
first PLC device will not be able to pass authentication if you disconnect
it from the current Powerline network (say, disconnect it from power
supply or change its network name).
¾ Click "Delete" to delete a corresponding entry.
Note:
51

Tenda PW201A Specifications

General

Power plug	-
Ethernet LAN	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
PowerLine standard	HomePlug AV
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Security algorithms	128-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Built-in power socket	No
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN (RJ-45) ports	1
Ethernet LAN interface type	Fast Ethernet
WLAN data transfer rates supported	300 Mbit/s
Certification	FCC
Product color	White
LED indicators	LAN, Power
Sustainability certificates	RoHS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85171800

Weight and Dimensions

Depth	94 mm
Width	60 mm
Height	48 mm
