Operations Manual United Kingdom 1-October-2013
TA9 & 10 Tier 4 Page 4 - 13
Description 4
With the switch in position 0 all lights are OFF. In position 1 the side and tail lights are ON. In
position 2 the head lights, side lights and tail lights are ON.
(1) Direction Indicators
The direction indicators are controlled by a 3 position switch, Figure 4.11. refers.

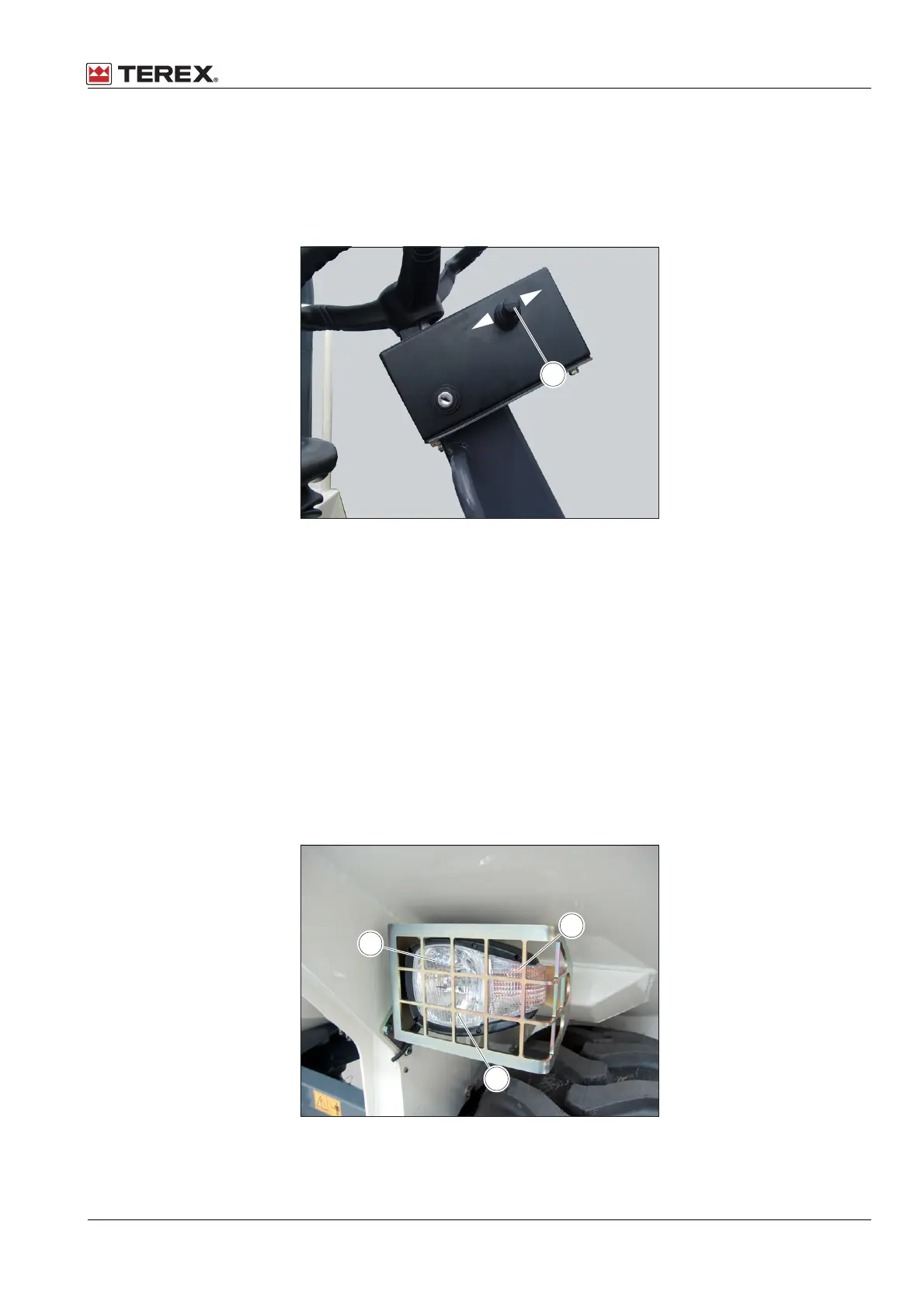

Figure 4.11. - Direction Indicator Switch
1. Direction Indicator switch
with the switch in the OFF position (0) the indicators do not operate. Move the switch forward (A)
and the Left Hand indicators will operate. Move the switch backwards (B) and the Right Hand
indicators will operate. Returning the switch to the off position will turn the indicators off.
(2) Brake Lights
The brake light switch is activated when the brake pedal is pressed and the lights will come on.
The lights go out when the pedal is released.
(3) Front Light Unit
Each front light unit contains a head light, side light and indicator light. Figure 4.12. refers.
Figure 4.12. - Front Light Unit
1. Headlight
