9.10 Engine Oil
The oil level is checked using the dip stick - Figure 9.? refers. The engine oil level must always
be between the MIN and MAX on the dip stick. If the engine is warm switch OFF and leave for 5
Minutes before checking levels.
(1) To Check the Engine Oil Level
Refer to Figure 9.6 The machine must be on firm, level ground when checking levels.

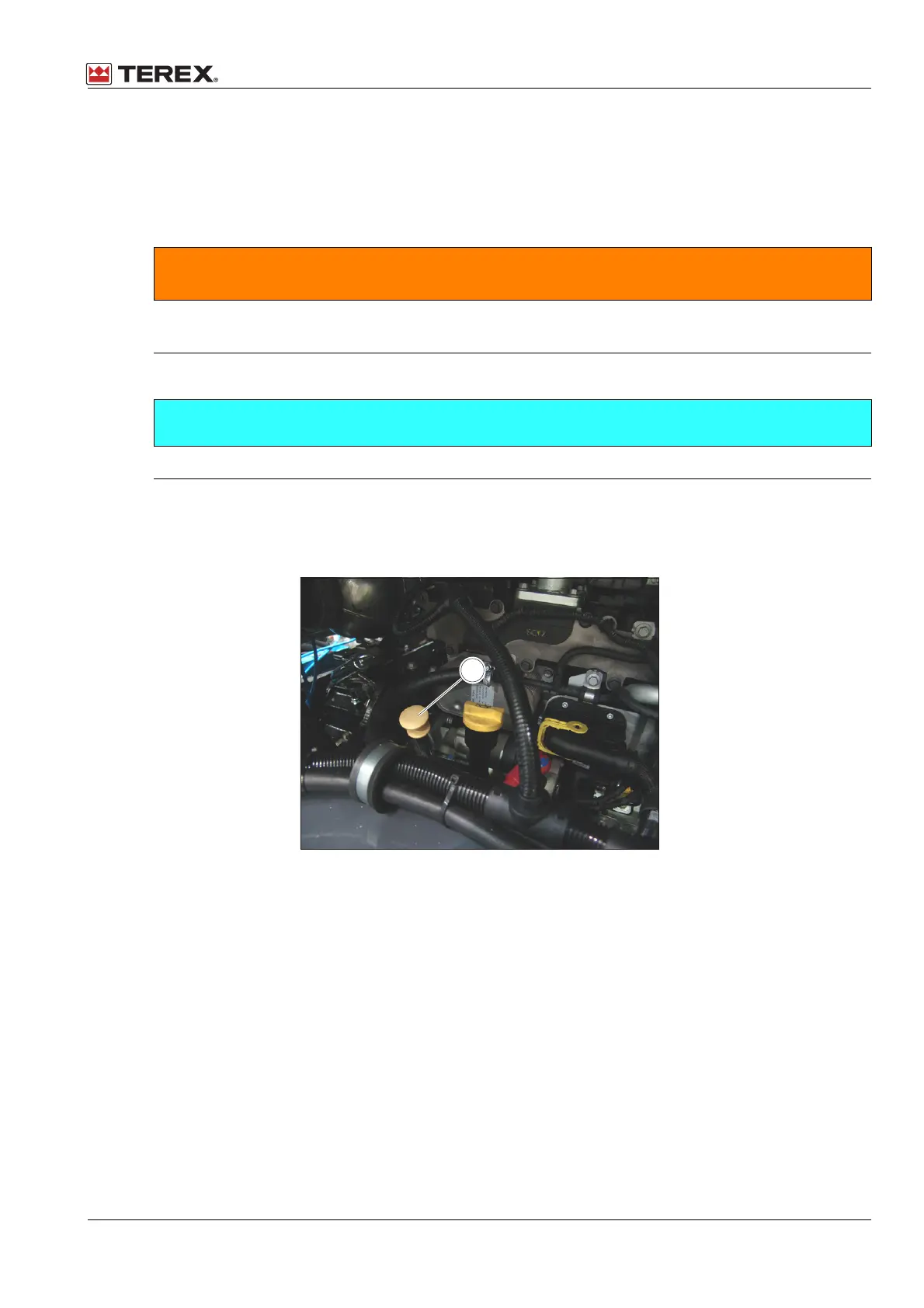

Figure 9.6 - Engine Oil Dipstick
1. Engine Dip Stick
bWARNING
NEVER check the oil level or add oil with the engine running. Be careful of hot lubricating oil.
Danger of scalding.
NOTICE
Low lubricating oil level can damage the engine. Over filling with oil can damage the engine.
