Description 4
1-October-2013 United Kingdom Operations Manual
Page 4 - 16 TA9 & 10 Tier 4
4.16 Gear Selector Lever

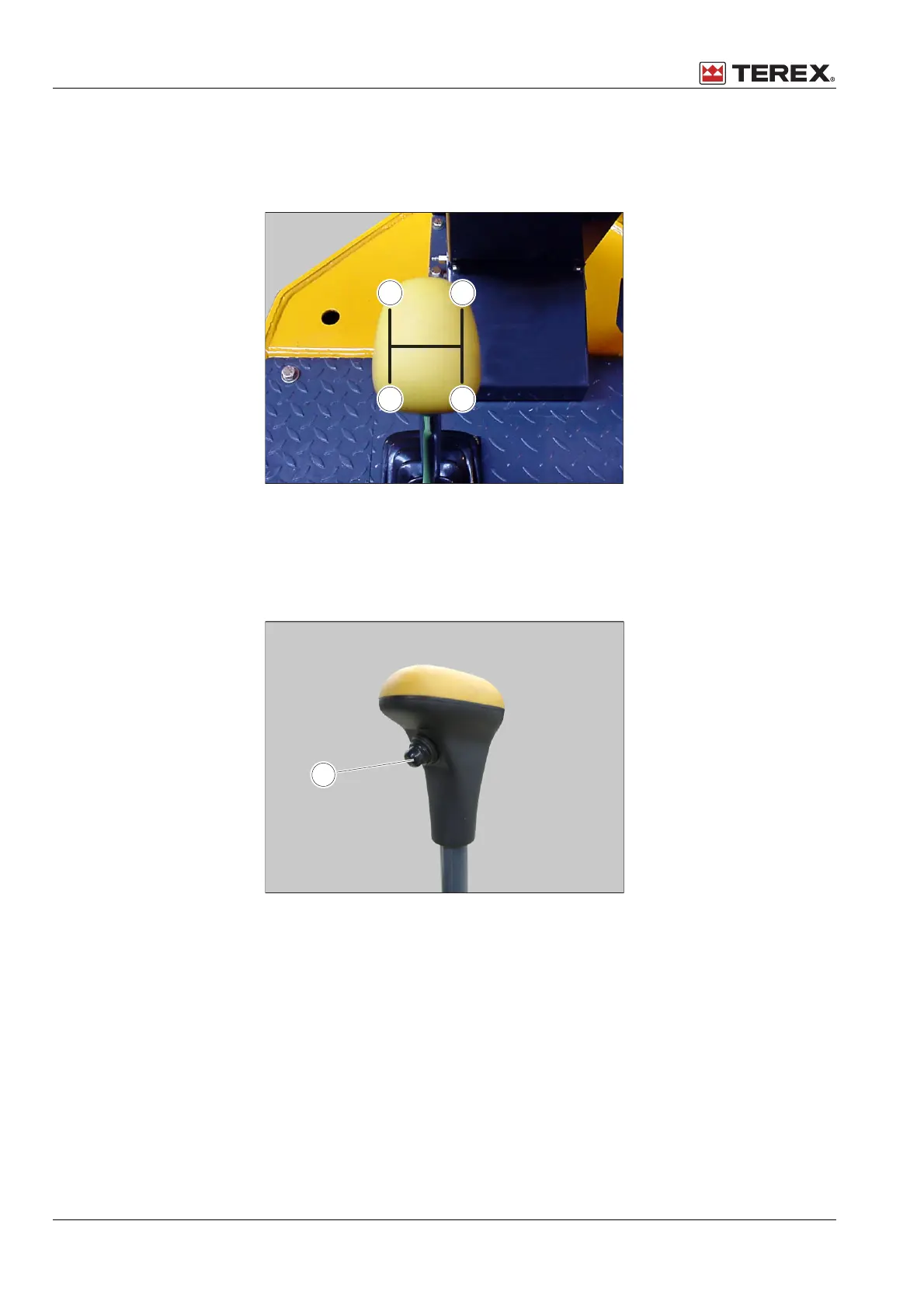

The lever, Figure 4.17. allows any of the gearbox’s 4 speed ratios to be selected. The lever
moves in a conventional H pattern.
Figure 4.17. Gear Change Pattern
An interrupt button on the knob, Figure 4.18. refers is depressed and held while changing from
one gear to another. Once the gear is selected the button is released. This button is the
equivalent to a clutch pedal on a conventional vehicle.
Figure 4.18. - Gear Selector Lever
1. Interrupt Button
4.17 Parking Brake
A lever to the side of the drivers seat; Figure 4.19. refers activates a calliper operating on a disc
on the output shaft of the gearbox to provide braking.
