Transportation 5
1-October-2013 United Kingdom Operations Manual
Page 5 - 2 TA9 & 10 Tier 4
5.3 Articulation Lock
The articulation lock, Figure 5.1 prevents chassis movement during transport or maintenance.

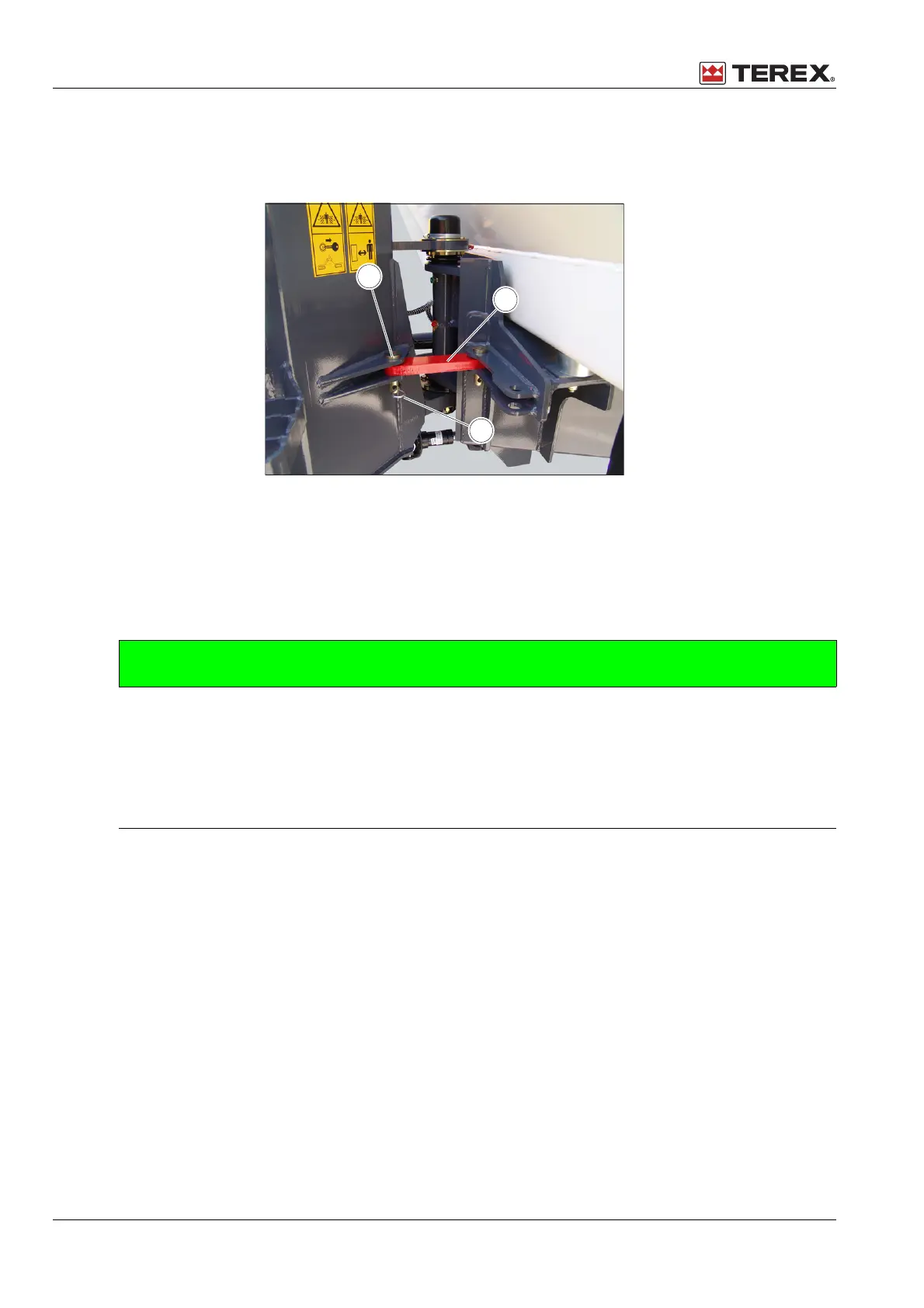

Figure 5.1 - Articulation Lock
1. Pin
2. Lock Bar
3. Grip Clip
PROCEDURE
1 To fit the lock bar remove the grip clip and pin from the lock bar in its storage position.
2 Pivot the locking bar around until the holes in the bar are in line with the holes in rear
chassis bracket.
3 It may be necessary to move the steering wheel slightly to align the holes
4 Re fit the pin through the holes and secure with the grip clip.
