Operations Manual United Kingdom 1-October-2013
TA9 & 10 Tier 4 Page 5 - 3
Transportation 5
5.5 Tie Down Points
Tie down points are provided at the front and rear of the machine. The chains, straps, ropes etc.
must be attached to the machine’s front tie down points, Figure 5.2, and rear tie down points,
Figure 5.3 (each side of machine).

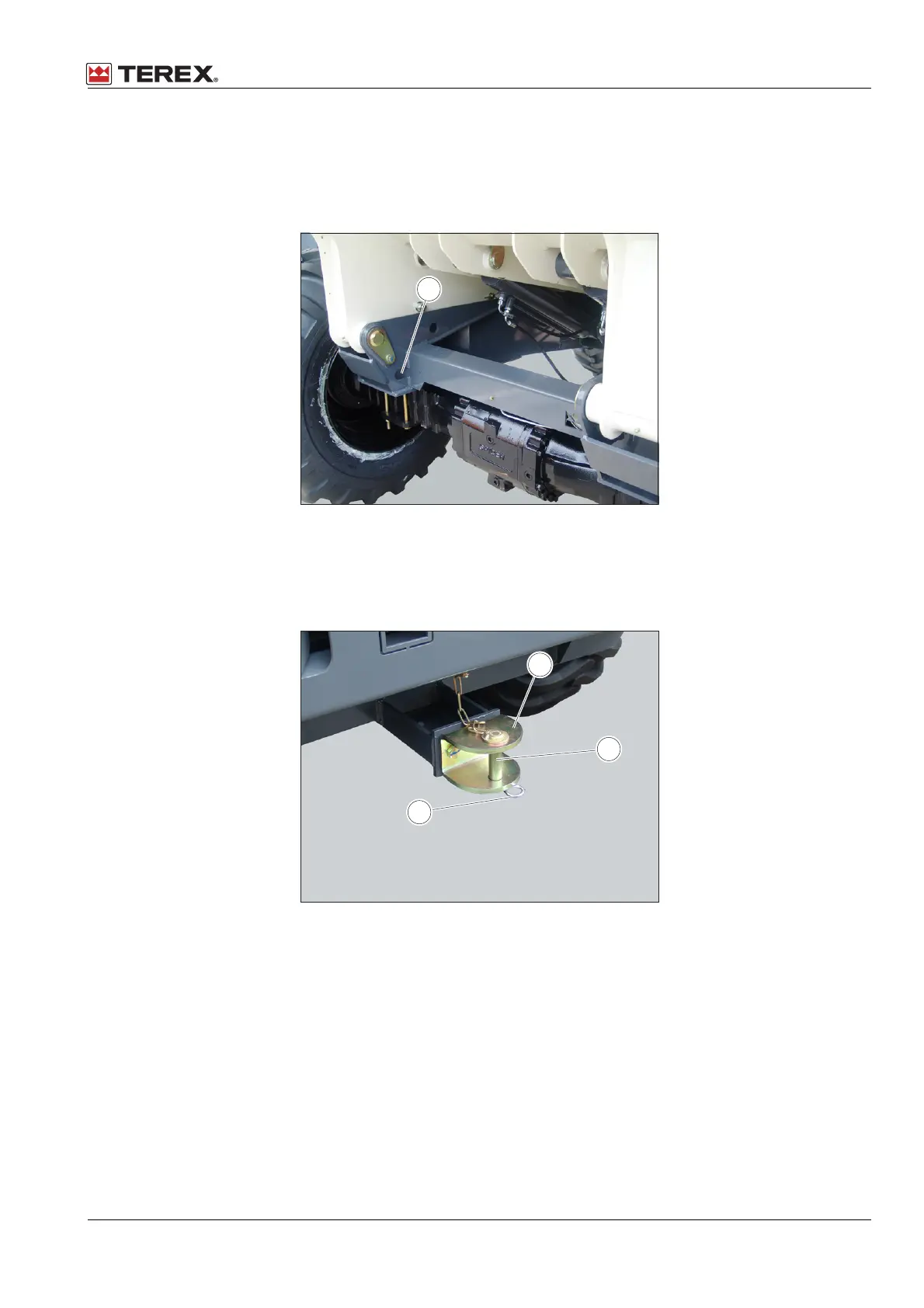

Figure 5.2 - Front Tie Down Point
1. Tie Down Point
The rear towing eye is utilized as the rear tie down point.
Figure 5.3 - Rear Tie Down Point
1. Towing Eye
2. Pin
3. R Clip
