Operations Manual United Kingdom 1-June-2014
TA9 & 10 Tier 4 Page 7 - 3
Standard Operating Procedures 7
7.5 Seat
The seat is adjustable for operator comfort. The adjustments allow the seat to be moved forwards
and backwards, the back of the seat may be tipped forwards and backwards and the seat
suspension may be adjusted to the weight of the operator - Figure 3 Refers.

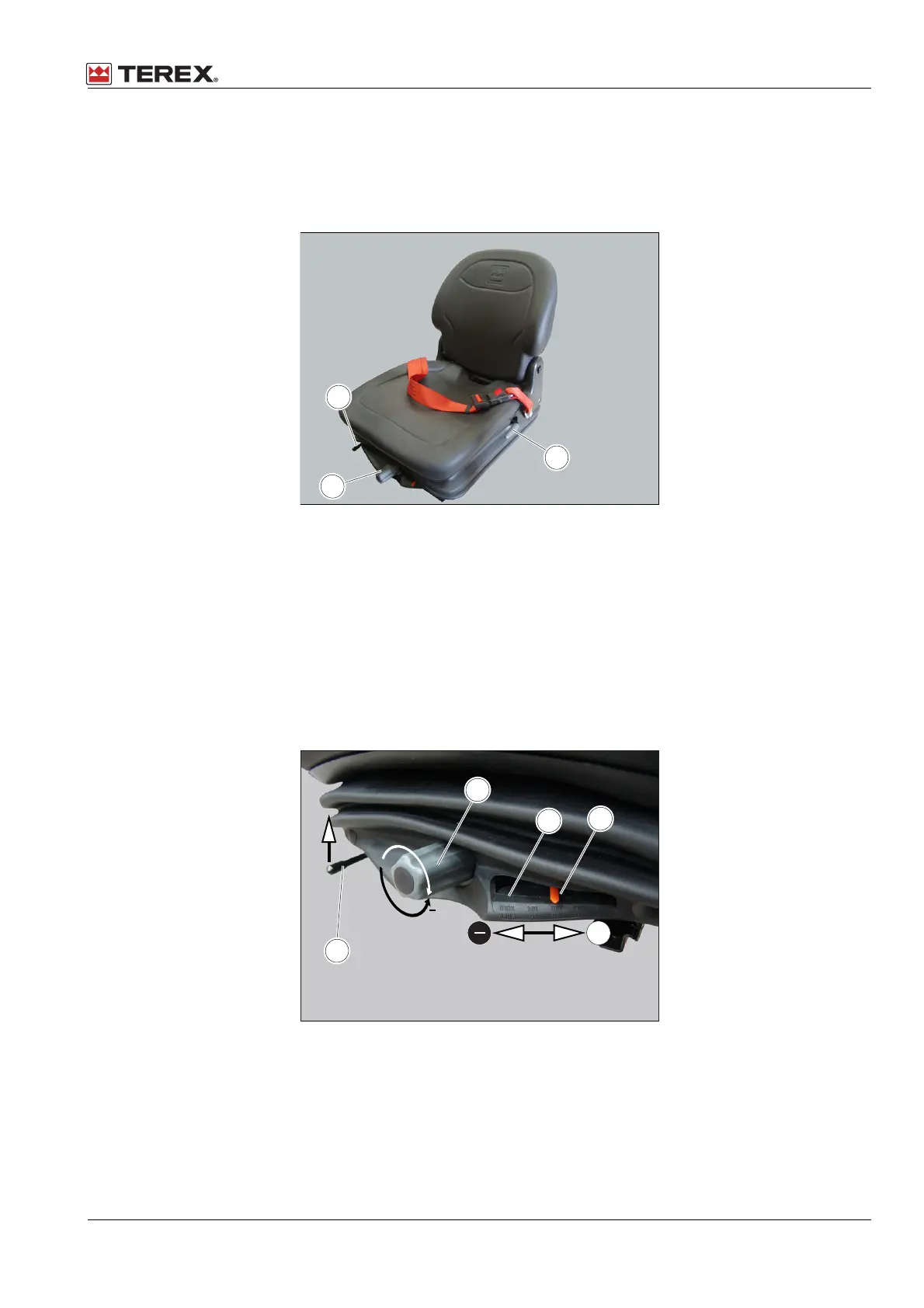

Figure 7.3. - Operators Seat
1. Fore and aft movement
2. Back Rest Angle Adjustment
3. Weight Adjustment
(1) Seat Adjustment
Refer to Figure 7.4. Lifting the lever (1) allows the seat to move forwards or backwards to suit the
leg length of the operator. When the lever is released the seat is locked in position.
Figure 7.4. - Seat Adjustment
1. Fore and aft adjustment
2. Weight adjustment knob
3. Scale
4. Pointer
