Operations Manual United Kingdom 1-October-2013
TA9 & 10 Tier 4 Page 9 - 9
Maintenance 9
9.11 Synchro Shuttle Gearbox
The level is checked using the dipstick/filler - figure 9.9. Refers.

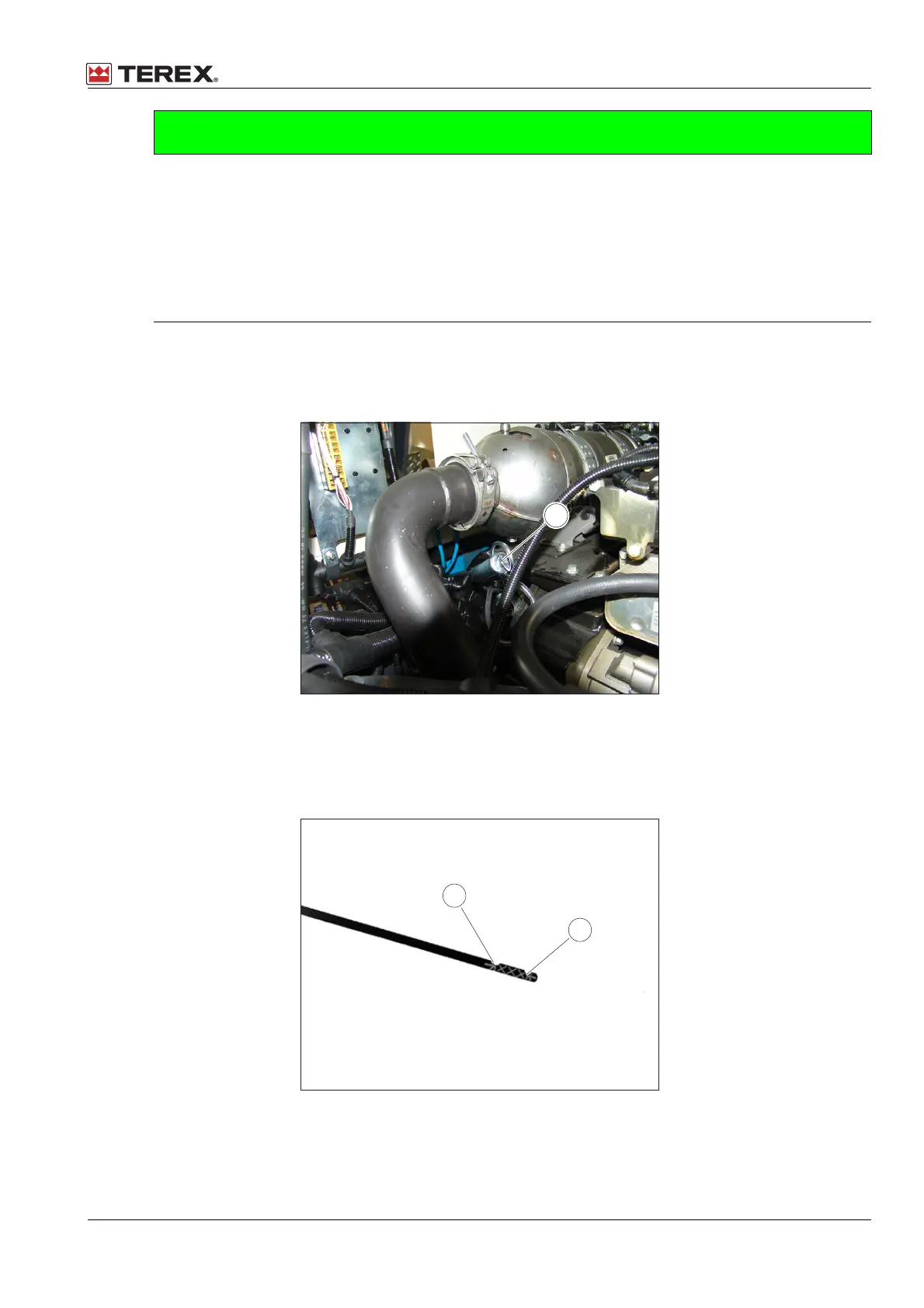

Figure 9.9. - Gearbox Dipstick/Filler
1. Dipstick Filler
With the oil warm the level should be between MIN and MAX on the dipstick Figure 9.10. refers.
Figure 9.10. - Dipstick MIN and MAX Marks.
1. MAX Mark
2, MIN Mark
PROCEDURE
1. Remove the filler cap.
2. Add oil of the recommended grade.
3. Check the dipstick at regular intervals and make sure the level does not exceed the MAX
mark.
4. When the oil reaches the required level replace the filler cap.
5. Wipe up any spilt oil.
