Operations Manual United Kingdom 1-October-2013
TA9 & 10 Tier 4 Page 4 - 7
Description 4
4.9 Control Panel and Switch Functions

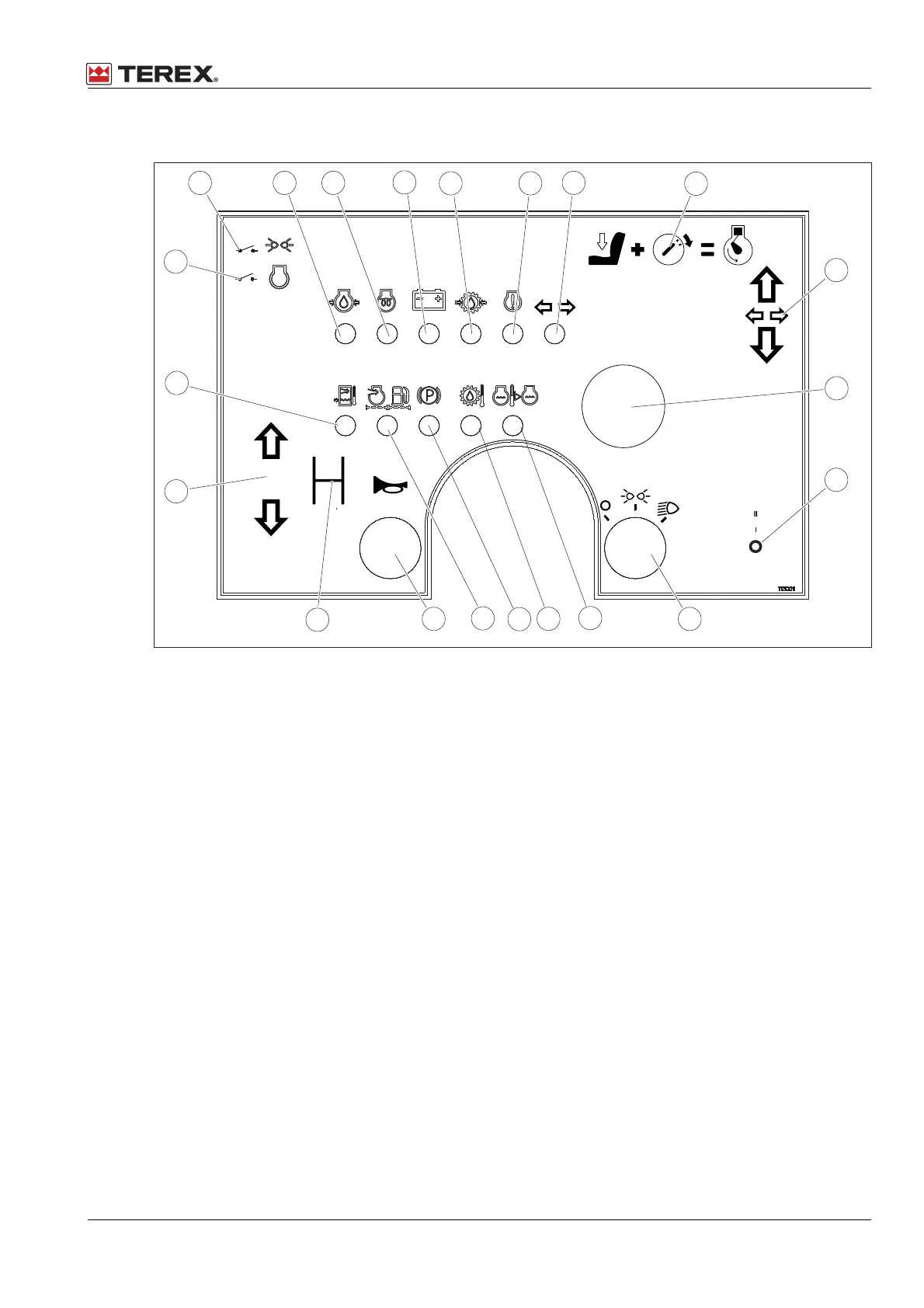

Figure 4.6 Control Panel
1. Circuit Breaker - Lighting
2. Warning Light - Engine Oil Pressure Low
3. Warning Light - Pre Heat
4. Warning Light - Battery Charge
5. Warning Light - Transmission Oil Pressure - Low
6. Warning Light - Engine Fault
7. Warning Light - Direction Indicators (When Fitted)
8. Instruction - Seat Interlock
9. Instruction - Indicator Switch (When Fitted)
10. Switch - Hazard Warning Lights (When fitted)
11. Instruction - Start Key Switch
12. Instruction - Highway Lighting (When Fitted)
13. Warning Light - Coolant Temperature/Low Coolant
14. Warning Light - Transmission Temperature - High
15. Warning Light - Parking Brake - On
16. Warning Light - Air Filter/Fuel Filter Blocked
17. Instruction - Horn
18. Instruction - Gear Change Lever
19. Instruction - Forward/Reverse Switch
20. Warning Light - Charge Air Temperature
21. Circuit Breaker - Engine Electrical System
24
3
1
N
30A
20A
1
2
3
4
5
6
7
8
9
11
12
13
14
15
16
17
18
21
19
20
COV00515
10
To Next Page
