Description 4
1-October-2013 United Kingdom Operations Manual
Page 4 - 8 TA9 & 10 Tier 4

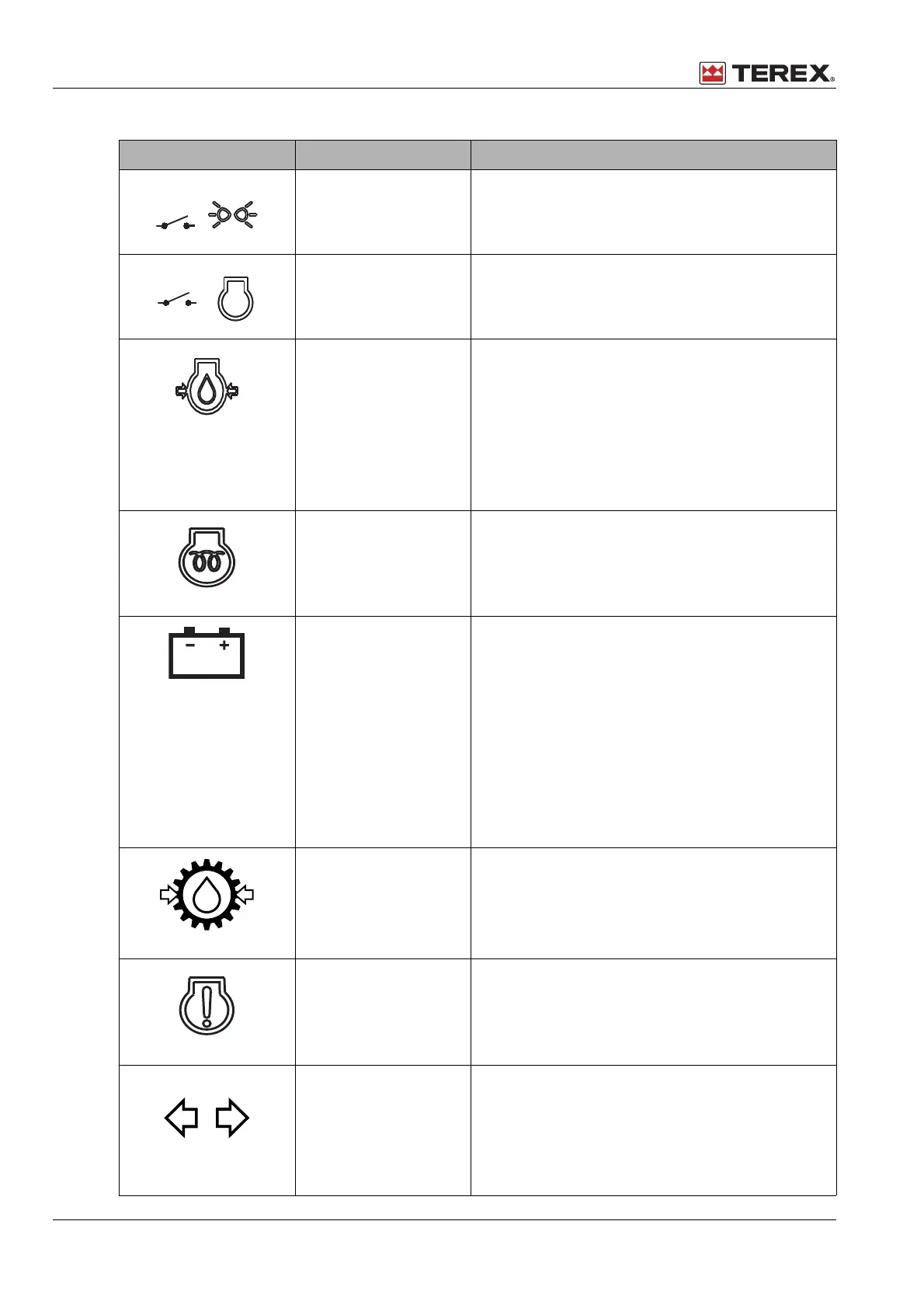

Table 4.1 - Control Panel Symbol Description
Symbol Name Description
Circuit breaker -
Lighting Circuit
30A Lights (if fitted)
Circuit breakers protect the machines electrical
system.
Circuit breaker -
Engine Electrical
System
20A Engine Electrical System
Circuit breakers protect the machines electrical
system.
Warning Light -
Engine Oil Pressure
This warning light will come on when the start
switch is turned to the RUN position.
When the engine starts, the light should go off.
If the light fails to go off or come on when the
engine is running -
STOP THE ENGINE IMMEDIATELY
Do not use the machine until the fault has been
rectified.
Warning Light -
Engine Pre Heat.
This warning light will come on when the start
key is in the pre - heat position. When the light
goes out the engine can be started.
Warning Light -
Battery Charge
The battery charge warning light should only
come on when the start switch is ON and the
engine is not running. When the engine starts
and full RPM is selected the charge warning
light goes off. The warning light should stay off
while the engine is running.
If the light fails to go off when the engine is
running -
STOP THE ENGINE IMMEDIATELY
Do not use the machine until the fault has been
rectified.
Warning Light:-
Transmission Oil
Pressure
This light will come on when the transmission
oil pressure falls below a predetermined level
If the light comes on stop the machine
immediately and investigate the fault.
Warning Light -
Engine Fault.
If this light should come on stop the engine
immediately. Do not use the machine until the
fault has been rectified.
Warning Light -
Direction Indicator
When fitted, this light will flash when the
indicator switch is moved into the left or right
turn position.
If the light fails to perform this function, do not
use the machine until the cause has been
rectified.
To Next Page
