Operations Manual United Kingdom 1-October-2013
TA9 & 10 Tier 4 Page 4 - 9
Description 4

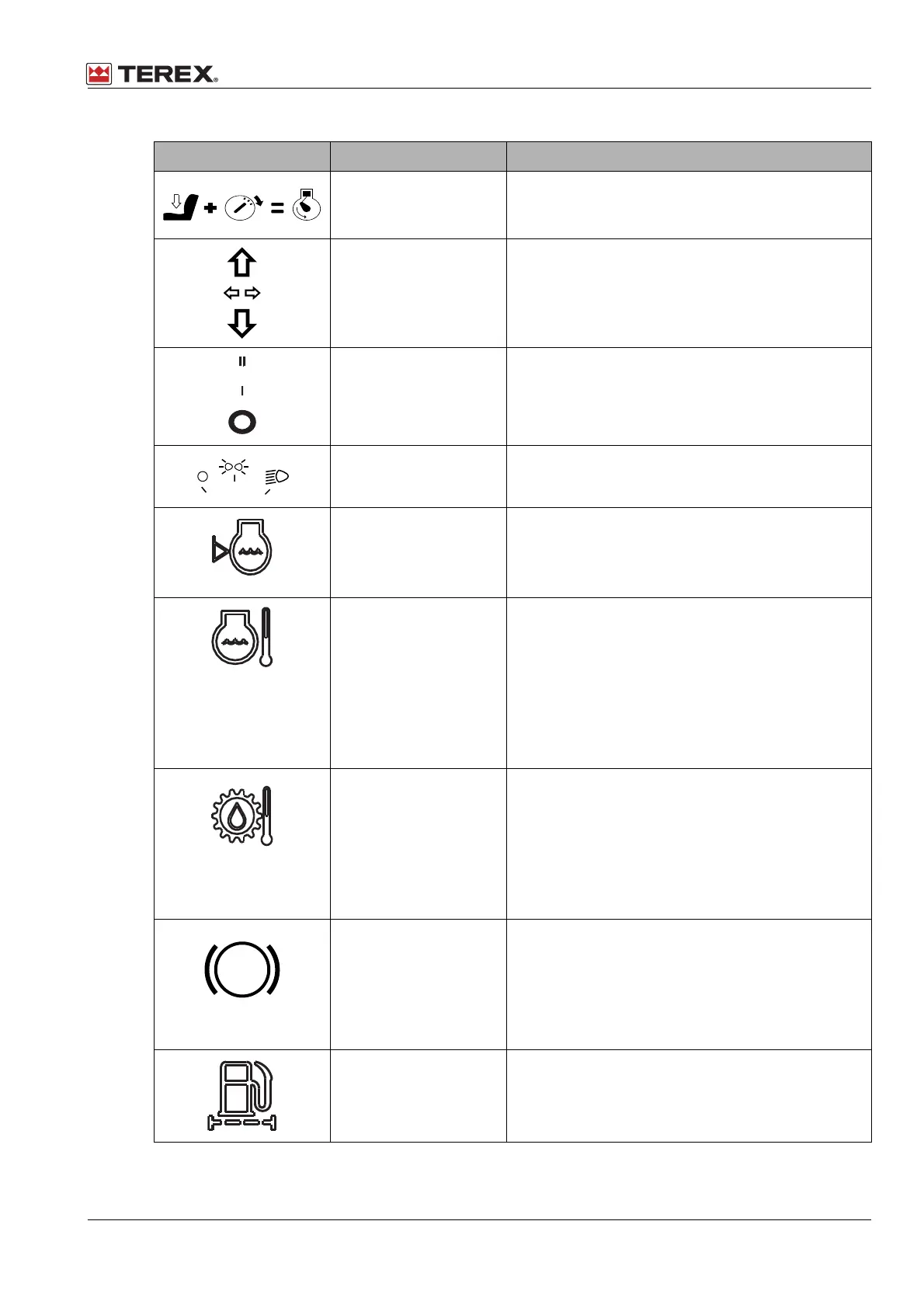

Table 4.1 - Control Panel Symbol Description (continued)
Symbol Name Description
Instruction - Engine
Starting
This symbol indicates that the operator must be
seated before the engine will start.
Instruction - Direction
Indicator Switch
When fitted, this instruction informs the
Operator in which direction to move the switch
in order to operate the LEFT and RIGHT
direction indicators
Instruction - Engine
Start Key Switch
This instruction shows the start key positions.
Instruction - Lighting
Switch - When fitted.
This switch will turn the headlights, front and
rear side lights on and off.
Warning Light -
Coolant Level
This warning light will come on when the
engine coolant level is low. If the light comes on
stop the engine, allow the system too cool and
top up the system with coolant/
Warning Light -
Coolant Temperature
The coolant temperature warning light should
only come on when the start switch is in the
RUN position and should go out when the
engine is cranked.
If the warning light comes on when the engine
is running - STOP THE ENGINE
IMMEDIATELY. Do not use the machine until
the fault has been rectified.
Warning Light -
Transmission oil
temperature high
This warning light will come on if the
transmission oil temperature exceeds a
predetermined level. An audible warning will
also sound. If the light comes on when the
engine is running:-
STOP the engine immediately.
Investigate the fault.
Warning Light:-
Parking Brake ON
This light will come on when the parking brake
is ON and the ignition switch is set to the RUN
position, an audible warning will also sound if
forward or reverse is selected. The light should
go out and the audible warning go off.when the
parking brake is released.
Warning Light -
Fuel Filter Blocked
This light will come on if the fuel filter is
blocked. Stop the engine immediately.
Investigate the fault.
P
