Description 4
1-October-2013 United Kingdom Operations Manual
Page 4 - 10 TA9 & 10 Tier 4

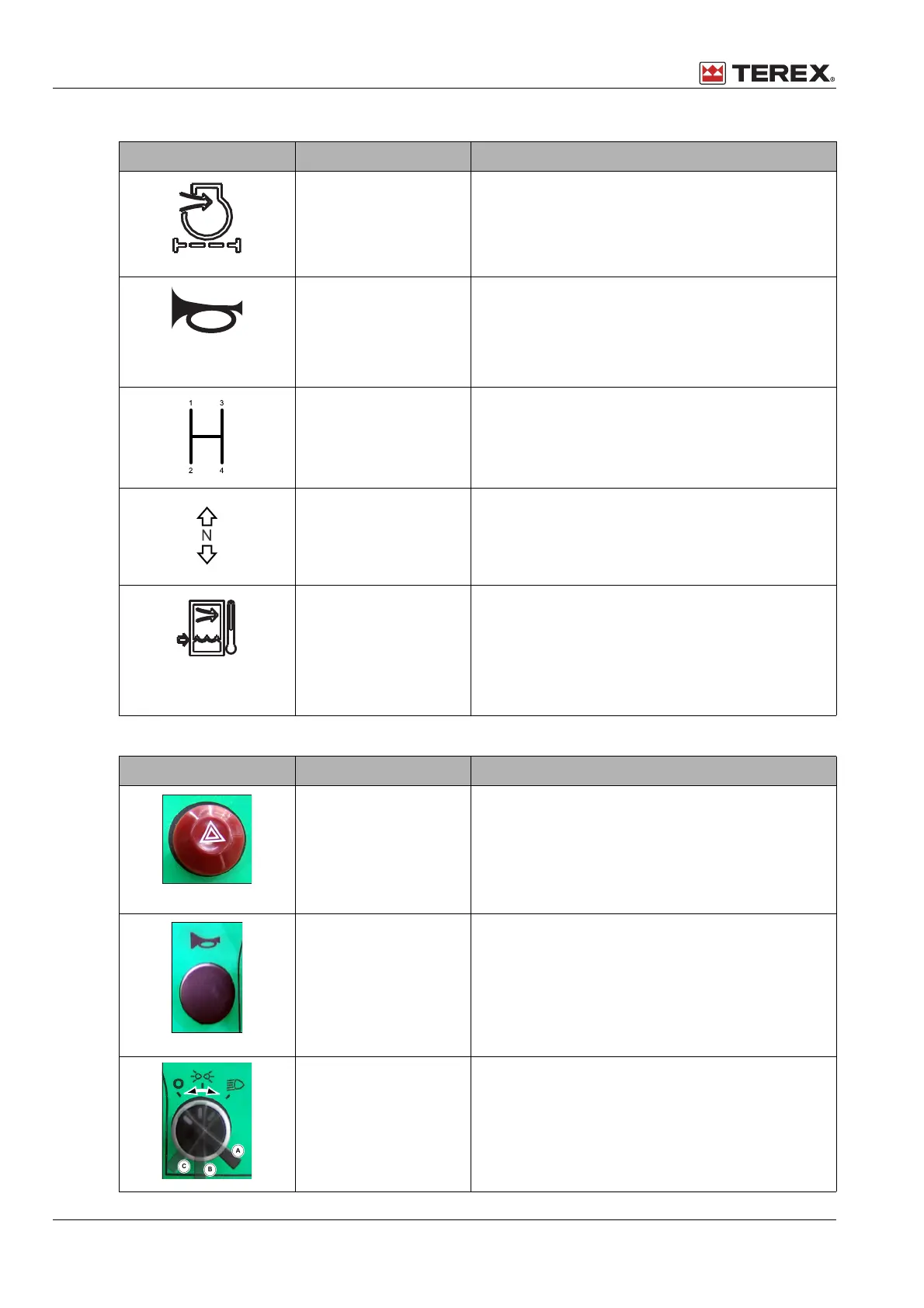

Table 4.1 - Dashboard Symbol Description (continued)
Table 4.2 - Switch Operation
Symbol Name Description
Warning Light - Air
Blockage
This warning light indicates an air filter
blockage. When the light comes on stop the
engine immediately and clean/replace the filter
Instruction - Horn
Button
This symbol indicates that by pressing the
button the horn will sound. The horn is used to
warn others and must only be used for this
purpose. Excessive use may cause others to
ignore a genuine warning.
Instruction - Gear
Lever Positions
This symbol indicates to the operator the
position the gear lever needs to be in to select
a certain gear.
Instruction - Forward /
Reverse Switch
This symbol indicates the position that the
forward/reverse switch should be set to enable
the machine to move backwards or forwards.
Warning Light -
Charge Air Cooler
Cooler Inlet Temp
This light will come on when the inlet
temperature reaches 105° C. Should the
warning be ignored and the cause not rectified
when the temperature reaches 110° C the
engine management system will de-rate the
engine to 80% power.
Switch Name Description
Hazard Light Switch Pressing the button will cause all four direction
indicator lights to begin flashing and will
continue to do so until the button is pressed
again
Horn Button When pressed, this button will cause the horn
to sound.
Light Switch Turning the switch clockwise from the OFF
position (A) to position (B) will cause the front
and rear side (marker) lights and the
registration plate lights to come on. Turning the
switch to the next position (C) will cause the
main headlights to come on.
