Technical Data
3
TC29
25
3.13 Working range for grab operatio
ns
For safety reasons, ensure that the indicated reache
s are not exceeded when the grab is full.
Danger of tilting!

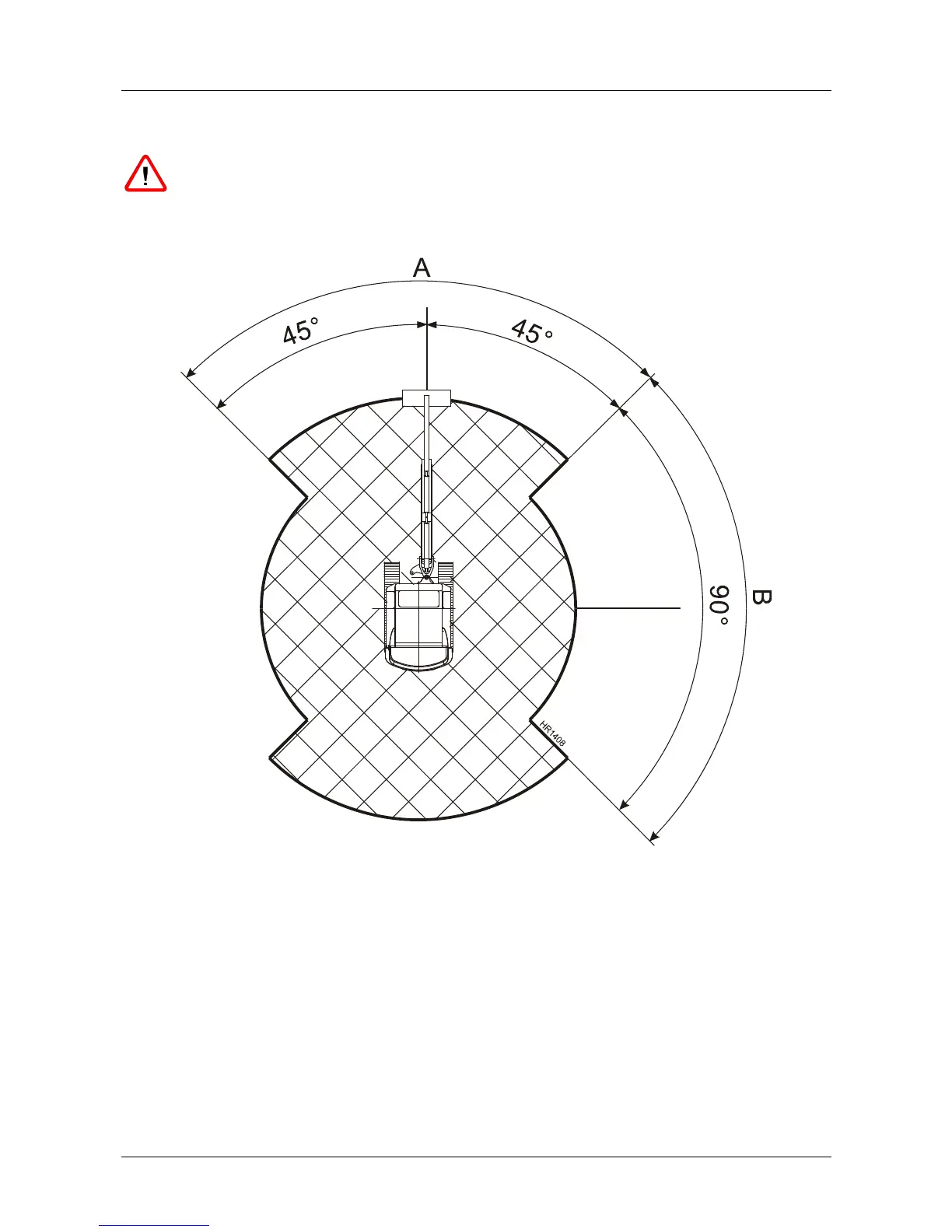

Fig. 8 Grab working range
A = max. reach
B = restricted reach
max.3.0 m
30
32
