5 Work Operation
TC29
42
5.2.4 Operation – additional control circuit
Pedal-based control
• Activate the additional control circuit using the
pedal (26/7).
Additional control circuit "1"
Fingertip control (electro-proportional control)
• Activate the additional control circuit using the
roller (26/15) on the right joystick.
• Using the potentiometer (26/17), the maximum
available oil flow can be precisely adjusted
(turning to the right increases the oil flow).
• No control function if the potentiometer (26/17)
is turned to the left as far as it will go.
Option - Additional control circuit "2"
Fingertip control (electro-proportional control)
• Activate the additional control circuit using the
roller (26/20) on the left joystick.
• Using the potentiometer (26/18), the maximum
available oil flow can be precisely adjusted
(turning to the right increases the oil flow).
• No control function if the potentiometer (26/18)
is turned to the left as far as it will go.
"Articulation" is switched to "2nd control
circuit" using the flip switch (26/33).

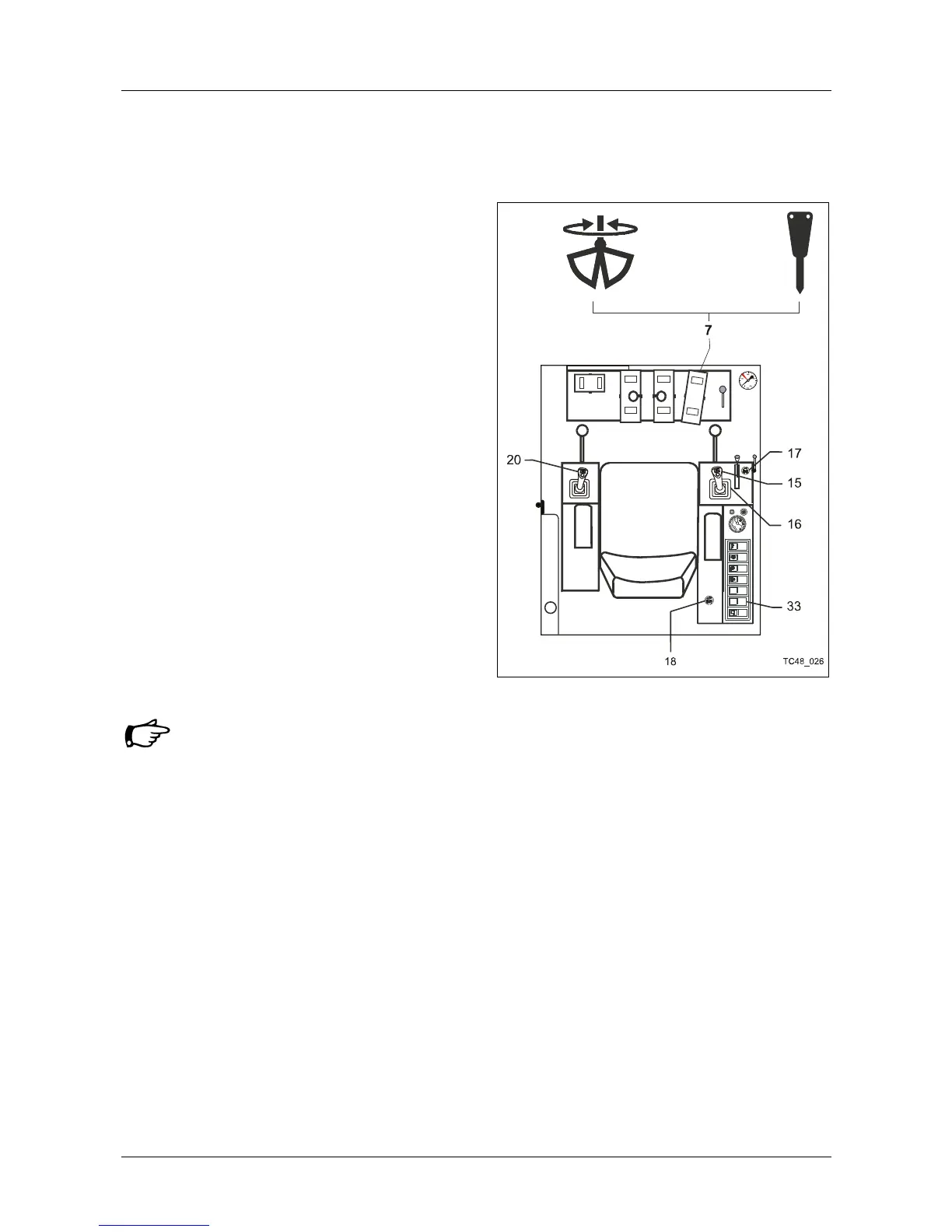

Fig. 26-Operation
